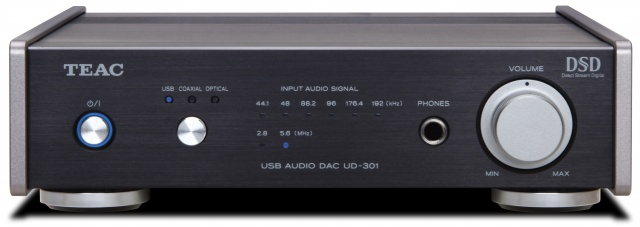

Teac UD-301
Dual Monaural Digital-To-Analog Converter

OUR PART #  UD-301

Selected Model Price: $399.99
List Price: $449.99

Save up to 11%! (Low Price Guarantee)
Select model: (shipping times are approximate)

The TEAC UD-301 is a dual monaural digital-to-analog converter. It features a dual monaural design, compatible with high-resolution DSD.

TEAC UD-301 Features:

  • 2.8 MHz / 5.6 MHz DSD native playback (via USB input)
  • 24 bit / 192 kHz PCM file playback
  • Asynchronous mode capability
  • 192 kHz up-conversion option (with On/Off selection)
  • (2) BurrBrown PCM1795 digital-to-analog converters
  • Dual monaural design
  • (2) MUSES8920 operational amplifier units
  • Dual monaural CCLC headphone output circuit
  • Toroidal core power transformer
  • Full metal housing
  • (1) USB input (USB B type)
  • (1) coaxial digital input
  • (1) optical digital input
  • (1) XLR balanced output (Fixed/Adjustable/Off)
  • (1) RCA balanced output (Fixed/Adjustable/Off)
  • Headphone output (standard stereo jack)
  • Three-pin IEC AC power socket
  • Auto Power Save function

TEAC UD-301 Specifications:

  • DAC Section
    • D/A Converter: BurrBrown PCM1795 × 2
    • Up-conversion: 192 kHz (user defeatable)
  • Digital audio inputs
    • USB:
      • Connector: USB Type B (USB 2.0)
      • Transmission mode: Asynchronous mode
      • DSD data sampling frequency: 2.8 M / 5.6 M Hz
      • PCM data sampling frequency: 32 k / 44.1 k / 48 k / 88.2 k / 96 k / 176.4 k / 192 k Hz
      • Bit rates: 16 / 24 / 32 bit
    • COAXIAL:
      • Connector: RCA jack
      • PCM data sampling frequency: 32 k / 44.1 k / 48 k / 88.2 k / 96 k / 176.4 k / 192 k Hz
      • Bit rates: 16 / 24 bit
      • Input level: 0.5 Vp - p
      • Input impedance: 75 ohms
    • OPTICAL:
      • Connector: Optical digital connector
      • PCM data sampling frequency: 32 k / 44.1 k / 48 k / 88.2 k / 96 k Hz
      • Bit rates: 16 / 24 bit
      • Input level: -24 to -14.5 dBm peak
  • Analog Audio Outputs
    • XLR:
      • Connector: XLR-3-32
      • Maximum output level: +14 dBu (1 kHz, full-scale, 10 k ohms with load, 0 dB when set)
      • Output impedance: 200 ohms
    • RCA:
      • Connector: RCA jack
      • Maximum output level: 2.0 Vrms (1 kHz, full-scale, 10 k ohms when loaded)
      • Output impedance: 100 ohms
  • Headphone Output
    • Connector: 6.3 mm (1/4") stereo phone jack
    • Maximum output: 100 mW and +100 mW (32 ohms with load, distortion rate 0.1%)
    • Compatibility impedance: 8 ohms to 600 ohms
  • Power Supply
    • USA/Canada: AC 120 V, 60 Hz
    • Europe: AC 230 V, 50 Hz
  • Power consumption: 10 W
  • Dimensions (W x H x D): 215 × 61 × 238 mm (8.5 × 2.4 × 9.4 in)
  • Weight: 2.0 kg (4.4 lbs)

Teac UD-301
Dual Monaural Digital-To-Analog Converter

OUR PART #  UD-301

Product Information:

The TEAC UD-301 is a dual monaural digital-to-analog converter. It features a dual monaural design, compatible with high-resolution DSD.

TEAC UD-301 Features:

  • 2.8 MHz / 5.6 MHz DSD native playback (via USB input)
  • 24 bit / 192 kHz PCM file playback
  • Asynchronous mode capability
  • 192 kHz up-conversion option (with On/Off selection)
  • (2) BurrBrown PCM1795 digital-to-analog converters
  • Dual monaural design
  • (2) MUSES8920 operational amplifier units
  • Dual monaural CCLC headphone output circuit
  • Toroidal core power transformer
  • Full metal housing
  • (1) USB input (USB B type)
  • (1) coaxial digital input
  • (1) optical digital input
  • (1) XLR balanced output (Fixed/Adjustable/Off)
  • (1) RCA balanced output (Fixed/Adjustable/Off)
  • Headphone output (standard stereo jack)
  • Three-pin IEC AC power socket
  • Auto Power Save function

TEAC UD-301 Specifications:

  • DAC Section
    • D/A Converter: BurrBrown PCM1795 × 2
    • Up-conversion: 192 kHz (user defeatable)
  • Digital audio inputs
    • USB:
      • Connector: USB Type B (USB 2.0)
      • Transmission mode: Asynchronous mode
      • DSD data sampling frequency: 2.8 M / 5.6 M Hz
      • PCM data sampling frequency: 32 k / 44.1 k / 48 k / 88.2 k / 96 k / 176.4 k / 192 k Hz
      • Bit rates: 16 / 24 / 32 bit
    • COAXIAL:
      • Connector: RCA jack
      • PCM data sampling frequency: 32 k / 44.1 k / 48 k / 88.2 k / 96 k / 176.4 k / 192 k Hz
      • Bit rates: 16 / 24 bit
      • Input level: 0.5 Vp - p
      • Input impedance: 75 ohms
    • OPTICAL:
      • Connector: Optical digital connector
      • PCM data sampling frequency: 32 k / 44.1 k / 48 k / 88.2 k / 96 k Hz
      • Bit rates: 16 / 24 bit
      • Input level: -24 to -14.5 dBm peak
  • Analog Audio Outputs
    • XLR:
      • Connector: XLR-3-32
      • Maximum output level: +14 dBu (1 kHz, full-scale, 10 k ohms with load, 0 dB when set)
      • Output impedance: 200 ohms
    • RCA:
      • Connector: RCA jack
      • Maximum output level: 2.0 Vrms (1 kHz, full-scale, 10 k ohms when loaded)
      • Output impedance: 100 ohms
  • Headphone Output
    • Connector: 6.3 mm (1/4") stereo phone jack
    • Maximum output: 100 mW and +100 mW (32 ohms with load, distortion rate 0.1%)
    • Compatibility impedance: 8 ohms to 600 ohms
  • Power Supply
    • USA/Canada: AC 120 V, 60 Hz
    • Europe: AC 230 V, 50 Hz
  • Power consumption: 10 W
  • Dimensions (W x H x D): 215 × 61 × 238 mm (8.5 × 2.4 × 9.4 in)
  • Weight: 2.0 kg (4.4 lbs)
