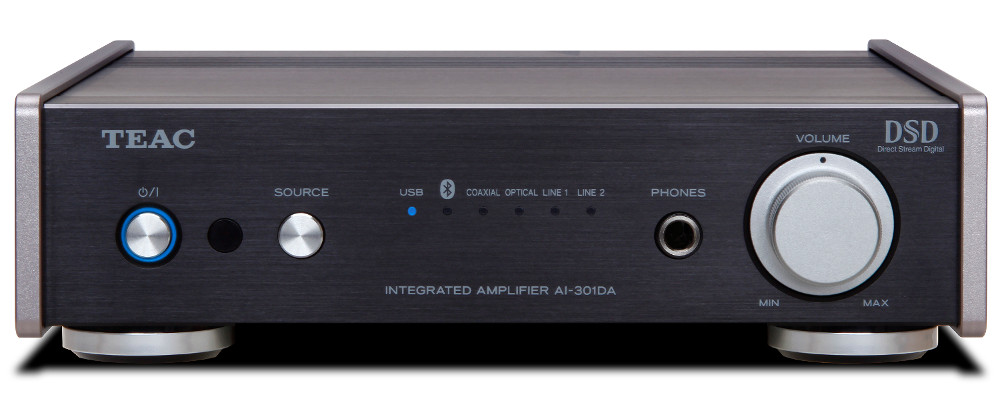

Teac AI-301DA
USB DAC Amplifier

OUR PART #  AI-301DA

Selected Model Price: $399.99
List Price: $449.99

Save up to 11%! (Low Price Guarantee)
Select model: (shipping times are approximate)

The TEAC AI-301DA is a USB DAC amplifier with both high-resolution and Bluetooth playback. This amplifier is compact and has USB input and fully compatible with high-resolution DSD.

TEAC AI-301DA Features:

  • ICEpower 50 ASX2 - SE Class-D power amp
  • 60 W and 60 W (4 ohms) high output
  • 2.8 MHz / 5.6 MHz DSD native playback (via USB input)
  • 32 bit / 192 kHz PCM file playback
  • Asynchronous mode capability
  • BurrBrown PCM 1795 digital-to-analog converter
  • Bluetooth® playback with aptX codec
  • Memory capacity for up to a maximum of eightBluetooth® device pairings
  • CCLC headphone output circuit
  • Full metal housing
  • One USB input (USB-B type)
  • One coaxial digital input
  • One optical digital input
  • Two RCA stereo line inputs
  • Screw-type speaker terminals (banana plugs, AWG8guage cable compatible)
  • Headphone output (standard stereo jack)
  • Subwoofer output (RCA)
  • Aluminum motor-driven volume control
  • Three-pin IEC AC power socket
  • Customized remote control included
  • Auto Power On function (activated by digital signalsensing)
  • Auto Power Save function

TEAC AI-301DA Specifications:

  • DAC Section
    • D/A Converter: BurrBrown PCM1795
  • Bluetooth® Section
    • Bluetooth® version: V2.1 + EDR
    • Output: Class 2
    • Compatible profiles: aptX®, A2DP, AVRCP
  • Output
    • Connector: Screw-type (banana terminal plugs, AWG8 guage loudspeaker cable compatible)
    • Maximum output:
      • 60 W and 60 W (4 ohms, 20 Hz to 20 kHz, JEITA)
      • 30 W and 30 W (8 ohms, 20 Hz to 20 kHz, JEITA)
    • Rated Output:
      • 43 W and 43 W (4 ohms, 20 Hz to 20 kHz, THD 0.1%, JEITA)
      • 22W and 22W (8 ohms, 20 Hz to 20 kHz, THD 0.1%, JEITA)
    • Supported Impedance: 4 ohms to 8 ohms
  • Analog audio input
    • Connector: RCA jack
  • Digital audio inputs
    • USB
    • COAXIAL
    • OPTICAL
  • Headphones output
    • Connector: 6.3 mm (1/4") stereo phone jack
    • Maximum output: 100 mW and 100 mW (with 32 ohms load, 1kHz)
    • Distortion rate: 0.005%
  • Power supply
    • USA/Canada: AC 120 V, 60 Hz
    • Europe: AC 230 V, 50 Hz
  • Power consumption: 38 W
  • Dimensions (including protrusions) (W x H x D): 215 ×61 × 254 mm (8.5 x 2.4 x 10 in)
  • Weight: 2.1 kg (4.6 lbs)

Teac AI-301DA
USB DAC Amplifier

OUR PART #  AI-301DA

Product Information:

The TEAC AI-301DA is a USB DAC amplifier with both high-resolution and Bluetooth playback. This amplifier is compact and has USB input and fully compatible with high-resolution DSD.

TEAC AI-301DA Features:

  • ICEpower 50 ASX2 - SE Class-D power amp
  • 60 W and 60 W (4 ohms) high output
  • 2.8 MHz / 5.6 MHz DSD native playback (via USB input)
  • 32 bit / 192 kHz PCM file playback
  • Asynchronous mode capability
  • BurrBrown PCM 1795 digital-to-analog converter
  • Bluetooth® playback with aptX codec
  • Memory capacity for up to a maximum of eightBluetooth® device pairings
  • CCLC headphone output circuit
  • Full metal housing
  • One USB input (USB-B type)
  • One coaxial digital input
  • One optical digital input
  • Two RCA stereo line inputs
  • Screw-type speaker terminals (banana plugs, AWG8guage cable compatible)
  • Headphone output (standard stereo jack)
  • Subwoofer output (RCA)
  • Aluminum motor-driven volume control
  • Three-pin IEC AC power socket
  • Customized remote control included
  • Auto Power On function (activated by digital signalsensing)
  • Auto Power Save function

TEAC AI-301DA Specifications:

  • DAC Section
    • D/A Converter: BurrBrown PCM1795
  • Bluetooth® Section
    • Bluetooth® version: V2.1 + EDR
    • Output: Class 2
    • Compatible profiles: aptX®, A2DP, AVRCP
  • Output
    • Connector: Screw-type (banana terminal plugs, AWG8 guage loudspeaker cable compatible)
    • Maximum output:
      • 60 W and 60 W (4 ohms, 20 Hz to 20 kHz, JEITA)
      • 30 W and 30 W (8 ohms, 20 Hz to 20 kHz, JEITA)
    • Rated Output:
      • 43 W and 43 W (4 ohms, 20 Hz to 20 kHz, THD 0.1%, JEITA)
      • 22W and 22W (8 ohms, 20 Hz to 20 kHz, THD 0.1%, JEITA)
    • Supported Impedance: 4 ohms to 8 ohms
  • Analog audio input
    • Connector: RCA jack
  • Digital audio inputs
    • USB
    • COAXIAL
    • OPTICAL
  • Headphones output
    • Connector: 6.3 mm (1/4") stereo phone jack
    • Maximum output: 100 mW and 100 mW (with 32 ohms load, 1kHz)
    • Distortion rate: 0.005%
  • Power supply
    • USA/Canada: AC 120 V, 60 Hz
    • Europe: AC 230 V, 50 Hz
  • Power consumption: 38 W
  • Dimensions (including protrusions) (W x H x D): 215 ×61 × 254 mm (8.5 x 2.4 x 10 in)
  • Weight: 2.1 kg (4.6 lbs)
