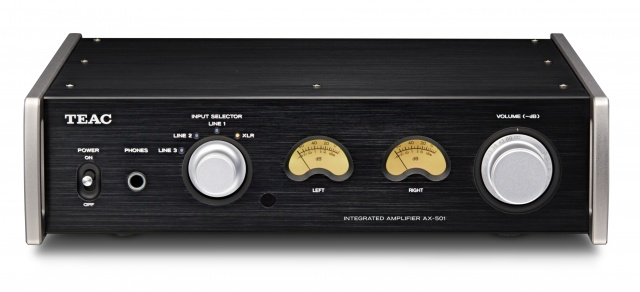

Teac AX-501
Stereo Integrated Amplifier

OUR PART #  AX-501

Selected Model Price: $899.99
List Price: $999.99

Save up to 10%! (Low Price Guarantee)
Select model: (shipping times are approximate)

The TEAC AX-501 is an integrated amplifier with balanced analog inputs. It has 120 watts and 120 watts High-performance Class-D Amplifier Engineered by ABLETEC, dimmable needle-type level meters visualize pulse of the music, and CCLC headphone circuit for high-quality headphone listening.

TEAC AX-501 Features:

  • ALC0240 Class-D Power Amplifier by ABLETEC
  • A fully-balanced approach used for the analogcircuits on the pre-amplifier
  • Maximum 120 W and 120 W of output power for practicaluse (at 4 ohms impedance)
  • Toroidal-core Power Transformer
  • Schottky Barrier diodes for power supply circuits
  • Full-metal body
  • Dual analog level meters with dimmable backlight
  • Headphone amplifier that employs CCLC system
  • (3) RCA analog line inputs
  • (1) XLR analog balanced inputs
  • Screw-type speaker terminals (AWG 8 and Banana-Plugcompatible)
  • Headphone out
  • Aluminum-weighted volume knob
  • Remote control
  • 3-pin AC socket with a detachable AC cable

TEAC AX-501 Specifications:

  • Output
    • Maximum output:
      • 120 W and 120 W (4 ohms, 1 kHz, JEITA)
      • 70 W and 70 W (8 ohms, 1 kHz, JEITA)
    • Rated Output:
      • 100 W and 100 W (4 ohms, 1 kHz, JEITA)
      • 65 W and 65 W (8 ohms, 1 kHz, JEITA)
    • Compatible speaker impedance range: 4 ohms to 8 ohms
    • Total harmonic distortion: 0.005% (8 ohms, 1 kHz, 1W, JEITA)
    • S/N ratio (input short)
    • LINE IN: 100 dB ( IHF-A)
    • Frequency range: 10 Hz to 60 kHz (+1 dB, -5 dB)
  • Inputs
    • Balanced
      • ConnectersL XLR x 1 pair
      • Nominal input level: 1.2 Vrms
      • Maximum input level: 7.7 Vrms
    • Unbalanced
      • Connecters: RCA jacks x 3 pairs
      • Nominal input level: 0.3 Vrms
      • Maximum input level: 3.5 Vrms
  • Power Consumption: 68 W
  • Dimensions (including protrusions) (W x D xH): 290 x 81.2 x 264 mm (11 1/2 x 3 1/4 x 10 1/2 in)
  • Weight: 4.0 kg
  • Operating Temerature: +5° C to +35° C
  • Operating humidity range: 5% to 85% (no condensation)
  • Storage Temerature: -20° C to +55° C

Teac AX-501
Stereo Integrated Amplifier

OUR PART #  AX-501

Product Information:

The TEAC AX-501 is an integrated amplifier with balanced analog inputs. It has 120 watts and 120 watts High-performance Class-D Amplifier Engineered by ABLETEC, dimmable needle-type level meters visualize pulse of the music, and CCLC headphone circuit for high-quality headphone listening.

TEAC AX-501 Features:

  • ALC0240 Class-D Power Amplifier by ABLETEC
  • A fully-balanced approach used for the analogcircuits on the pre-amplifier
  • Maximum 120 W and 120 W of output power for practicaluse (at 4 ohms impedance)
  • Toroidal-core Power Transformer
  • Schottky Barrier diodes for power supply circuits
  • Full-metal body
  • Dual analog level meters with dimmable backlight
  • Headphone amplifier that employs CCLC system
  • (3) RCA analog line inputs
  • (1) XLR analog balanced inputs
  • Screw-type speaker terminals (AWG 8 and Banana-Plugcompatible)
  • Headphone out
  • Aluminum-weighted volume knob
  • Remote control
  • 3-pin AC socket with a detachable AC cable

TEAC AX-501 Specifications:

  • Output
    • Maximum output:
      • 120 W and 120 W (4 ohms, 1 kHz, JEITA)
      • 70 W and 70 W (8 ohms, 1 kHz, JEITA)
    • Rated Output:
      • 100 W and 100 W (4 ohms, 1 kHz, JEITA)
      • 65 W and 65 W (8 ohms, 1 kHz, JEITA)
    • Compatible speaker impedance range: 4 ohms to 8 ohms
    • Total harmonic distortion: 0.005% (8 ohms, 1 kHz, 1W, JEITA)
    • S/N ratio (input short)
    • LINE IN: 100 dB ( IHF-A)
    • Frequency range: 10 Hz to 60 kHz (+1 dB, -5 dB)
  • Inputs
    • Balanced
      • ConnectersL XLR x 1 pair
      • Nominal input level: 1.2 Vrms
      • Maximum input level: 7.7 Vrms
    • Unbalanced
      • Connecters: RCA jacks x 3 pairs
      • Nominal input level: 0.3 Vrms
      • Maximum input level: 3.5 Vrms
  • Power Consumption: 68 W
  • Dimensions (including protrusions) (W x D xH): 290 x 81.2 x 264 mm (11 1/2 x 3 1/4 x 10 1/2 in)
  • Weight: 4.0 kg
  • Operating Temerature: +5° C to +35° C
  • Operating humidity range: 5% to 85% (no condensation)
  • Storage Temerature: -20° C to +55° C
