ikan Corporation IDMX500
Studio LED Light


The IDMX500 Studio Light with Touchscreen and DMX Control is designed and built for photographers...
Learn More
Our Price: $599.00
List Price: $660.00
You save 9%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


ikan Corporation IDMX500
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

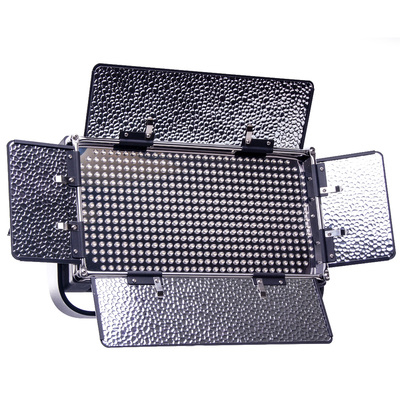

The IDMX500 Studio Light with Touchscreen and DMX Control is designed and built for photographers, videographers and cinematographers who want professional quality at an affordable price.

The Daylight 14” x 7.25" LED Studio Light delivers field-tested reliability, solid construction, and all the features required for professional performance.
The IDMX500’s features include energy efficient 5600K LEDs, a wide 60° angle, and full DMX capabilities that delivers reliable, consistent performance.

The IDMX500 LED Studio Light features 500 energy efficient 5600K LEDs that are dimmable in 1 step increments from 0-100% using the LCD touchscreen.   If the light is mounted overhead or cannot be reached, the IDMX500 is DMX controlled for dimming and powering the unit on and off.   An integrated yoke mount makes the IDMX500 easy to set up.   A multi-voltage power supply is included.  The pre-mounted four leaf barn doors can be folded flat for transportation.

IDMX500 lights are also available in different kit combinations that provide added value that may include stands, bags and other accessories.

Ikan Corporation IDMX500 Studio LED Light Includes:

  • Power Supply
  • Stand Adapter
  • Yoke

Ikan Corporation IDMX500 Studio LED Light Features:

  • Sturdy Metal Chassis
  • Only Draws 36 Watts
  • DMX 512 Compatible
  • Barn Doors with Intensifiers
  • Yoke Mount
  • Multi-Voltage Power Supply

Ikan Corporation IDMX500 Studio LED Light Specifications:

  • Beam Angle: 60° wide angle
  • Build Material: Aluminum
  • Color Temperature: 5600K (±100)
  • Control: Touch screen
  • Cooling System: Passive Heat Sink
  • Dimming: 10-100%
  • Fixture Size: 14" x 7.25" x 3.25"
  • Fixture Weight: 6 lbs
  • Focusing: N/A
  • Foot Candles (Flood):
    • 3 ft.: 472.96 fc
    • 6 ft.: 93.18 fc
    • 10 ft.: 36.78 fc
  • Head Type: Daylight
  • Lens: 60°
  • Light Source: 500 0.06 watt LED's 5600K
  • LUX (Flood):
    • 1m: 5091 lux
    • 2m: 1003 lux
    • 3m: 396 lux
  • Mount: Yoke
  • Operating Volts: 12-14.4v
  • Operating Wattage at 120V/60Hz: 36 watts
  • Power Supply: 12v at 3.33amp
  • Rating: 120v at 60hrz
  • Shipping Dimensions: 19" x 13" x 11" (48.26 x 33.02 x 27.94 cm)
  • Shipping Weight: 8 lbs (3.62 kg)

Click to download
