Draper 140038FNL Pire White 123" Access FIT/Series V Electric Projection Screen

OUR PART #: 140038FNL MFR #: 140038FNL

Copied to clipboard

Several years ago, Draper introduced the Access line of projection screens as a breakthrough in screen design. It was born out of input from our customers. ...Read more

Draper 140038FNL Pire White 123" Access FIT/Series V Electric Projection Screen Image 1
Draper 140038FNL Pire White 123" Access FIT/Series V Electric Projection Screen Image 2
Draper 140038FNL Pire White 123" Access FIT/Series V Electric Projection Screen
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Several years ago, Draper introduced the Access line of projection screens as a breakthrough in screen design. It was born out of input from our customers.

Today the Access has been redesigned, again based on customer input. The improvements make the Access even easier to install. First, we have repackaged as many sizes as possible into a compact housing, less than 6" tall. Access FIT utilizes the same rugged components as larger Access screens, with a smaller footprint. It is engineered to fit into tight openings above the ceiling--places where you thought the screen would have to be exposed. Access FIT/Series V offers screen sizes through 120" wide. The Access FIT/Series V is a motorized screen for ceiling–recessed installation.

Draper Shade and Screen 140038FNL Electric Projection Screen Features:

  • Redesigned bottom closure panel with new hinge systemallows the closure panel to hang in place when opened, or it can be easilyremoved.
  • Adjustable or removable hoisting brackets are nowincluded to allow for easy lifting during installation

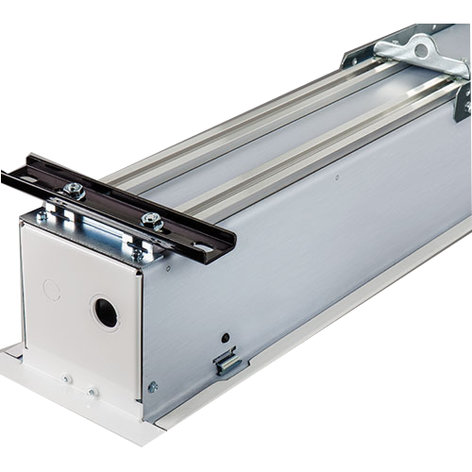

  • Case dimensions 7-3/4"W x 5-11/16"H (19.7cm x 14.4cm)including flange and mounting brackets
  • Paint finish is flat to appear similar to typcialceiling grid flat colors
  • Extra drop above image area available upon request,(specify color, black is standard). May increase case length.
  • Quick connect wiring connections allows forinstallation of the case early and addition of the screen later
  • Built-in Quiet, Low Voltage and 220V optionsavailable
  • Plenum rated case (UL approved “Suitable for Use inEnvironmental Air Space”)
  • Includes one 110-120V 3-position switch
  • Warranted for one year against defects in materialand workmanship
  • US Patent Nos. 6,137,629; 6,421,175; 6,532,109; 6,816,308; 7,559,707

Draper Shade and Screen 140038FNL Electric Projection Screen Specifications:

  • Surface material: Pure White XT1300V
  • Image format: 16:10
  • Diagonal (Image area): 123" (65" x 104")
  • Voltage: 110 V
  • Motor options: Low Voltage
  • Unit of measure: Imperial (USA)
  • Part number: 140038FNL
  • Surface material: Pure White XT1300V
  • Image Format: 16:10
  • Diagonal size: 123"
  • Image/Viewable area: 65" x 104"
  • Case length: 131"
  • Product weight: 85 pounds
  • Shipping weight: 90 pounds
  • U.S. Retail Price: $3509
