K-Array KA24
All-In-One KA Amplifier

OUR PART #:  KA24

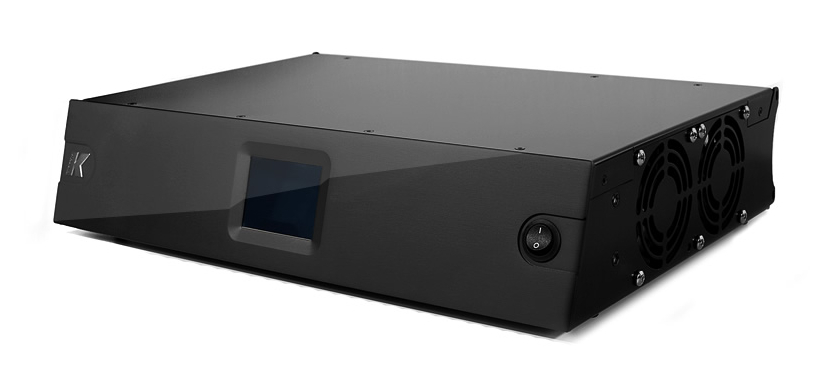

The K-Array KA24 is an all-in-one KA amplifier and processing solution. It features 4 channels per 500W on 4 Ohm. The KA24 also has 4 fully independent and configurable channels.
Learn More
Our Price: $3,977.80
List Price: $4,277.20
You save 7%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

K-Array KA24
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The K-Array KA24 is an all-in-one KA amplifier and processing solution. It features 4 channels per 500W on 4 Ohm. The KA24 also has 4 fully independent and configurable channels.

The KA24 can be used as a mixer for fixed installations because it has the microphone and Phantom power options available on every analog IN. 2 GPIO ports give easy external analog controls using K-array accessories.

K-Array KA24 Features:

  • 2000W in 2 rack units
  • 4 analog IN and 2 AES-EBU IN to 4 fully configurable OUT
  • 2 GPIO for external analog controls
  • Integrated DSP with processing, matrix and delays
  • Onboard touch screen for easy access functions
  • Mic IN and 48V option on all IN for mixer application

K-Array KA24 Specifications:

  • Power Output:
    • Max Power @ 4 Ohms: 4 x 600 W
    • Max Power @ 8 Ohms: 4 x 300 W
    • Max Power bridged @ 8 Ohms: 2 x 1200 W
    • Minimum impedance: 4 Ohms (single channel mode), 8 Ohms (bridge mode)
  • Audio Specs:
    • Distortion (THD + N): < 0.09% 1W to full power @ 4 Ohms (typically < 0.05 %)
    • Input impedance: 10 k Ohms balanced
    • Gain: 26 dB
    • Output: Unbalanced to ground
    • Bandwidth: 20 Hz - 20 kHz (+/- 1 dB)
    • Damping factor: > 10000 @ 100 Hz
  • Protection:
    • Thermal: Yes
    • Short circuit / over-load: Yes
    • Clip limit, Analog signal limit: Yes
  • Audio Input:
    • Analog Connectors: 4 male + 4 female 3-pin balanced XLR
    • Digital Connectors: 1 male + 1 female 3-pin XLR
  • Remote control Input:
    • Connectors: 1 male and 1 female XLR parallel / 1 USB B Jack serial converter
  • Audio powered Output:
    • Connectors: 2 x 4-pin Speakon NL4
  • AC power:
    • Connector: 2 x PowerCon IN/OUT
    • Nominal voltage: 100 - 240 V, 50/60 Hz with PFC
    • Operating Range: AC 90 - 264 V
    • Efficiency: > 79 % (typical)
    • 1/8 rated power (pink noise)@ 8Ohms: 440 VA
  • Certification:
    • IP: 20
  • Physical:
    • Dimensions: 17" x 12" x 4“ (430 x 295 x 94 mm)
    • Weight: 12.12 lbs (5.5 kg)
