Neutrik NAC3MPA-1-WOT
PowerCON Panel-Mount Receptacle Input without Insulation Divider, Blue

OUR PART #:  NAC3MPA-1-WOT

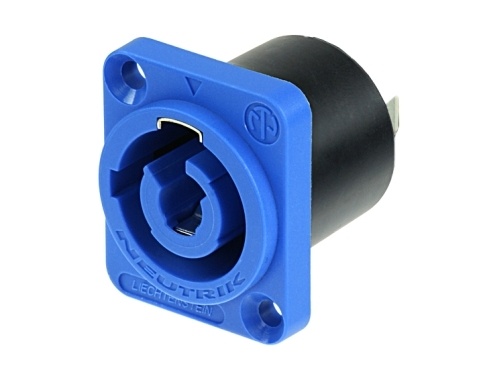

Neutrik's NAC3MPA-1-WOT is a blue panel-mount powerCON chassis connector with 3/16" flat tab terminals and no insulation divider.
Learn More
Our Price: $3.10
List Price: $3.37
You save 8%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NAC3MPA-1-WOT
Qty:
Similar Products

Neutrik's NAC3MPA-1-WOT is a blue panel-mount powerCON chassis connector with 3/16" flat tab terminals and no insulation divider.

The powerCON is a locking 3-conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

PLEASE NOTE: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live.

Neutrik NAC3MPA-1-WOT Features:

  • Air tight chassis connector, A-type for power-in, flat tab terminals
  • Lockable 3-pole equipment (AC) connector with contacts for line, neutral and pre-mating safety ground
  • High current capacity, rated at 20A / 250VAC
  • Fast and easy twist lock system
  • Extremely robust and reliable
  • Ergonomic design
  • Excellent cable retention
  • UL, cUL recognized components
  • VDE certified

Neutrik NAC3MPA-1-WOT Specifications:

Electrical

  • Contact resistance: = 3 mOhms
  • Dielectric strength: 4 kVDC / 2.8 kVAC
  • Insulation resistance: > 0.1 GOhms (after damp heat test IEC 68-2-30)
  • Number of electronical contacts: 2 + PE
  • Rated current per contact: 20 A RMS
  • Rated voltage: 250 VAC

Mechanical

  • Lifetime: > 1000 mating cycles
  • Locking device: Quick Lock
  • Mounting direction: Front mounting
  • Chassis shape: D

Material

  • Contacts: Bronze (CuNi1Si0.2)

Environmental

  • Flammability: UL 94 V-0
  • Temperature range: -30°C to + 80°C

Product specific

  • Coding: A-type for power inlet (color coding blue)
