Product Overview

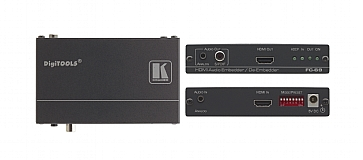

The FC-69 is a high-performance 4K UHD HDMI audio embedder and de-embedder. The unit can embed analog audio to the HDMI output or de-embed audio from the HDMI input or from the HDMI output Audio Return Channel to S/PDIF and unbalanced stereo audio outputs simultaneously.
Features
- Maximum Data Rate - 8.91Gbps (2.97Gbps per data channel)
- HDTV Compatible - Support for resolutions up to 4K UHD (4096x2160)
- HDCP Compliant
- HDMI Support - ARC and HDMI uncompressed audio channels, deep color, CEC
- Audio Embedding - Even without an HDMI source
- Audio de-Embedding - To unbalanced analog and S/PDIF, selectable from input or ARC
- Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances
- Sleep Mode - 5V on the output, following the input, allows the display to turn off when no video is being sent
- Preconfigured Control Options - DIP-switches control locking/modifying EDID, HDCP, embedding/de-embedding and sleep mode functionality
- Size - Compact DigiTOOLS® - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter
Specifications
- Input: 1 HDMI on an HDMI connector, 1 analog stereo audio on a 3.5mm mini jack
- Outputs:
- 1 HDMI on an HDMI connector
- 1 S/PDIF digital audio on an RCA connector
- 1 analog stereo audio on a 3.5 mm mini jack
- Operation Frequency: Supports up to 8.91Gbps (2.97Gbps per graphic channel), 1080p @60Hz, 36-bit Deep Color
- Audio THD+N: –75dB
- Compliance with HDMI Standard: Supports HDMI, HDCP
- Controls: 8-way DIP-switch
- Indicator LEDS:
- Power Source: 5V DC, 500mA.
- Operating Temperature: 32°-104°F (0°- +40°C)
- Storage Temperature: -40°-158°F (-40°- +70°C)
- Humidity: 10% to 90%, RHL non-condensing.
- Cooling: Convection.
- Enclosure Type: Aluminium
- Rack Mount: With optional adapter.
- Furniture Mount: With included rubber feet.
- Product Dimensions (W,D,H): 4.72" x 2.81" x 0.96" (12.00cm x 7.15cm x 2.44cm)
- Product Weight: 0.2kg (0.4lbs) approx.
- Shipping Dimensions (W,D,H): 9.13" x 4.72" x 3.50" (23.20cm x 12.00cm x 8.90cm)
- Shipping Weight: 0.6kg (1.2lbs) approx.
- Vibration: ISTA 1A in carton (International Safe Transit Association)
- Regualtory Compliance: CE
- Environmental Regulatory Compliance: RoHs and WEEE
- Included Accessories: Power supply
- Options: RK-3T 19” rack adapter
- Warranty: 7 years parts and labor
