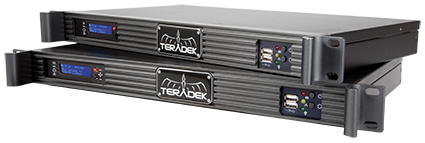

Teradek TER-SLICE-356
Rack-Mount HD-SDI Decoder


Our Price: $1,990.00
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Teradek Slice 356 is a 1U rack mount H.264 decoder built for OB vans and enterprise applications. It enables video professionals to output low latency high definition 1080p video at up to 10Mbps via HD-SDI. Slice 356 includes 2.4/5Ghz MIMO WiFi, ethernet, and cellular connectivity options and supports multiple transport protocols, including MPEG Transport Stream, RTP/RTSP, and Zixi. With the addition of Teradek's Sputnik server, Slice 356 rack mount encoders gain IFB and remote monitoring capabilities that give broadcasters full control over their IP video deployments.

Teradek TER-SLICE-356 Slice Rack Mount Decoder Specifications:

  • Video Outputs:
    • HD-SDI
    • SD-SDI: BNC
  • Supported Resolutions:
    • 1080i 50/59.94/60
    • 1080p 23.98/24/25/30
    • 1080PsF 23.98/24/25
    • 720p 50/59.94/60
    • 576i
    • 480i
  • Video Codec:
    • Compression Algorithm: Baseline, Main and High Profile H.264
    • Main and Baseline profiles
    • Bit Rate: 250 Kbps to 10 Mbps
    • Built in Video Scaler and Deinterlacer
  • Video Streaming Support:
    • Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
    • Transport Protocols: RTP, RTSP, RTP over HTTP, MPEG-TS
    • HTTP Live Streaming
    • Point to Point (TCP or UDP), Multiple Unicast (UDP), or Multicast (UDP+IGMP)
  • Audio:
    • Audio Compression: AAC-LC, MPEG Layer 2
    • Embedded Audio Input
    • Analog Line Out
    • Mic in, adjustable gain
    • Headphone output, adjustable volume
  • Physical:
    • Dimensions: 1U rack mount
    • Weight: 9lbs (144oz)
  • Interfaces:
    • Feature-rich WebUI for configuration and control
    • OLED LCD Display with joystick Navigation buttons
    • On/Off and Reset Switch
    • Micro SD
    • Powered USB 2.0 host port
  • Network:
    • Ethernet: 10/100BASE-T
  • Power:
    • 110/240V AC Power input
    • Nominal Power Consumption: 2.5W + 2.5W (max) per USB device
