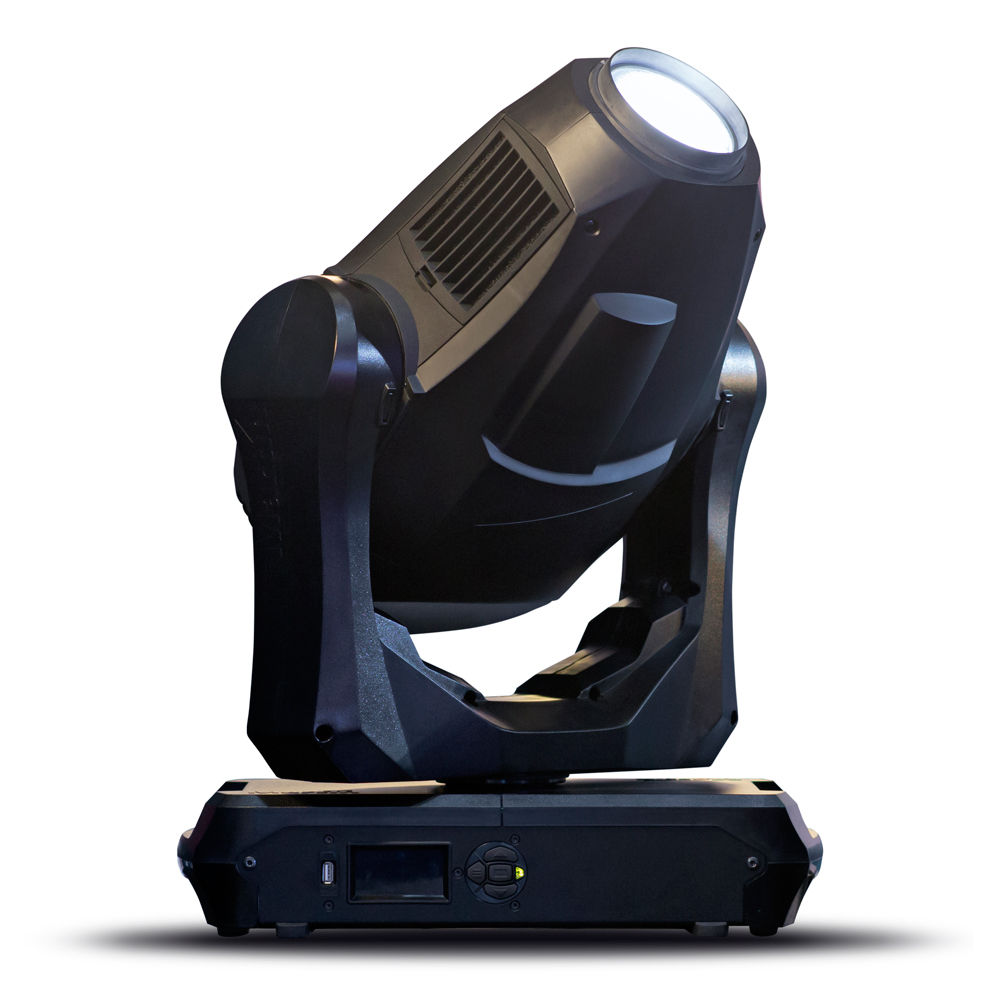

Product Overview
This extremely bright LED profile fixture combines top-quality white light with a fast, smooth CMY color mixing system and crisp gobo projection on surfaces as well as mid-air.
With all this and the new Animotion™ FX system that allows never-before seen beam animations, the market is now finally seeing the first real 700/800 W discharge lamp replacement in a profile fixture that effectively harnesses cutting-edge LED technology.
Martin Harman MAC Quantum Profile Includes:
- Two omega brackets for rigging clamp attachment: P/N 91602001
- 3 m power cable, 12 AWG, SJT, with PowerCon NAC3FCA power input connector: P/N 11541503
- Neutrik PowerCon NAC3FCA power input connector, cable mount, blue: P/N 05342804
- Half-coupler clamp: P/N 91602005
- G-clamp: P/N 91602003
- Quick trigger clamp: P/N 91602007
- Safety cable, safe working load 50 kg: P/N 91604003
- Flightcase for 2 x MAC Quantum™: P/N 91510210
Martin Harman MAC Quantum Profile Features:
- First real alternative to a 700/800 watt HID fixture
- Flat field, crisp image, high contrast
- Full feature set including CMY color mixing and 1:3 zoom
- Very low weight and compact design
- Super high-speed movements and effects
- Consistent photometric performance via latest LED technology
Martin Harman MAC Quantum Profile Specifications:
- Physical:
- Length: 17.8" (452 mm)
- Width (across yoke): 17.0" (431 mm)
- Height (head straight up): 25.3" (642 mm)
- Height (maximum): 25.5" (648 mm)
- Weight: 51.1 lbs. (23.2 kg)
- Dynamic Effects:
- Color mixing: CMY, independently variable 0 - 100%
- Color wheel: 6 color filters plus open
- Rotating gobo wheel: 6 interchangeable gobos plus open, wheel rotation, gobo rotation, indexing and shake
- Static gobo wheel: 10 gobos plus open, wheel indexing, rotation and shake
- Beam effects: Rotating three-facet prism
- Zoom: Motorized
- Focus: Motorized, with zoom-focus tracking
- Iris: 0 - 100%, pulse effects
- Shutter effect: Electronic, with variable speed regular and random strobe
- Electronic dimming: Four dimming curve options
- Pan: 540°
- Tilt: 268°
- Pan and tilt speed: Adjustable via onboard control panel and DMX
- Control and Programming:
- Control system: DMX
- RDM: Implemented
- Control resolution: 8-bit, with 16-bit control of dimming, gobo indexing, zoom, focus, pan and tilt
- DMX channels: 19/27
- Setting and addressing: Control panel with backlit graphic display
- DMX compliance: USITT DMX512-A
- RDM compliance: ANSI/ESTA E1.20
- Transceiver: RS-485
- Fixture software update: Direct using USB memory stick or via DMX link using Martin USB Duo™ DMX Interface Box
- Optics:
- Light source: 475 W LED engine
- LED refresh rate: 3000 Hz
- Minimum LED lifetime: 50 000 hours (to >70% luminous output)
- Zoom range: 12° - 36° (1:3)
- Output: 12 700 lumens
- Construction:
- Color: Black
- Housing: High-impact flame-retardant thermoplastic
- Protection rating: IP20
- Installation:
- Mounting points: 4 pairs of quarter-turn locks
- Location: Indoor use only, must be fastened to surface or structure
- Orientation: Any
- Minimum distance to combustible materials: 0.2 m
- Minimum distance to illuminated surfaces: 2.0 m
- Connections:
- AC power input: Neutrik PowerCon
- DMX and RDM data in/out: 5-pin locking XLR
- Electrical:
- AC power: 120-240 V nominal, 50/60 Hz
- Power supply unit: Auto-ranging electronic switch mode
- Maximum total power consumption: 750 W
- Typical half-cycle RMS inrush current: 10.3 A
- Typical power consumption, all effects static, zero light output: Approx. 50 W
- Maximum total power consumption: 750 W
- Typical half-cycle RMS inrush current: 10.3 A
- Typical Power and Current:
- 120 V, 60 Hz: 4.8 A, 576 W, PF 0.999
- 208 V, 60 Hz: 2.8 A, 568 W, PF 0.991
- 230 V, 50 Hz: 2.5 A, 565 W, PF 0.988
- 240 V, 50 Hz: 2.4 A, 565 W, PF 0.988
- Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
- Thermal:
- Cooling: Forced air (temperature-regulated, low noise, user-definable levels)
- Maximum ambient temperature (Ta max.): 40° C
- Minimum ambient temperature (Ta min.): 5° C
- Total heat dissipation (calculated, +/- 10%): 2000 BTU/hr.
- Approvals:
- EU safety: EN 60598-2-17 (EN 60598-1), EN 62471
- EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
- US safety (pending): UL 1573
- US EMC: FCC Part 15 Class A
- Canadian safety (pending): CSA C22.2 No. E598-2-17 (CSA E60598-1)
- Canadian EMC: ICES-003 Class A
- Australia/NZ: C-TICK N4241
