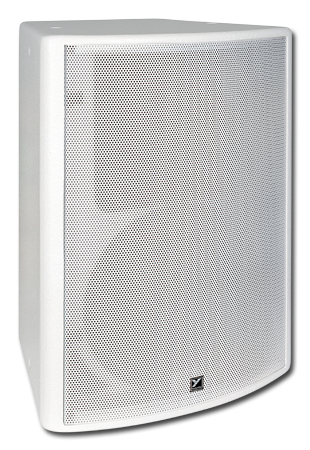

Yorkville C2285
Installation Loudspeaker, 300 Watt, 12-Inch, 1-Inch Driver

OUR PART #:  C2285

The Yorkville C2285's 300 watt 12-inch / 1-inch combination has an ABS Waveguide 80° x 50° rotatable horn assembly.
Learn More
Our Price: $469.00
List Price: $649.00
You save 28%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Yorkville C2285
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Yorkville C2285's 300 watt 12-inch / 1-inch combination has an ABS Waveguide 80° x 50° rotatable horn assembly. The C2285 cabinet can be mounted or flown in either a horizontal or vertical orientation and has fly points on all sides, top, and bottom to ensure easy installation in virtually any environment. CTL™ protection ensures years of trouble free operation.

Yorkville C2285 Features:

  • 300 Watts / 8 ohms
  • 12-inch Woofer / 1-inch Horn Driver
  • 80° x 50° Rotatable Waveguide Horn
  • Proven CTL™ High Frequency Driver Protection
  • Integrated 3/8-inch flypoints
  • Solid 5/8-inch (15mm) Plywood Cabinet Construction
  • All Metal Grille
  • 1/4-inch & Binding Post Inputs

Yorkville C2285 Specifications:

  • System Type: Two Way
  • Active or Passive: Passive
  • Program Power (Watts): 300
  • Nominal Impedance (Ohms): 8
  • Sensitivity (dB @1Watt/1m): 99
  • Max SPL (dB): 124
  • Frequency Response (Hz +/- 3dB): 55 - 16k
  • Crossover Frequency (Hz): 2500
  • Driver Configuration: 12 inch / 1 inch
  • HF Driver(s): 1 inch Mylar
  • HF Horn: Rotatable ABS Waveguide
  • HF Dispersion (°H x °V): 80 x 50 Rotatable
  • HF Protection: CTL
  • Inputs - 1/4" Jacks: 2
  • Inputs - Binding Post: 1 Pair
  • Flying Hardware: 3/8 inch x 9
  • Enclosure Materials: 15mm (5/8inch) 11-ply Russianbirch
  • Grille: Perforated Metal
  • Covering / Finish: Two Part White Epoxy
  • Optional Covering / Finishes: Special Order
  • Dimensions (DWH xbackW, inches): 14 x 17 x 24 x 11
  • Dimensions (DWH xbackW, cm): 36 x 43 x 61 x 28
  • Weight (lbs/kg): 44.5 / 20.2
