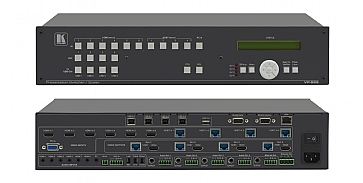

Kramer VP558 Presentation Router and Scaler
11x4 Scaler System

OUR PART #:  VP558

The VP-558 is a high-performance 11x4 ProScale presentation scaler/matrix switcher that can output four independent scaled images.
Learn More

Call for price! Not available online.
List Price: $7,495.00

Similar Products

The VP-558 is a high-performance 11x4 ProScale presentation scaler/matrix switcher that can output four independent scaled images. Each output includes an HDMI and HDBaseT connector. The product supports analog, digital and embedded audio. VP-558 features six HDMI inputs, four HDBaseT inputs, an analog VGA input, and a 4x1 USB switcher. VP-558 also includes a microphone input, independent stereo audio outputs, a monitor output, an amplified speaker output, and audio DSP features.

Kramer VP-558 Router Features:

  • Pix-Perfect™ Scaling Technology - Kramer’s precision pixel mapping and high-quality full up- and down-scaling technology.
  • HDTV Compatible. HDCP Compliant.
  • Output Resolutions - Up to 1080p/UXGA.
  • System Range - For the HDBT inputs and outputs - up to 70m (230ft).
  • Cables - For optimum range and performance using HDBaseT™, use Kramer's BC-HDKat6a cable. Note that the transmission range depends on the signal resolution, source and display used. The distance using non-Kramer CAT 6 cable may not reach these ranges.
  • 4x1 USB Switcher - Can be set to follow the switching of the video layer or as an independent switcher.
  • OSD (On Screen Display) - For easy setup and adjustment, accessible via the front panel buttons.
  • Audio DSP Features.
  • Input/Output Audio Level Adjustment.
  • Selectable Microphone Talkover or Mix Modes.
  • Analog & Embedded Audio Support - For inputs and outputs.
  • Built-in Power Amplifier - 2x10W power amplifier with speaker outputs on a 4-pin terminal block connector.
  • Multiple Aspect Ratio Selections.
  • Built-in ProcAmp - Color, hue, sharpness, noise, contrast and brightness.
  • Built-in Web Pages - For easy setup and remote control.
  • Firmware Upgrade via the Ethernet
  • Multiple Control Options - Front panel buttons with OSD, RS-232, Ethernet and built-in Web pages.
  • Size - Standard 19" (2U). Rack "ears" included.

Kramer VP-558 Router Specifications:

  • Inputs:
    • Six HDMI connectors
    • One VGA on a 15-pin HD connector
    • Four HDBT on RJ-45 connectors
    • Four USB ports
    • Six unbalanced analog audio on 3.5mm mini jacks for HDMI
    • One unbalanced analog audio on a 3.5mm mini jack for PC
    • One aux in/mic balanced stereo audio on a 5-pin terminal block connector.
  • Outputs:
    • Four HDBT on RJ-45 connectors
    • Four HDMI connectors
    • One USB port
    • Four audio out balanced stereo on 5-pin terminal block connectors
    • Four audio out S/PDIF on RCA connectors
    • Monitor out balanced stereo on a 5-pin terminal block connector
    • Monitor out S/PDIF on an RCA connector
    • One stereo speaker output
    • 2x10W, on a 4-pin terminal block connector
  • Output Resolutions:
    • Native
    • 640x480 @ 60
    • 800x600 @ 60
    • 1024x768 @ 60
    • 1280x768 @ 60
    • 1360x768 @ 60
    • 1280x720 @ 60
    • 1280x800 @ 60
    • 1280x1024 @ 60
    • 1440x900 @ 60
    • 1400x1050 @ 60
    • 1680x1050 @ 60
    • 1600x1200 @ 60
    • 1920x1080 @ 60
    • 1920x1200 @ 60
    • 720x480p @ 60
    • 1280x720p @ 60
    • 1920x1080i @ 60
    • 1920x1080p @ 60
    • 720x576p @ 60
    • 1280x720p @ 50
    • 1920x1080i @ 50
    • 1920x1080p @ 50
  • Controls:
    • HDMI 1
    • HDMI 2
    • HDMI 3
    • HDMI 4
    • HDMI 5
    • HDMI 6
    • HDBT 1
    • HDBT 2
    • HDBT 3
    • HDBT 4
    • PC
    • USB 1
    • USB 2
    • USB 3
    • USB 4
    • Input selector buttons:
      • Menu
      • Enter
      • Menu arrows
      • Reset to XGA/720p
      • OSD SELECT
      • 2 RS-232
      • Ethernet
      • Line/mic selector switch
      • Cond/dyn (48V) selector switch
      • Mono/stereo selector switch
      • REM for muting audio
  • Power Consumption: 100-240V AC, 70VA max.
  • Operating Temperature: 0° to +40°C (32° to 104°F).
  • Storage Temperature: -40° to +70°C (-40° to 158°F).
  • Humidity: 10% to 90%, RHL non-condensing.
  • Dimensions (WxDxH): 19" x 14.4" x 2U rack mountable.
  • Included Accessories: Power cord, rack "ears".
  • Options: Kramer BC-HDKat6a cable.

Applications:

  • Projection systems in conference rooms, boardrooms, hotels and churches
  • Meeting rooms with video conferencing systems
  • Applications that require multiple screens with various sizes and resolutions at different distances from the cabinet or rack
