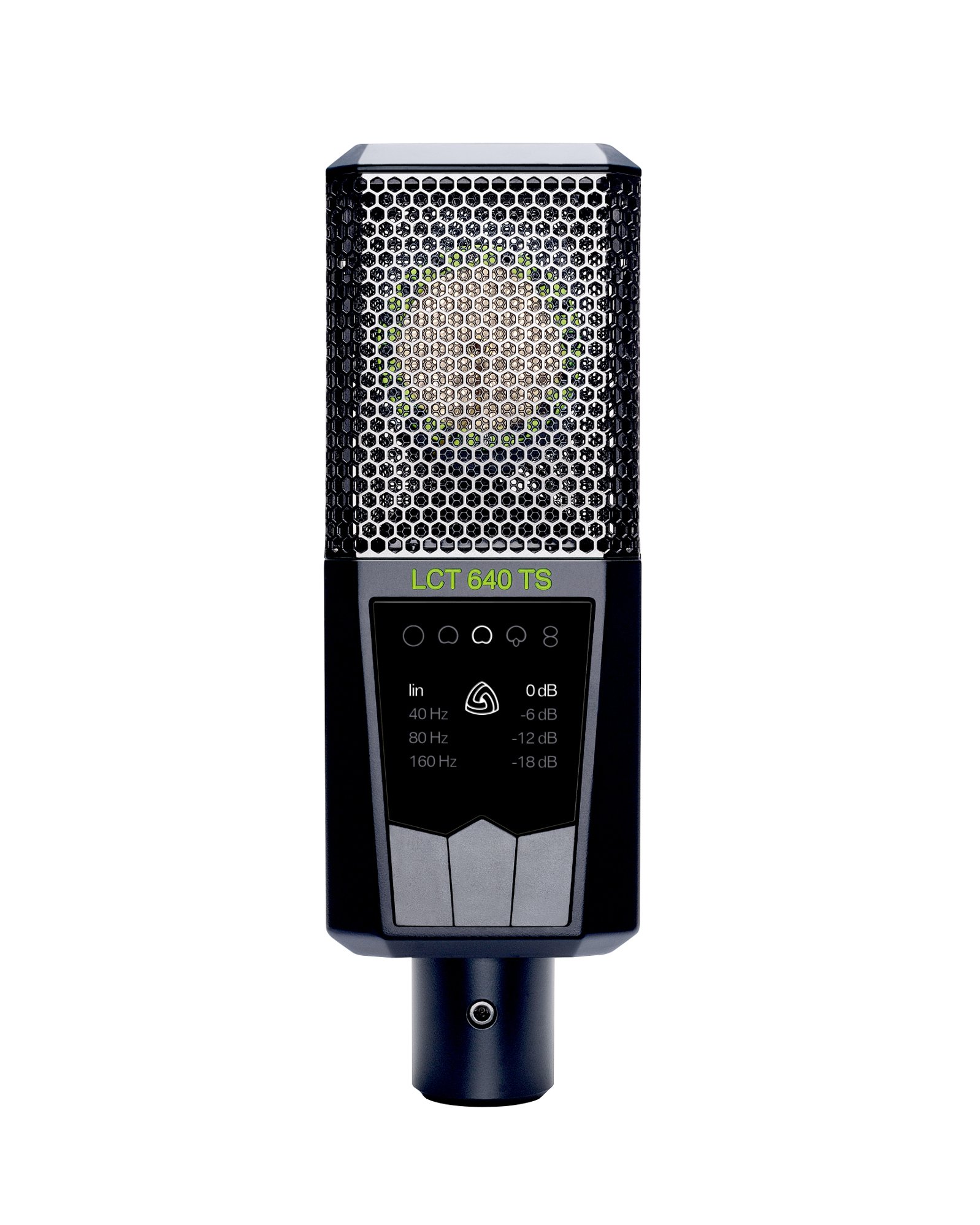

Lewitt LCT640 TS
Multi-Pattern, Dual Output Condenser Microphone

OUR PART #:  LCT640-TS

Lewitt's LCT 640 TS, designed and engineered in Austria, will revolutionize the way we approach the recording process.
Learn More
Our Price: $899.00
List Price: $1,199.99
You save 25%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Lewitt LCT640 TS
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Lewitt's LCT 640 TS, designed and engineered in Austria, will revolutionize the way we approach the recording process. Set to Dual Output Mode, the signal of the mic's front and back diaphragm is provided by independent circuitries, so any type of polar pattern can be realized dynamically - even after recording. Previously recorded material can be changed dynamically by adjusting the polar pattern - room sound can be added or decreased, even by 180°. ?After recording with the LCT 640 TS you can use LEWITT’s Polarizer plugin to tweak the material with incredible ease of use. In Multi-Pattern Mode the LCT 640 TS has all the well-known characteristics of a great sounding studio multi-pattern condenser mic. It features 5 polar patterns: omni, wide cardioid, cardioid, supercardioid, and figure-8. Perfect Match technology takes care that all LCT 640 TS have the exact same sensitivity at 1 kHz. The Dual Output Mode allows to record in stereo with only a single LCT 640 TS - usually only accomplished using 2 microphones. Clipping History, 4 low-cut and pre-attenuation settings round off the outstanding feature list of the LCT 640 TS. The LCT 640 TS opens doors to a whole new world of recording techniques.

Mid-Side Stereo
The ability to record "Mid Side" stereo with only one LCT 640 TS is another possibility. Musicians and engineers just have to point the side of the microphone to the source they want to record. The front capsule then serves as the left-side channel while the back capsule serves as the right side. Summing both signals together creates the mid-channel.

Lewitt LCT 640 TS Includes:

  • LCT 640 TS microphone
  • Shock mount
  • Magnetic pop filter
  • Protective case

Lewitt LCT 640 TS Features:

  • Polarizer plugin to fine-tune the polar pattern
  • Dual Output Mode - all polar patterns at any time
  • Multi-Pattern Mode - 5 polar patterns
  • Clipping Indicator and Clipping History

Lewitt LCT 640 TS Specifications:

  • Type: Condenser, externally polarized
  • Acoustical operating principle: Pressure gradient transducer
  • Diaphragm: 3 micron gold sputtered Mylar
  • Transducer Ø: 1" (25.4mm)
  • Polar pattern (Dual Output Mode): Create any polar pattern in post-production
  • Polar pattern (Multi-Pattern Mode): omni, wide cardioid, cardioid, supercardioid, figure-8
  • Sensitivity:
    • 31.4 mV/Pa, -30.1 dBV/Pa (cardioid)
    • 30.3 mV/Pa, -30.3 dBV/Pa (omni)
    • 34.1 mV/Pa, -29.4 dBV/Pa (figure-8)
  • Equivalent noise level: 10.5 dB (A), cardioid
  • Max. SPL for 0.5 % THD: 133.8 dBSPL, 0 dB pre-attenuation
  • Signal / noise ratio: 83.5 dB (A)
  • Dynamic range: 123.3 dB (A)
  • Pre-attenuation pad
    • 0 dB
    • -6 dB
    • -12 dB
    • -18 dB
  • Low-cut filter:
    • linear
    • 40 Hz (12 dB/oct)
    • 80 Hz (12 dB/oct)
    • 160 Hz (6 dB/oct)
  • Internal impedance: 110 Ohms
  • Rated load impedance: 1,000 Ohms
  • Supply voltage: 48 V +/- 4 V
  • Current consumption: 5.1 mA
  • Mic enclosure: Zinc die cast
  • Connector: Gold-plated 3-pin XLR + Mini 3-pin XLR
  • Dimensions: 6.22" x 2.04" x 1.42" (158 x 52 x 36 mm)
  • Microphone Net Weight: 14.9 oz. (425 g)

Notes:
Microphones measured according to: IEC 60268-4
Phantom power according to: IEC 61938
Noise measurement according to: IEC 60268-1
