Yamaha SWP1-8MMF Switcher with EtherCon Ports, Opticalcon Port And Option Slot

OUR PART #: SWP1-8MMF MFR #: SWP1-8MMF

Copied to clipboard

The SWP1 simplifies switch configuration by having settings for QoS, IGMP Snooping and other parameters pre-configured optimal Dante performance. ...Read more

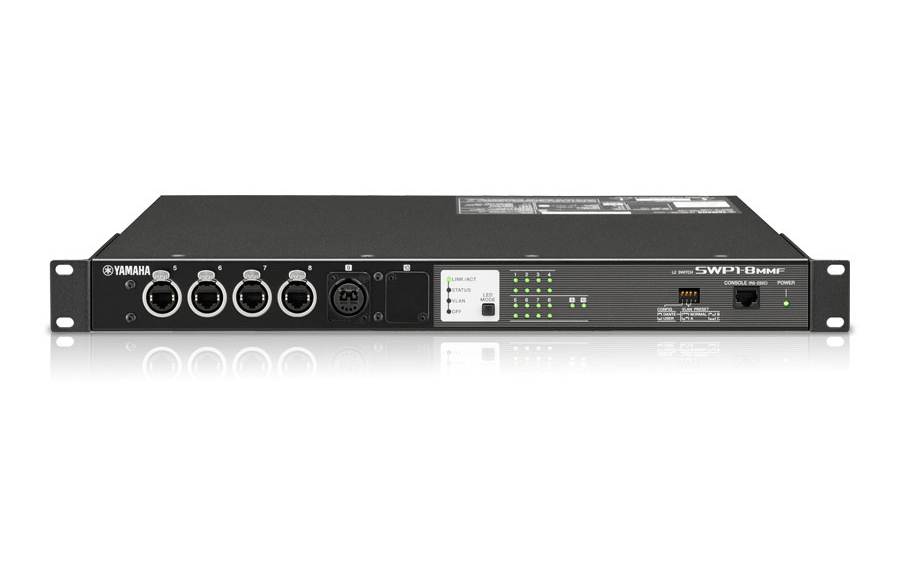

Yamaha SWP1-8MMF Switcher With EtherCon Ports, Opticalcon Port And Option Slot Image 1
Yamaha SWP1-8MMF Switcher With EtherCon Ports, Opticalcon Port And Option Slot

Call for price! Not available online.

Item usually available to ship in 14-17 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The SWP1 simplifies switch configuration by having settings for QoS, IGMP Snooping and other parameters pre-configured optimal Dante performance. It is ideal for audio engineers who may be new to IP networking. The SWP1 Series allows a Dante optimized setup to be recalled by flipping a single DIP switch. No expertise or training is required. The SWP1 Series includes three VLAN presets that can be simply selected via a DIP switch. There’s also a USER mode that allows fully customized VLAN setup.

Features

  • ethercon Connectors: 4 front / 8 rear
  • RJ45 Connectors: 4 rear
  • opticalcon Connector: 1 front
  • Optional optical module slot: 1 front

Specifications

  • Number of LAN ports(1000BASE-T/100BASE-TX/10BASE-T/etherCON connector): 8
  • Number of LAN ports(1000BASE-T/100BASE-TX/10BASE-T/RJ-45 connector): 4
  • Number of SFP ports (1000BASE-SX/opticalCON connector): 2 (1 opticalmodule is installed as standard)
  • Automatic negotiation: Available
  • Auto MDI/MDI-X: Available
  • Switching capacity: 20 Gbit/s
  • Throughput: 15 Mpps
  • Maximum number of MAC addresses: 16,384
  • Frame buffer: 1024 kB
  • VLAN: Port VLAN, Tag VLAN (IEEE802.1Q), Private VLAN
  • Maximum number of VLANs: 256 (VLAN ID 1–4,094) *VLANID 1 is the default VLAN ID.
  • IP multicast: IGMP Snooping (v1/v2/v3)
  • QoS: 8 egress queues, Policy-based QoS, Remarking(CoS, ToS, DSCP), Scheduling (SP, WRR)
  • Flow control: IEEE802.3x (Full-duplex), back pressure(Half-duplex)
  • Support functions: Storm control, HOL blockingprevention, Loop detection, ACL, SNMP agents, Link aggregation (IEEE 802.3adLACP, Static), Spanning tree (STP*, RSTP*, MSTP), Port mirroring, Portshutdown, Link speed down shift, Packet counter, Power saving mode(IEEE802.3az EEE; Disabled in DANTE mode), DHCP client, Logging, Firmwaredownload via TFTP/HTTP, Config file download via TFTP *STP and RSTP aresupported via downward compatibility of MSTP.
  • DIP switches: CONFIG, VLAN PRESET
  • Indicators: Front: POWER, LED MODE×4, PORT×8×2*, SFP×2*The LED MODE button allows the PORT lamps to be switched between indicatingLINK/ACT-SPEED, STATUS, or VLAN.
  • Operating temperature: 0 to 40°C
  • Storage temperature: –20 to 60°C
  • Power supply (AC IN inlet): AC100V-240V, 50/60Hz,Internal power supply (no power switch), Power supply inlet: locking type
  • Power supply (EXT DC INPUT inlet): External powersupply requirements: 24VDC +/- 2V, 1A, XLR-4-32 type Connector
  • Maximum power consumption: 11 W, 0.21 A
  • Heat dissipation: 9.5 kcal/h
  • Chassis: Metal case, no fan
  • Hazardous substances management: RoHS compliant
  • Dimensions (w x h x d): 480 x 44 x 362 mm
  • Weight: 4.2 kg
