Yamaha SWP1-16MMF Dante Ready Switch with Visual Network Monitoring

OUR PART #: SWP1-16MMF MFR #: SWP1-16MMF

Copied to clipboard

The SWP1 simplifies switch configuration by having settings for QoS, IGMP Snooping and other parameters pre-configured optimal Dante performance. ...Read more

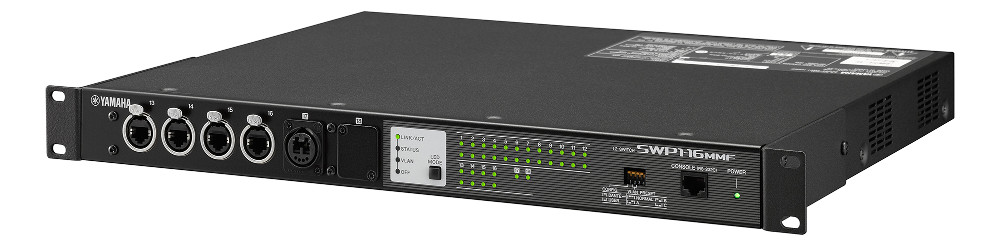

Yamaha SWP1-16MMF Dante Ready Switch With Visual Network Monitoring Image 1
Yamaha SWP1-16MMF Dante Ready Switch With Visual Network Monitoring

Call for price! Not available online.

Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The SWP1 simplifies switch configuration by having settings for QoS, IGMP Snooping and other parameters pre-configured optimal Dante performance. It is ideal for audio engineers who may be new to IP networking. The SWP1 Series allows a Dante optimized setup to be recalled by flipping a single DIP switch. No expertise or training is required. The SWP1 Series includes three VLAN presets that can be simply selected via a DIP switch. There’s also a USER mode that allows fully customized VLAN setup.

Yamaha SWP1-16MMF Features:

  • etherCON Connectors: 4 front / 8 rear
  • RJ45 Connectors: 4 rear
  • opticalCON Connector: 1 front
  • Optional optical module slot: 1 front

Yamaha SWP1-16MMF Specifications:

  • Number of LAN ports(1000BASE-T/100BASE-TX/10BASE-T/etherCON connector): 12
  • Number of LAN ports(1000BASE-T/100BASE-TX/10BASE-T/RJ-45 connector): 4
  • Number of SFP ports (1000BASE-SX/opticalCONconnector): 2 (1 optical module is installed as standard)
  • Console port: 1 (RJ-45)
  • Automatic negotiation: Available
  • Auto MDI/MDI-X: Available
  • Switching capacity: 36 Gbit/s
  • Throughput: 27 Mpps
  • Maximum number of MAC addresses: 16,384
  • Frame buffer: 1024 kB
  • VLAN: Port VLAN, Tag VLAN (IEEE802.1Q), Private VLAN
  • Maximum number of VLANs: 256 (VLAN ID 1–4,094) *VLANID 1 is the default VLAN ID
  • IP multicast: IGMP Snooping (v1/v2/v3)
  • QoS: 8 egress queues, Policy-based QoS, Remarking(CoS, ToS, DSCP), Scheduling (SP, WRR)
  • Flow control: IEEE802.3x (Full-duplex), back pressure(Half-duplex)
  • Support functions: Storm control, HOL blockingprevention, Loop detection, ACL, SNMP agents, Link aggregation (IEEE 802.3adLACP, Static), Spanning tree (STP*, RSTP*, MSTP), Port mirroring, Portshutdown, Link speed down shift, Packet counter, Power saving mode(IEEE802.3az EEE; Disabled in DANTE mode), DHCP client, Logging, Firmwaredownload via TFTP/HTTP, Config file download via TFTP *STP and RSTP aresupported via downward compatibility of MSTP.
  • DIP switches: CONFIG, VLAN PRESET
  • Indicators: Front: POWER, LED MODE×4, PORT×16×2*,SFP×2 *The LED MODE button allows the PORT lamps to be switched betweenindicating LINK/ACT-SPEED, STATUS, or VLAN.
  • Operating temperature: 0 to 40°C
  • Storage temperature: –20 to 60°C
  • Power supply (AC IN inlet): AC100V-240V, 50/60Hz,Internal power supply (no power switch), Power supply inlet: locking type
  • Power supply (EXT DC INPUT inlet): External powersupply requirements: 24VDC±2V, 1A, XLR-4-32 type Connector
  • Maximum power consumption: 16 W, 0.29 A
  • Heat dissipation: 14.0 kcal/h
  • Chassis: Metal case, no fan
  • Hazardous substances management: RoHS compliant
  • Dimensions (w x h x d): 480 x 44 x 362 mm
  • Weight: 4.6 kg
