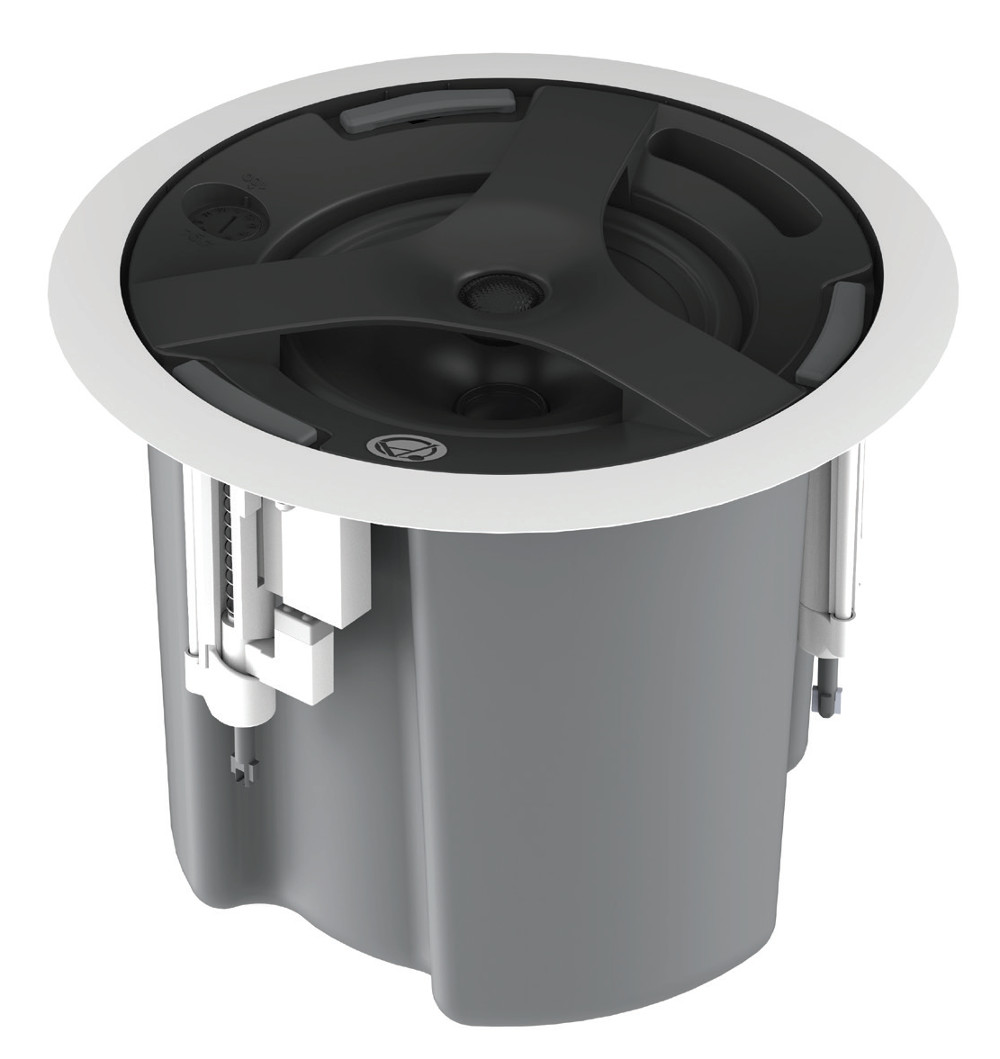

Atlas Sound FAP63T
6.5-Inches, 2-Way In-Ceiling Loudspeaker


The FAP63T’s 135° dispersion angle can reduce the number of loudspeakers necessary to achieve coverage in distributed systems with low ceilings.
Learn More
Our Price: $113.99
List Price: $141.99
You save 20%!
Be the first to review.

This product must be purchased in multiples of 2

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Atlas Sound FAP63T
In Stock

Similar Products

The FAP63T’s 135° dispersion angle can reduce the number of loudspeakers necessary to achieve coverage in distributed systems with low ceilings. The loudspeaker component matches the performance of the legendary Atlas Sound FA136 driver. High quality construction 6.5" coaxial cone type driver includes a 1" voice coil and high efficiency composite cone with polymer coated cloth surround. The 20mm coaxially mounted silk dome tweeter. A high sensitivity of 90dB average means less power may be required to achieve the desired SPL.

This loudspeaker is factory assembled in an optimally tuned and ported deep drawn enclosure and includes a specially designed 32-watt low saturation 70.7V / 100V transformer. A convenient front mounted selector switch allows tap selection without the need to remove the
loudspeaker from the ceiling. This switch also includes a transformer bypass setting for 8O direct coupled operation.

Atlas Sound FAP63T Features:

  • 70.7V/100V and 8 Ohms Operation
  • Patented Safety First Mounting System Enables Installation without Drill or Screwdriver
  • Improved Waveguide Provides up to 110° Dispersion
  • Ported Enclosure Provides Enhanced Low-Frequency Response
  • 4-Pole Detachable “Phoenix” Style Connector Allows Easy Pre-Wiring and Is Convenient for Daisy Chaining Additional Strategy Series Full
  • Range Loudspeakers or Subwoofers

AtlasIED FAP63T Specifications:

  • System
    • Type: Two Way, Full Range, Coaxial Ceiling Loudspeaker
    • Operation Mode: Non-Powered Passive
    • Operating Range (-10dB): 56 Hz
    • Frequency Response (+/- 5dB): 50 Hz - 20 kHz (+/-3 dB)
    • Vertical Coverage: 130º 800 Hz - 4 kHz
    • Horizontal Coverage: 130º 800Hz - 4kHz
    • Max Input Ratings (8 Ohms):
    • 75W Continuous, 150W Program
    • 24.5 Volts RMS, 49 Volts Momentary Peak
    • Transformer Taps - 70V: 32W, 16W, 8W, 4W and Low Impedance (8Ohms)
    • Transformer Taps - 100V: 32W, 16W, 8W
    • Directivity Factor (Q): 7.62 @ 2 kHz
    • Directivity Factor (DI): 8.82 @ 2 kHz
    • Input Sensitivity at 1W/1m: 90 dBSPL
    • Max SPL at 1 m (Passive): 108.5 dB Continuous / 115 dB Peak
    • Recommended Signal Processing: 80Hz
    • Recommended Power Amplification: 200W at 8 Ohms
  • Transducers
    • LF Transducer Qty and Size: (1) , 6.5"
    • LF Voice Coil Size: 1"
    • MF Transducer Qty and Size: N/A
    • MF Voice Coil Size: N/A
    • HF Transducer Qty and Size: (1) , 20mm Treated Silk Dome Tweeter
    • Maximum Output: 108.5 dB SPL / 115 dB SPL (Peak 8 Ohms)
    • Nominal Impedance: 8 Ohms
    • Minimum Impedance: 7.1 Ohms @ 212 Hz
    • Crossover Frequency: 2.5 kHz
    • Driver Protection: N/A
  • Enclosure
    • Color: White (RAL 9016)
    • Enclosure Material: Powder Painted CRS
    • Grille Material: Powder Coated CRS, White Finish (RAL9016), Paintable
    • Baffle Material: UL94V-0 PC
    • Mount Material: Zinc Plated CRS
    • Input Connection: 4-Position PHX Type Connector
    • Controls: Front-Face Power Taps / Low Impedance Selector Switch
    • Mounting/Rigging Provisions: Patented Safety First Mounting System
    • Safety Features: (1) Safety Hang Point
    • Safety Agency Ratings: ETL Listed to Comply with UL1480, UL2043 and CSA60065. Suitable for Use in Air Handling Spaces per NFPA 70 and NFPA 90.
    • Ingress Protection: IP-21
    • Environmental: Testing Humidity: MIL-STD-810G / High and Low Temperature: -20° and 70° C
    • Cutout Diameter: 9.18" (233 mm)
    • Logo: White Removable
    • Product Dimensions (H x W x D): 10.51" (267 mm) x 10.51" (267 mm) x 8.86" (225.1 mm)
    • Shipping Dimensions (H x W x D): 15.04" (382 mm) x 28" (711 mm) x 12.3" (312 mm)
    • Net Weight - lbs: Unit w/ C-Ring = 7.82 lbs (3.54 kg) 2V-rails = 2.1 lbs (.95 kg)
    • Shipping Weight - lbs: 27.19 lbs (12.33 kg) Shipped in Pairs
