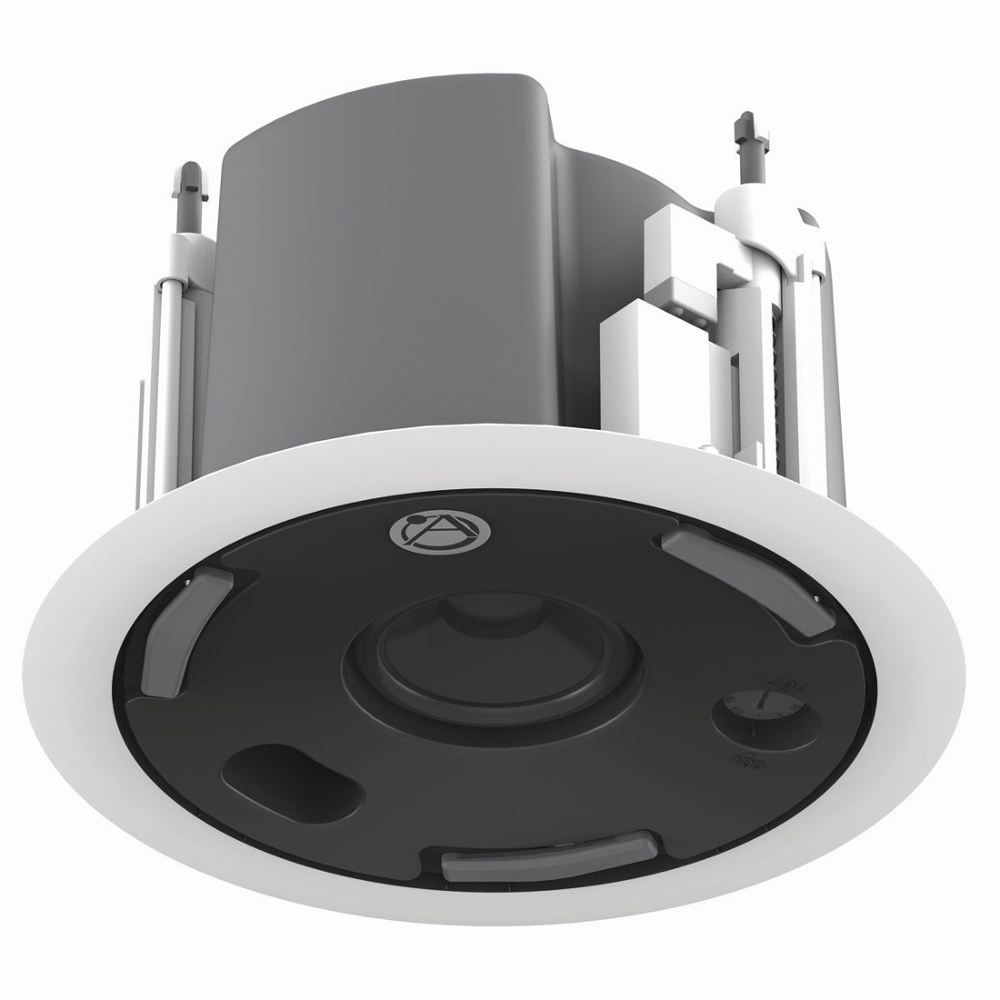

Atlas IED FAP33T 3-Inch Ceiling speaker

The AtlasIED FAP33T Strategy III is a 3" full range loudspeaker with install technology. In-ceiling loudspeakers are subjected to various climate and humidity environments. The FAP33T provides corrosion-free, no-worry operation, since it has no metal screws holding the doglegs in position.

The AtlasIED FAP33T Features Safety First Mounting System (SFMS). This technology prevents mounting tab damage during installation that other offerings suffer.

AtlasIED FAP33T Features:

• SFMS - Safety First Mounting System Patented DesignAllows for Quick, Easy Installation
• 4 Pole Detachable "Phoenix" Style Connector AllowsEasy Pre-Wiring and is Convenient for Daisy Chaining of Additional Speakers
• Enhanced Quality 70.7V/100V Internal TransformersMinimize Insertion Loss
• Increased Dispersion with Improved Waveguide
• Front Mounted Tap Selector Switch for Easy SystemTuning Adjustments Includes Transformer Bypass Setting for Direct CoupledOperation
• "Press Fit" Grilles Blend Better into ContemporaryArchitecture
• Unique "Trap Door" Input Section Allows for Through Conduit Runs withRigid or Flex Conduit

AtlasIED FAP33T Specification:

• Speaker Type: Full Range
• Power TAPS: 2,4, 6, 8, 16 Watts and 6 Ohms
• Frequency Response: 85 Hz - 12 Hz
• Sensitivity: 89.7 dB (1W/1m)
• Dispersion: 135°
• Certified to Safety Listing: UL1480 & UL2043
