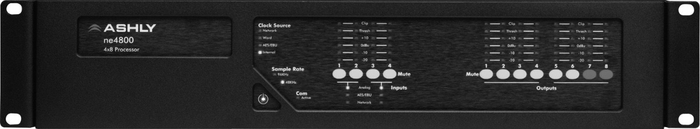

Ashly ne4800ds 4x8 DSP Processor and Matrix Mixer

Standard units are analog line input/output format of ne4800 (4×8) with four option bays supporting network audio, AES3, and mic input options. The DSP signal processing library is extensive and utilizes multiple SHARC 32-bit processors with sample rates of either 48KHz or 96KHz.

Processing blocks includes a 4×8 matrix mixer, a full array of graphic, parametric and all pass equalization, crossover filters including 8th-order Butterworth, Bessel, Linkwitz-Riley and notched Linkwitz-Riley.

All programming is accomplished using standard 10/100 Ethernet or RS-232 protocol and Protea ne Software on a PC platform. Hot-plug software control allows you to plug any function into any channel block even when running live audio with recompiling necessary. Automatic DHCP network IP configuration reduces network set up time. Multi-level software security with password access assures you a tamper-proof audio system.

Ashly NE4800DS Features:

• 4 Analog Inputs
• 8 Analog Outputs
• 10/100 Ethernet and RS-232 Interfaces
