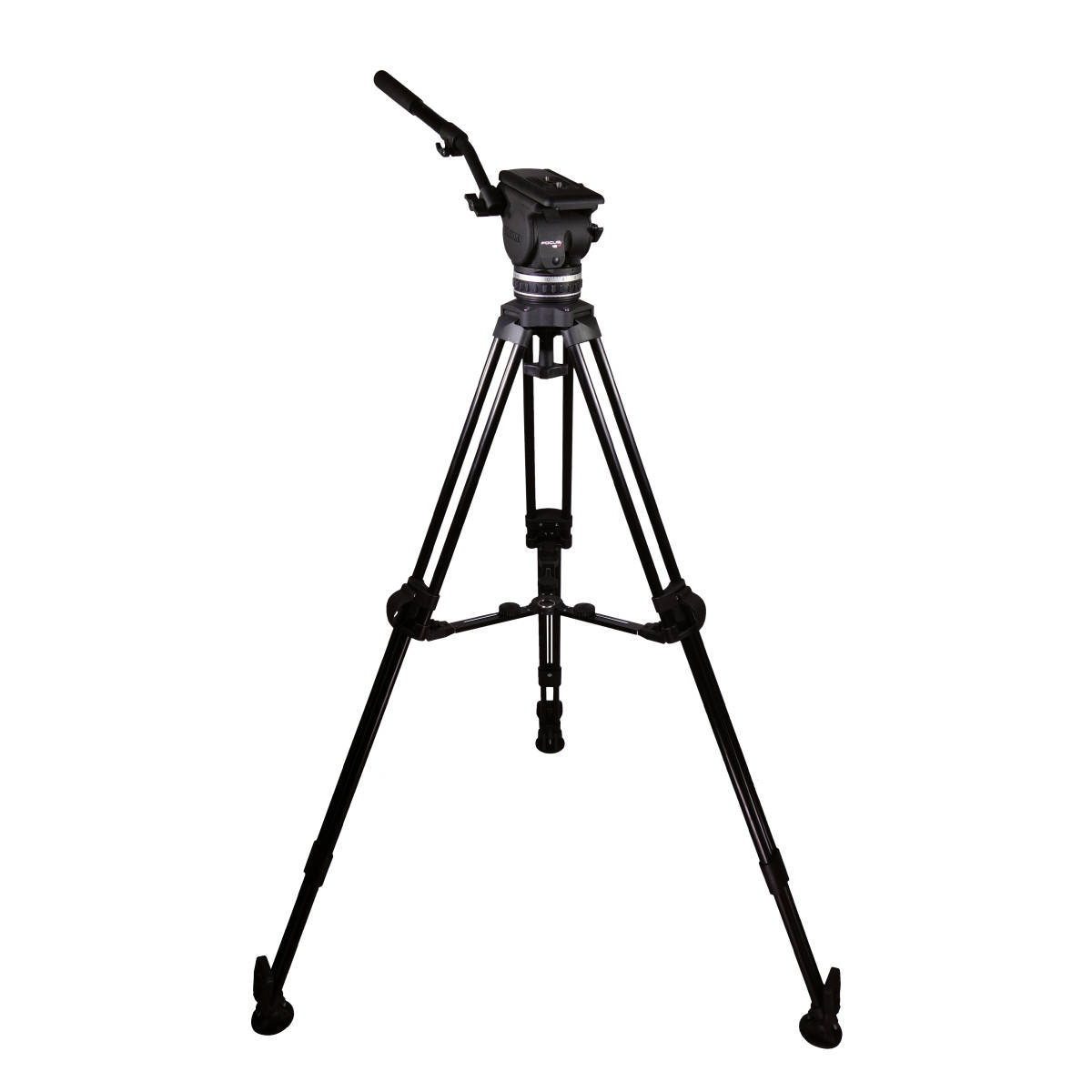

Cartoni HF1800 Focus18 Fluid Head with One Pan Bar

Built of magnesium alloy and aluminum the FOCUS 18 Fluid Head is specifically designed for ENG digital camcorders weighing from 6 to 18 kg (13,2 to 40 lbs).

CARTONI has employed the latest in design technology to offer a Fluid Head which is extremely rugged, lightweight and cost-effective.

FOCUS 18 offers a host of advanced features including infinitely adjustable tension settings, Euro-style quick release camera plate and switchable illuminated bubble level.

The award-winning, patented Fluid dampening system ensures consistent drag levels and smooth camera movements throughout the range.

Featuring an infinitely variable counterbalance with easily-readable numerical reference, the 18 provides excellent performances at any tilt angle from +90 to -70 degrees (-90 with sliding base plate).

FOCUS 18 interfaces with all 100 mm bowl base tripods.

Cartoni Focus 18 Fluid Head Specifications:

• Minimum Payload Capacity: 13 lbs (6 kg)
• Maximum Payload Capacity: 40 lbs (18 kg)
• Weight: 7.7 lbs (3.5 kg)
• Bowl Diameter: 100 mm
• Fluid Drag: Continuous
• Counterbalance: Continuous
• Pan Range: 360°
• Tilt Range: +90°/-70°
• Temperature Range: -40°/+60°
