5.6" LCD Field Monitor Kit

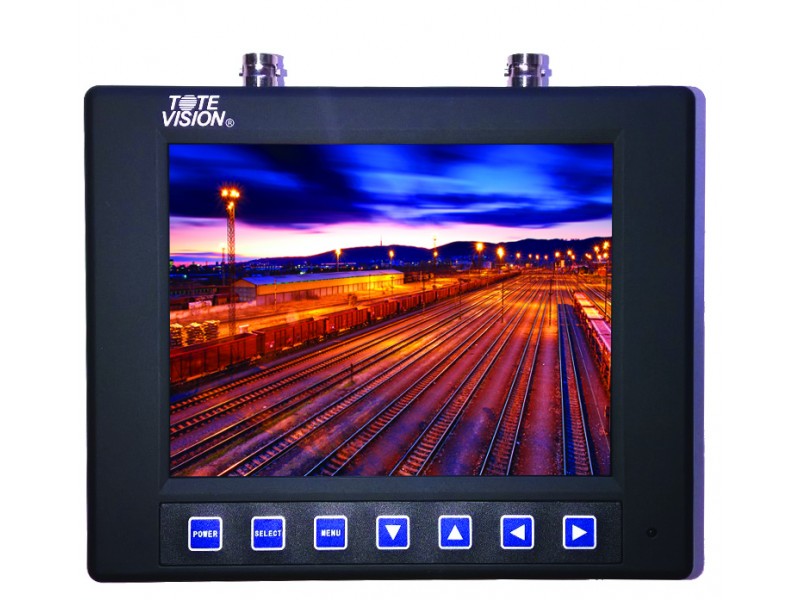

The ToteVision LED-566HD KIT includes their LED-566HD monitor, TB-565 tote bag, and AC-2000 AC adapter.
Learn More
Sale Price: $268.30
List Price: $530.00
You save 49%!
Write the first review.
In Stock

Related Products

The ToteVision LED-566HD KIT includes their LED-566HD monitor, TB-565 tote bag, and AC-2000 AC adapter.  This monitor is used primarily for testing and monitoring video in the field.

The tote bag is made of durable denier nylon and includes a hood for shielding the sun, as well as a neck strap for hands-free viewing.

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.

ToteVision LED-566HD Specifications:

  • Mount: Free-standing, 1/4-20 pad top and bottom
  • Display: 5.6" TFT LCD
  • Resolution: 640 x 480 (displays 480i/p ~1080i/p)
  • Native Aspect Ratio: 4:3
  • Visible Screen Size: 4.4" x 3.3" (112.9 x 84.7mm)
  • Back Light: LED (20K)
  • HD Compatible: Yes
  • Anti-Glare Coating: Yes
  • Brightness: 350 cd/m² (Nit)
  • Contrast: 500:1
  • Dot Pitch: 0.059mm x 0.176mm
  • Response Time: 10/15ms (Rising/Falling)
  • Viewing Angle: 70/70/50/70 degrees
  • Audio Power / Speakers: 2 watts
  • HDMI: x1 Input
  • Composite: x1 BNC Input; x1 BNC Ouput
  • Audio: x1 3.5mm Input; x1 3.5mm Output
  • Power: x1 2.1mm DC Input (AC adapter notincluded)
  • Operating Temp: -4 ~ 140°F / -20 ~ 60°C
  • Humidity: 20% ~ 80% RH
  • Power Requirements: 11VDC ~ 14VDC, 630mA, +pin,- ground
  • Power Consumption: 5 watts (max)
  • Dimension with desk stand and battery pack: 6.2"x 5.1" x 2.2" (158 x 130 x 55 mm)
  • Dimensions without battery pack: 6.2" x 5.1" x1.7" (158 x 130 x 42 mm)
  • Product Weight:
    • Net: 14 oz (400g)
    • Gross: 1.6 lbs (0.7 kg)
  • Case: Rubberized durable ABS Plastic
  • Additional Information:
    • Electromagnetic Shielding
    • Auto Power On function
    • Mirror Image function
    • Automatic Signal Resolution
    • Scaling
    • Auto-sensing
    • NTSC/PAL
