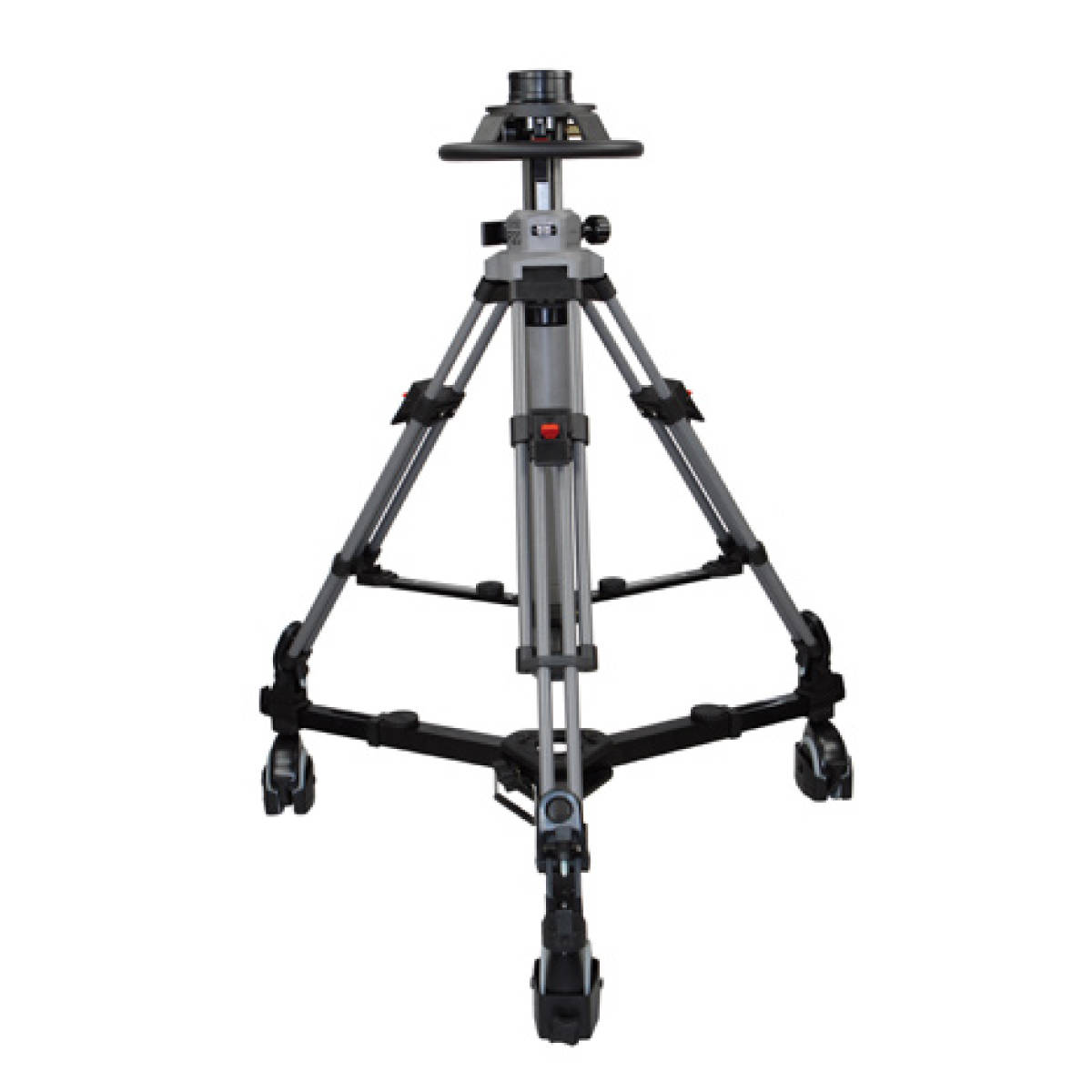

Cartoni P2F18 P20 Pedestal
With Focus 18 Head

OUR PART #:  P2F18

Extremely compact and lightweight, this innovative pedestal is the ideal mate for mobile work and lightweight studio needs.
Learn More

Call for price! Not available online.
List Price: $9,995.00

Similar Products

Extremely compact and lightweight, this innovative pedestal is the ideal mate for mobile work and lightweight studio needs.

The same technical concept which has made the P50 so successful is performed in the CARTONI P20, an extremely rugged and precise dolly and the hexagonal shaped central pneumatic column for maximum stability, smoothness and jerk-free operation.

The column supports a maximum payload of 25Kg (55 lbs) it includes an air pressure gauge, locking brake and safety air pressure valve adjusted at maximum 187 psi. The air pressure inside the column can be set in manually and adjusted to suit the exact weight of the camera configuration.

The foldable dolly features a six-position TRACK LOCK, foot operated brake on each of the 100mm wheel and cable guards. The system includes the manual air pump.

Cartoni Pedestal P20 with Focus 18 Head Specifications:

  • Maximum Pressure: 191.0 psi (13.0 atm)
  • On-Shot Stroke: 40.00
  • Doorway Tracking Width Minimum: 26.4" (67.00 cm)
  • Doorway Tracking Width Maximum: 38.2" (97.00 cm)
  • Capacity: 55.1 lbs (25.00 kg)
  • Wheel Diameter: 3.9" (10.00 cm)
  • Minimum Height: 29.1" (74.00 cm)
  • Maximum Height: 63.4" (161.00 cm)
  • Weight: 30.9 lbs (14.0 kg)
