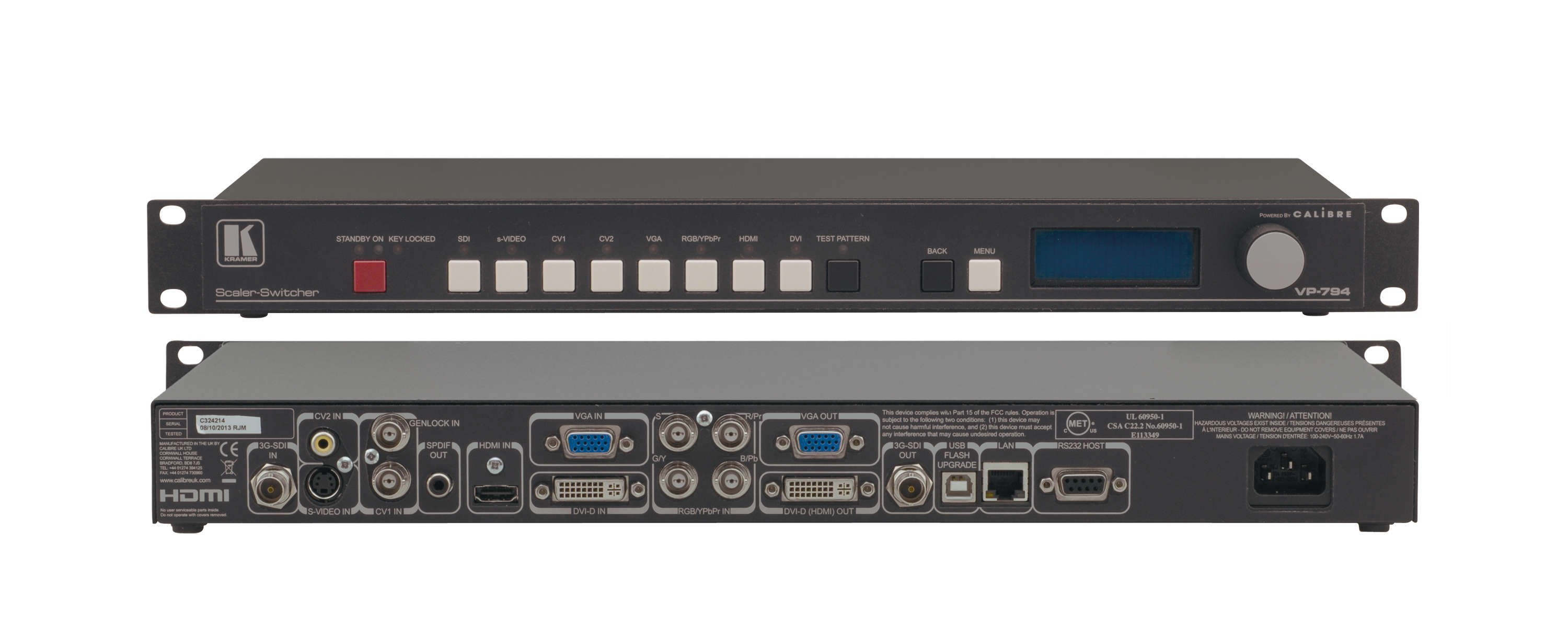

Kramer VP794 Scaler/Switcher
8 Input, Warp, LED Walls

OUR PART #:  VP794

Call for price! Not available online.
List Price: $8,695.00

Related Products

The VP-794 is a high-performance switcher/scaler/edge-blend & warp for analog and digital video signals developed specifically for driving large screen displays and multiple screen applications from video or graphics sources. It up- or down-scales the incoming signal, processes the image with HQV and flexible warping, geometry correction and professional grade edge blending and outputs the signal to 3G HD-SDI, DVI/HDMI, VGA and S/PDIF connectors. VP-794 includes a special mode for driving LED video walls with pixel-accurate output image sizing.

Kramer VP-794 Scaler/Switcher Includes:

  • DVI-D cable
  • User manual/CD
  • Power cord

Kramer VP-794 Scaler/Switcher Features:

  • Full Warp Mapping
  • Powerful Geometry Correction
  • Edge Blending
  • HQV® Video Processing
  • Max. Resolution - 1080p (24/25/48/50/60Hz, Auto)
  • LED Video Walls – down to a resolution as low as 128x96 pixels
  • Superior De-interlacing
  • Selectable Processing Versus Latency
  • Selectable Aspect Ratio Conversion
  • Flexible Color Calibration Controls
  • Audio De-embedding
  • Built-in Test Pattern Generator
  • Genlock (V-Lock) - Accepts bi-level, tri-level sync or black & burst
  • Selectable Lock Modes - Genlock (V-Lock), I/O lock or frame rate conversion
  • Multi-Standard - For CVBS & YC in PAL, NTSC, SECAM formats
  • Live Image Capture
  • Built-in Time Base Corrector
  • Control - RS-232, jog wheel, TCP/IP API and Web Server
  • Picture In Picture
  • Size - 19” (1U) Rack "ears" included.
  • Audio - D/E

Kramer VP-794 Scaler/Switcher Specifications:

  • Inputs:
    • Two composite video on BNC and RCA connectors
    • YC/s-Video on a 4-pin connector
    • Component video YPbPr(S) or RGsB/RGBS on 3/4 BNC connectors
    • HDMI connector
    • DVI with HDCP
    • VGA on a 15-pin HD connector
    • SD/HD/3G HD-SDI on a BNC connector
    • genlock (V-Lock) accepts bi-level, tri-level sync or black & burst, 50/59.94/60Hz formats on a BNC connector
  • Output:
    • SD/HD/3G HD-SDI on a BNC connector
    • DVI/HDMI on a DVI connector
    • VGA on a 15-pin HD connector
    • S/PDIF on an RCA connector
  • Output Resoltions:
    • DVI/VGA common VESA formats 640x480 to 1920x1200, 720p, 1080p
    • 3G HD-SDI in SMPTE formats 480i, 576i, 720p, 1080i, 1080p with selectable audio embed
  • Operating Modes: LED video wall, projection, scaler/switcher/scan converter
  • Minimum LED Videowall Size: 128X96 pixels
  • Projection Mode Warp Apps:
    • Full Warp Mapping
    • 4-Corner
    • Rotate
    • Pin/Barrel
    • Portrait
    • Keystone
  • Projection Mode Edge Blending:
    • 48-bit per pixel
    • 4:4:4 16-bit per color edge blend with de-gamma processing and multi-region black level correction
  • Latency: As low as 0.25-frame progressive inputs, 1.25-fields interlaced inputs
  • Signal Processing: 10-bit signal inputs, 12-bit accurate internal processing; 4-field full resolution SD & HD processing
  • De-Interlacing: Motion adaptive per pixel video de-interlacing, multi-directional diagonal de-interlace filter
  • Power Source:
    • 100-264V AC
    • 35W typical
  • Operating TemperatureE: 32°-104°F (0°-40°C)
  • Storage Temperature: -22°-158°F (-30°-70°C)
  • Humidity: 10% to 90%, RHL non-condensing.
  • Dimensions (WxDxH): 19"x 7.2"x 1U
    • Rack mountable
