NEC Visual Systems NP-M323W Projector
WXGA Projector


Easy to use and at the right price...
Learn More
Our Price: $690.72
List Price: $699.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

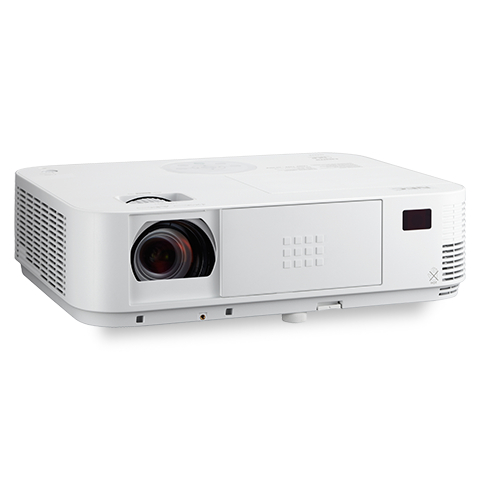

NEC Visual Systems NP-M323W Projector
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Easy to use and at the right price, M Series projectors using the latest DLP(R) technology from Texas Instruments provide all the essential features that you need to connect with your audience. The 3200-lumen, WXGA (1280 x 800) native resolution NEC M323W is ideal for education and small-to-medium-sized business environments that need essential features, including bright images, automatic technologies and eco-friendly appeal. The M323W offers lamp life up to 8,000 hours and a high contrast ratio of up to 10,000:1, while Crestron Roomview aids in emergency messaging. The versatile, color-coded connections to various sources aid in classroom and conference room use, including those in healthcare environments where its DICOM Simulation technology can be utilized. Full 3D display from computer and video sources. AutoSense(TM) intuitively syncs the projector with most computer signals and features one touch optimization. The environment is kept in mind with ECO Mode™ technology, a carbon savings meter, extended filter life, and energy-saving features such as quick startup and direct power off.

NEC Visual Systems 3200 lm WXGA Projector Includes:

  • Remote control
  • Batteries
  • Power cord
  • RGB signal cable
  • Built-in Lens cover
  • User manual
  • Quick Start Guide
  • Product registration card
  • CD-ROM
  • Carrying case

NEC Visual Systems 3200 lm WXGA Projector Features:

  • Easy wireless communication enhances portability.
  • Maintenance free design eliminates the hassle and time spent monitoring and/or changing filters.
  • USB Viewer allows you to present without a PC using a USB flash drive
  • Powerful 20W speaker provides volume needed for large rooms
  • ECO Mode™ technology helps extend lamp life and lowers power consumption with Constant Brightness which prevents the usual drop in brightness over time while maximizing lamp life.
  • Integrated active lens cover mutes audio and video while lowering the lamp power to 25% to conserve energy
  • Automatic keystone correction technology instantly projects a square image even when the projector is set up at a steep offset angle to the screen
  • Filter free with shielded engine eliminates the hassle and time spent monitoring and/or changing filters
  • NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations
  • Automatic keystone correction
  • Wireless LAN (Optional)
  • Active Lens Cover
  • USB Viewer
  • Cornerstone - available using geometric correction software
  • Geometric Correction
  • Auto power on
  • ECO Mode technology
  • Closed captioning
  • Variable audio out
  • Carbon savings meter
  • Virtual Remote
  • Sleep timer
  • Built-in wall color correction
  • Advanced AccuBlend
  • AutoSense

NEC Visual Systems 3200 lm WXGA Projector Specifications:

  • Optical:
    • Display Technology: DLP (0.65" DMD)
    • Light Output(Lumens): 3200 normal
    • Resolution:
      • Native: WXGA 1280 x 800
      • Maximum: WUXGA 1920 x 1200
    • Contrast Ratio (up to): 10,000:1
    • Lamp Type: 225W AC / 135W eco
    • Lamp Life (up to): 3500 hours normal / 8000 hours eco
    • Screen Size (diagonal): 30" to 300" (0.76 to 7.6m)
    • Throw Ratio: 1.2 – 2.04:1
    • Projection Distance: 2.5' to 44.4' (0.76 to 13.53m)
    • Projector Angle: 10.5° to 17.6°
    • Lens:
      • Zoom: 1.7
      • Focus: Manual
      • F number, fnumber: F=2.4 to 3.1, f=17.09 to 29.05mm
    • Keystone Correction: +/- 25° horizontal, +/- 30° vertical
  • Signal Compatibility/Connectivity:
    • Synchronization Range:
      • Horizontal (Analog/Digital): 15-100 kHz
      • Vertical (Analog/Digital): 50-120 Hz
    • Supported Video Standards: NTSC, NTSC 4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
    • SD/HD Video Signal Compatibility: Y/CB/Cr component (with optional adaptor ADP-CV1E) 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    • PC Signal Compatibility: VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA
    • Macintosh Compatibility: Yes
    • Input/Output Terminals:
      • RGB1(analog): VGA 15-pin D-sub
      • RGB3(digital): HDMI w/ HDCP
      • RGB4(digital): HDMI w/ HDCP
      • RGB5(digital): USB A type
      • Video 1: RCA
      • Audio 1: L/R RCA (shared by video sources)
      • Audio 2: 1/8 in. stereo
      • Audio 3: Microphone
      • Monitor out: VGA 15-pin D-sub
      • Audio out: Yes (variable)
    • Audio: 20W speaker
    • External Control: RS-232, IR, Wired LAN, DDC/CI, USB, Wireless LAN (optional)
    • Sync Compatiblity: Separate Sync / Composite Sync / Sync on G
  • Electrical:
    • Power Requirements: 100-240V AC, 50/60 Hz
    • Input Current: 3.3A/1.8A
    • Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving): 283W / 186W / 2.4W / 0.2W
  • Mechanical:
    • Installation Orientation: Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
    • Dimensions (WxDxH): 14.5" x 11.5" x 4.3" (368 x 292 x 108mm)
    • Net Weight: 7.7 lbs. (3.5 kg)
    • Fan Noise: 33 dB normal (27 dB eco)
    • Regulations: UL60950-1, CSA60950-1, FCC Part 15 Class B, ICES-03 Class B
  • Environmental:
    • Operating Temperature: 41-104°F (5-40°C)
    • Humidity: 20-80% non-condensing
    • Storage: -14-122°F (-10-50°C)
  • Limited Warranty:
    • 2 years. First year Instacare Service. Lamp warranty is 1 year or 500 hours, whichever comes first.
