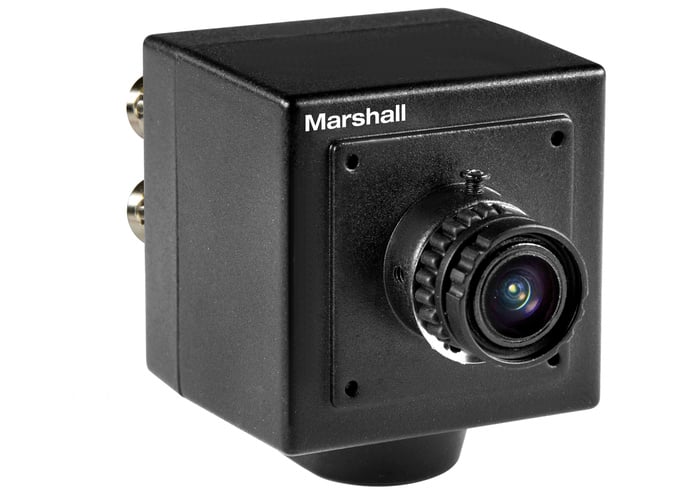

Marshall Electronics CV502-M
2.5MP 60 FPS Non-Broadcast Mini Camera with 3.7mm Lens

OUR PART #:  CV502-M

Marshall Electronics 3rd Generation CV502-M delivers improvement on all aspects of video performance.
Learn More
Our Price: $499.00
List Price: $599.00
You save 17%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Marshall Electronics CV502-M
Qty:
In Stock

Similar Products

Marshall Electronics 3rd Generation CV502-M delivers improvement on all aspects of video performance. Utilizing a state of the art 1/2.8-inch high-speed sensor packing 2,476,296 pixels (2.5 Megapixels) of clear, crisp video capture through full sized 3G/HD-SDI (BNC) outputs at non-Broadcast resolutions of 1920x1080i, 1920x1080p, 1280x720p at frame-rates of 60/50/30/25 fps. Proprietary pixel technology offers the lowest noise ratio on the market today capturing sharp, vivid color images in very low light conditions—as low as 0.05 lux. Industry leading low power consumption draws very low power in full 1920x1080p60/50fps modes. The CV502-M Pro-Series POV Camera continues to offer Field-of-View flexibility with interchangeable lenses and convenience of HD-SDI outputs maintaining a quality standard for non-Broadcast POV camera applications. Its RS485 connectivity provides remote camera control communication via SONY VISCA or PELCO protocols. It includes both 3.7mm Megapixel M12 Prime Lens and power supply.

NOTE: See Attachment for Marshall Electronics CV502-M Mini Camera Specifications

Applications:

  • Professional Sports
  • College Sports
  • OB Vans/Trucks
  • Concert & Studio Music Video
  • Performing Arts
  • Culinary Shows
  • Hidden Camera Shows
  • International Racing Circuits
  • Off-road Racing
  • Horse Racing
  • House of Worship
  • POV Video Shots

Marshall Electronics CV502-M Mini Camera Features:

  • 2.5 Megapixel 1/3" CMOS Sensor
  • 3.7mm Megapixel M12 Prime Lens installed (interchangeable lens mount - other lenses sold separately)
  • Resolutions/Frame Rates: 1920x1080p60/50/30/25, 1920x1080i60/50, 1280x720p60/50/30/25fps
  • 3G/HD-SDI (BNC) & CVBS (BNC) built into rear panel
  • Captures sharp & vivid color images at 0.2 lux (low light sensitive)
  • New WDR function supports high speed and high sensitivity to various light sources
  • OSD Menu Joystick, RS-485 connectable (Pelco/Visca),
  • Stepped (Red/Blue) Gain Control, Gamma, and Shutter adjust
  • 12V Power Supply Included
  • Free Downloadable Software Control
  • Camera Control Software Interface Screen Capture:
