Marshall Electronics CV343-CSB
2.5MP Full HD Compact Broadcast POV Camera with CS Mount

OUR PART #:  CV343-CSB

Marshall Electronics 3rd Generation CV343-CSB Broadcast Video POV Camera brings improvement on all aspects of video performance.
Learn More
Our Price: $499.00
List Price: $599.00
You save 17%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Marshall Electronics CV343-CSB
Qty:
In Stock

Similar Products

Marshall Electronics 3rd Generation CV343-CSB Broadcast Video POV Camera brings improvement on all aspects of video performance. Utilizing a state of the art 1/3-inch high-speed sensor packing 2,476,296 pixels (2.5 Megapixels) of clear, crisp video capture through full sized 3G/HD-SDI (BNC) outputs at resolutions of 1920x1080i, 1920x1080p, 1280x720p and frame-rates of 59.94/29.97fps. Newer proprietary pixel technology delivers the lowest noise ratio on the market today, capturing sharp, vivid color images in very low light—as low as 0.05 lux. Industry leading low power consumption draws very low power in full 1920x1080p59.94fps modes. The CV343-CSB Pro-Series POV Camera continues to offer Field-of-View flexibility with interchangeable CS/C-mount Varifocal lenses and convenience of HD-SDI outputs maintaining a broadcast standard for POV camera applications. Its RS485 connectivity provides remote camera control communication via SONY VISCA or PELCO protocols.

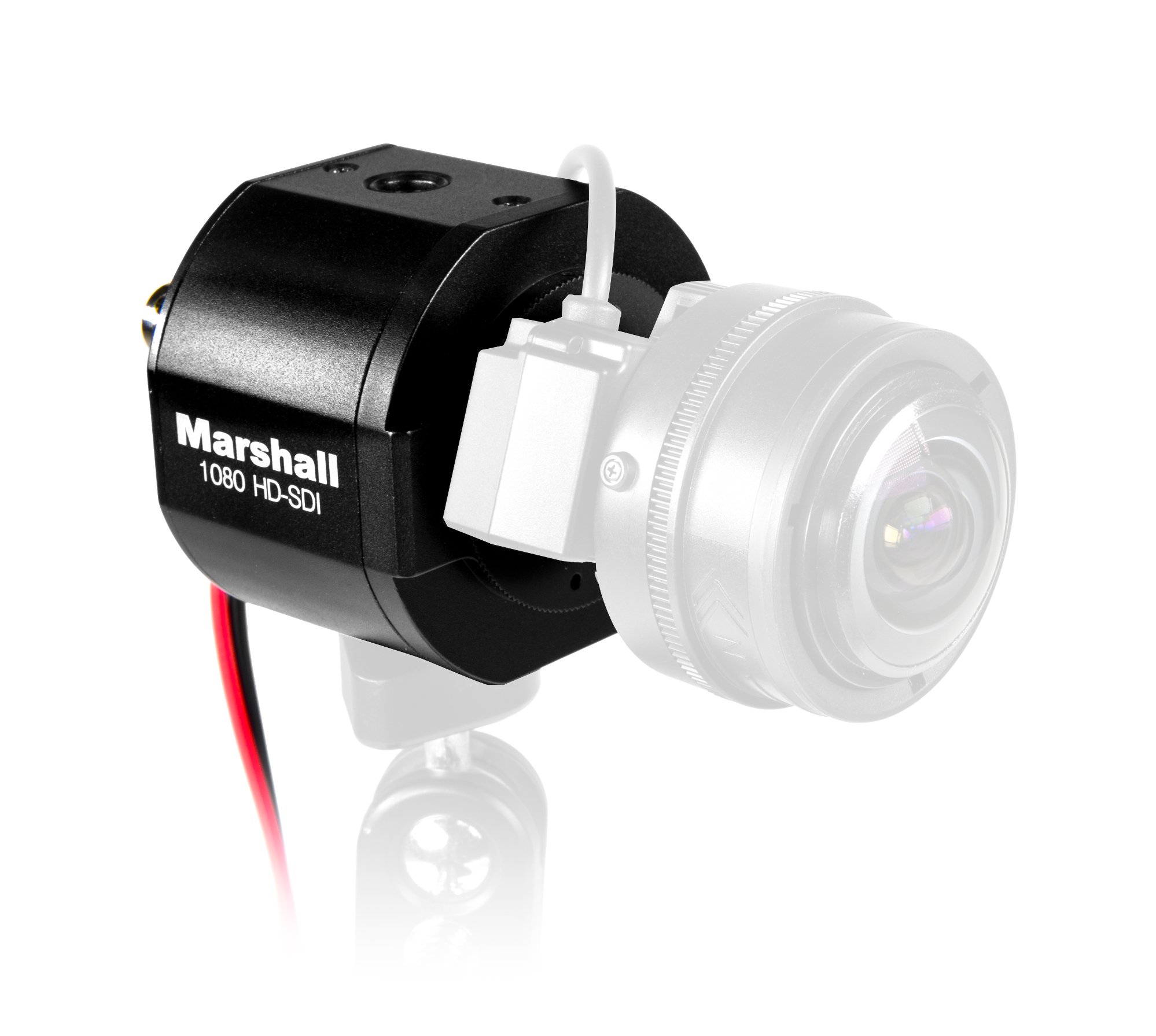

Note: Lens & support apparatus shown above are sold separately

Marshall Electronics CV343-CSB/CS Camera Features:

  • 2.5 Megapixel 1/3" CMOS Sensor
  • CS/C Mount with DC-Auto Iris (lenses sold separately)
  • Resolution:
    • 1920x1080p59.94/29.97
    • 1920x1080i59.94
    • 1280x720p59.94/29.97fps
  • 3G/HD-SDI (BNC) & CVBS (BNC) built into rear panel
  • Captures sharp, vivid, color images as 0.2 lux (low-light sensitive)
  • New WDR function supports high speed and high sensitivity to various light sources
  • OSD Menu Joystick and RS-485 connectable (Pelco/Visca Protocols)
  • Stepped (Red/Blue) Gain Control, Gamma, and Shutter adjust
  • 12V Power Supply Included

Marshall Electronics CV343-CSB/CS Camera Specifications:

  • Sensor:
    • Image Sensor: 1/3" Progressive CMOS (Approx. 2.1 mega)
    • Scanning System: 16:9 Progressive
    • Sync. System: Internal
    • Effective Pixel: 1920(H) x 1080(V)
    • Min. Illumination: 0.2 Lux (Color), 0.1 Lux (Black/White), 0.005 Lux (DSS on)
    • Horizontal Resolution: 1000TVL
  • Optics:
    • Lens:
      • CV343 (CS/C mount w/ DC-Auto Iris) - variable lens options (lenses sold separately)
  • Functions:
    • Back Light Compensation: WDR (Wide Dynamic Range)/BLC (Back Light Compensation), HLC (High Light Compensation)
    • Exposure: Auto / Manual
    • White Balance: Auto (3,000°K~8,000°K) / ATW (1,900°K~11,000°K) / Manual
    • Day & Night System: AGC (Automatic Gain Control) / True Day/Night auto switch based on light environment (auto/manual) (ICR)
    • Electronic Shutter:
      • NTSC: 1/30~1/30000
      • PAL: 1/25~1/30000, DSS ( ~X64)
    • Functions:
      • Privacy Mask
      • Image Mirror
      • 3DNR
      • Flicker-less
      • Sharpness
      • Defog
      • DIS (Digital Image stabilizer)
      • NegArt
      • Freeze
      • B&W
  • Video Outputs:
    • 3G-SDI (+optional Audio) - HD-SDI (+optional Audio):
      • SMPTE 424M (2.97Gbps):
        • 1920x1080p @ 59.94fps
      • SMPTE 292M (1.485Gbps):
        • 1920x1080p @ 29.97
        • 1920x1080i @ 59.94
        • 1280x720p @ 59.94/29.97fps
    • CVBS: (BNC) Composite-CVBS (BNC): 700TVL NTSC/PAL
  • Audio Input:
    • MIC Input:
      • Mic Level (1Vrms). 2.5V Mic bias
      • 16-, 20-, 24-, 32-bits audio format. 48KHz sample rates
      • Gain: -12dB ~ 59.5dB
  • General:
    • Operation Temperature: -10°C ~ 50°C
    • Power Input: 12VDC (7V to 15VDC), power supply included
    • Power consumption: Max 6W
    • Dimensions:
      • CV343: 60(W) x 57(H) X 45(D) mm
      • CV502: 37(W) X 37(H) X 35(D)mm
    • Weight (Net):
      • CV343: Approx. 160g
      • CV502: Approx. 140g
  • Control Interface:
    • RS-485:
      • PELCO-P/D
      • SONY-VISCA protocol
      • 8-bits data, 1 stop bit, no parity, 2400~115200bps
    • Camera Control Interface Screen Capture:

Free POV Camera Control Application
