Datavideo DAC-50S HD/SD-SDI to Analog Converter

OUR PART #: DAC-50S MFR #: DAC-50S

Copied to clipboard

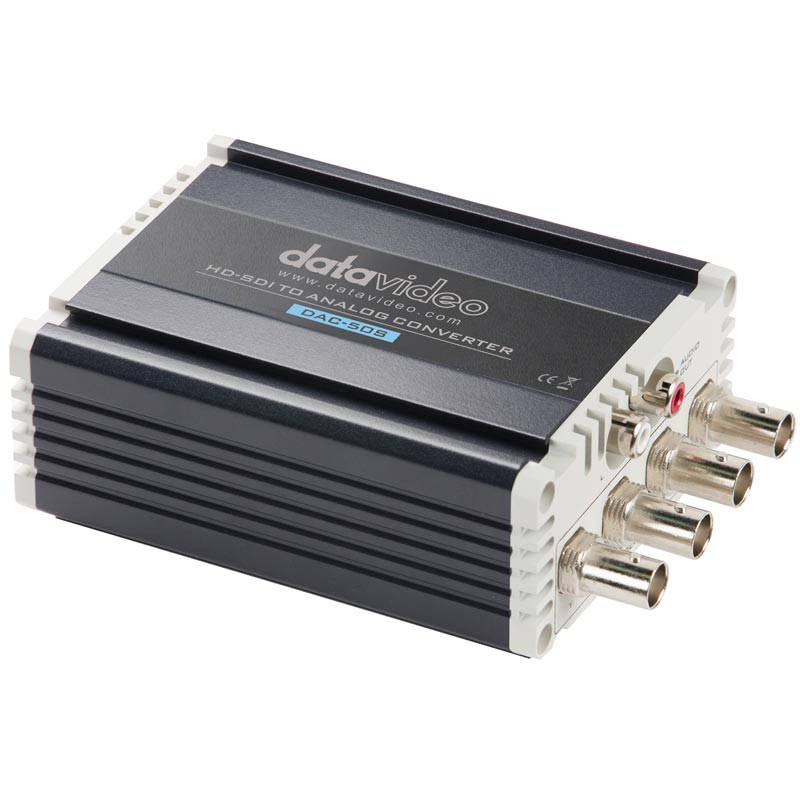

Datavideo DAC-50S HD/SD-SDI To Analog Converter Image 1
Datavideo DAC-50S HD/SD-SDI To Analog Converter Image 2
Datavideo DAC-50S HD/SD-SDI To Analog Converter Image 3
Datavideo DAC-50S HD/SD-SDI To Analog Converter
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The DAC-50S converts 3G/HD-SDI video to one of the following analogue outputs:

  • Component (YUV) output & 1 x composite (CV) output including stereo audio
  • S-Video (Y/C) output & 2 x composite (CV) outputs including stereo audio

The outputs can be easily connected to an analogue video monitor or deck devices such as BataCAM and VHS.

The DAC-50S down scales the signal for the analogue output.

The DAC-50S also provides an SDI Loop-thru output.

It further outputs one pair of analogue audio channels selected from 16 de-embedded SDI audio channels (Selection is determined by DIP switch settings).

The DAC-50S is housed in a rugged aluminum frame, making it durable enough to endure the roughest conditions.

Ideal for use with RMK-2 (Rackmount kit) and also MB-4 Battery holder.

Features

  • Converts 3G/HD-SDI input to analogue video and 2 unbalance analogue audio channels
  • 2 available output combinations:
    • YUV output & CV output
    • S-Video (Y/C) output & Two CV outputs
  • Supports PAL/ NTSC output
  • Define de-embedded audio channels sent to analogue audio outputs via a DIP switch
  • Solid aluminum housing
  • Ideal for use with RMK-2 (Rackmount kit) and also MB-4 Battery holder
