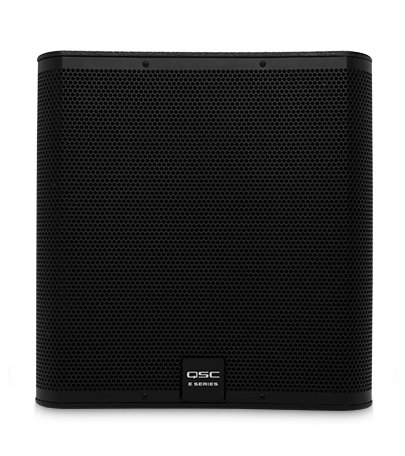

QSC E18SW
18-Inch Passive Subwoofer, 800-Watt

OUR PART #  E18SW

Our Price: $749.99
List Price: $875.00
You save 14%! (Low Price Guarantee)
In Stock

The E18SW is a high-performance direct radiation subwoofer with a single, 800W, 18-inch, aluminum frame woofer. It’s designed to produce crushing low-end for live performance with kick-drum and bass in the PA or for high-level, high-energy dance music. A threaded, M20 pole socket is provided for sub/satellite use with any of the E Series two-way models. For portable applications it includes attachment points for four optional casters. The subwoofer’s 4-ohm impedance means that a single woofer can be optimally powered by a less expensive amplifier.

E Series loudspeakers will perform very well with any quality, professional power amplifier – but by taking advantage of the complete E Series Entertainment System, more performance and options are available. Today’s powered loudspeakers rely on finely tuned digital signal processing (DSP) to achieve a higher level of performance. When used with QSC GXD or PLD amplifiers or with a QSC TouchMix digital mixer, E Series loudspeakers can also take advantage of advanced DSP. QSC has developed E Series DSP settings for all three platforms. These settings support a variety of applications including live sound reinforcement (with and without subwoofers), stage monitoring, dance music and karaoke.

QSC E18SW Features:

  • High output, professional quality sound with 800 W continuous power
  • E Series Entertainment System – Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers orTouchMix digital mixers.
  • Titanium diaphragm for high fidelity and long life
  • Rugged tour-grade textured paint
  • Foam-lined perforated steel grill
  • E18SW includes speaker pole

QSC E18SW Specifications:

  • Configuration: 1 x 18-inch, subwoofer, non-powered
  • Frequency Range (-10 dB): 50 Hz to 120 Hz
  • Coverage Angle: N/A
  • Power capacity: continuous/peak: 800 W / 3200 W
  • Sensitivity: 97 dB, 1W @ 1m
  • Ouput (peak SPL @ 1 m): 132 dB
  • Drivers
    • LF: 457 mm (18-inch) driver with 100 mm (4-inch) voice coil
    • HF: N/A
  • Nominal Impedance: 4 Ohms
  • Cross-over:  Recommended 80 - 120 Hz LPF
  • Input connectors:  (2) NL4, 1 barrier strip
  • Enclosure: Rectangular, plywood, black texture paint finish. Four side-mounted handles. Rear panels provision for optional casters.
  • Perforated, powder-coated steel grille with foam lining
  • Mounting and suspension: M20 threaded pole-mount socket
  • Net weight: 43 kg / 94 lbs
  • Shipping weight:  48 kg / 105 lbs
  • Dimensions: 590 x 616 x 605 mm (23.2 x 24.2 x 23.8 in)
