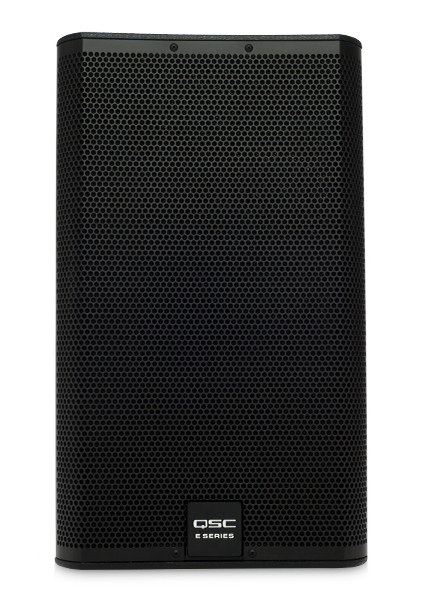

QSC E15
15-Inch Passive Speaker, 500-Watt

OUR PART #  E15-QSC

Our Price: $549.99
List Price: $683.33
You save 20%! (Low Price Guarantee)
In Stock

The E15 is a trapezoidal, two-way loudspeaker using a 15-inch, 500W, die cast aluminum frame woofer with a 3.5-inch voice coil. It is intended for use when high-power and authoritative low-end are needed from a full-range loudspeaker. A 2.8” compression driver attached to the 75° DMTTM waveguide assures that even distant listeners will be well covered.

E Series loudspeakers will perform very well with any quality, professional power amplifier – but by taking advantage of the complete QSC entertainment system, more performance and options are available. Today’s powered loudspeakers rely on finely tuned digital signal processing (DSP) to achieve a higher level of performance. When used with QSC GXD or PLD amplifiers or with a QSC TouchMix digital mixer, E Series loudspeakers can also take advantage of advanced DSP. QSC has developed E Series DSP settings for all three platforms. These settings support a variety of applications including live sound reinforcement (with and without subwoofers), stage monitoring, dance music and karaoke.

QSC E15 Features:

  • High output, professional quality sound with E15 – 500W continuous power
  • E Series Entertainment System – Advanced digitalsignal processing tunings and options using QSC GXD, PLD amplifiers orTouchMix digital mixers.
  • Titanium diaphragm for high fidelity and long life
  • Rugged tour-grade textured paint
  • Foam-lined perforated steel grill
  • Available U-Style Yoke and M8 rigging kit for permanent installation
  • Dual angle pole socket

QSC E15 Specifications:

  • Configuration: 1 x 15-inch, 2-way, non-powered
  • Frequency Range (-10 dB): 59 Hz – 20 kHz
  • Coverage Angle: 75° conical
  • Power capacity: continuous/peak: 500 W / 2000 W
  • Sensitivity:  97 dB, 1W @ 1m
  • Output (peak SPL @ 1 m): 131 dB
  • Drivers
    • LF: 380 mm (15-inch) driver with 76 mm (3.5-inch) voice coil
    • HF: 38 mm (1.5-inch) exit, 76 mm (2.8-inch) voice coil, compression driver
  • Nominal Impedance: 8 Ohms
  • Cross-over: Full-range only 1.55 kHz
  • Input connectors:  2x NL4, 1 barrier strip
  • Enclosure: Trapezoidal, plywood, black texture paint finish. Two side-mounted handles, perforated, powder-coated steel grille with foam lining.
  • Mounting and suspension: 6x M8 suspension points, dualangle, 35 mm pole-socket
  • Net weight: 31 kg (68 lbs)
  • Shipping weight: 34 kg (75 lbs)
  • Dimensions:  420 x 716 x 445 mm (16.5 x 28.2 x 17.5 in)

QSC E15
15-Inch Passive Speaker, 500-Watt

OUR PART #  E15-QSC

Product Information:

The E15 is a trapezoidal, two-way loudspeaker using a 15-inch, 500W, die cast aluminum frame woofer with a 3.5-inch voice coil. It is intended for use when high-power and authoritative low-end are needed from a full-range loudspeaker. A 2.8” compression driver attached to the 75° DMTTM waveguide assures that even distant listeners will be well covered.

E Series loudspeakers will perform very well with any quality, professional power amplifier – but by taking advantage of the complete QSC entertainment system, more performance and options are available. Today’s powered loudspeakers rely on finely tuned digital signal processing (DSP) to achieve a higher level of performance. When used with QSC GXD or PLD amplifiers or with a QSC TouchMix digital mixer, E Series loudspeakers can also take advantage of advanced DSP. QSC has developed E Series DSP settings for all three platforms. These settings support a variety of applications including live sound reinforcement (with and without subwoofers), stage monitoring, dance music and karaoke.

QSC E15 Features:

  • High output, professional quality sound with E15 – 500W continuous power
  • E Series Entertainment System – Advanced digitalsignal processing tunings and options using QSC GXD, PLD amplifiers orTouchMix digital mixers.
  • Titanium diaphragm for high fidelity and long life
  • Rugged tour-grade textured paint
  • Foam-lined perforated steel grill
  • Available U-Style Yoke and M8 rigging kit for permanent installation
  • Dual angle pole socket

QSC E15 Specifications:

  • Configuration: 1 x 15-inch, 2-way, non-powered
  • Frequency Range (-10 dB): 59 Hz – 20 kHz
  • Coverage Angle: 75° conical
  • Power capacity: continuous/peak: 500 W / 2000 W
  • Sensitivity:  97 dB, 1W @ 1m
  • Output (peak SPL @ 1 m): 131 dB
  • Drivers
    • LF: 380 mm (15-inch) driver with 76 mm (3.5-inch) voice coil
    • HF: 38 mm (1.5-inch) exit, 76 mm (2.8-inch) voice coil, compression driver
  • Nominal Impedance: 8 Ohms
  • Cross-over: Full-range only 1.55 kHz
  • Input connectors:  2x NL4, 1 barrier strip
  • Enclosure: Trapezoidal, plywood, black texture paint finish. Two side-mounted handles, perforated, powder-coated steel grille with foam lining.
  • Mounting and suspension: 6x M8 suspension points, dualangle, 35 mm pole-socket
  • Net weight: 31 kg (68 lbs)
  • Shipping weight: 34 kg (75 lbs)
  • Dimensions:  420 x 716 x 445 mm (16.5 x 28.2 x 17.5 in)
