QSC E10-QSC
10-Inch Passive Loudspeaker, 300-Watts

OUR PART #:  E10-QSC

The E10 is a compact, two-way loudspeaker with a 10-inch...
Learn More

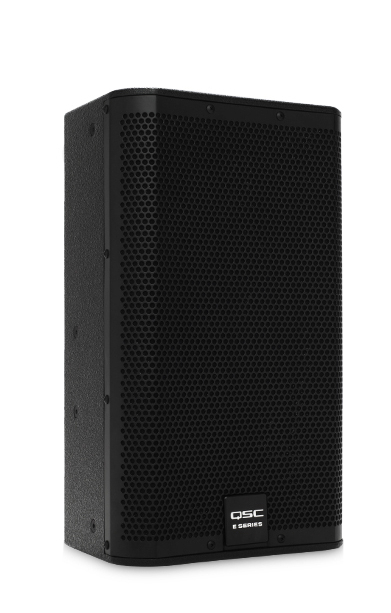

QSC E10-QSC - Vertical Hanging View
QSC E10-QSC - Hanging View
QSC E10-QSC - Horizontal View

Click a thumbnail to see more images. (6 total)

Our Price: $379.99
List Price: $475.99
You save 20%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

QSC E10-QSC
Qty:
In Stock
Similar Products

The E10 is a compact, two-way loudspeaker with a 10-inch, die cast frame woofer with a 2.5-inch voice-coil housed in a multi-purpose enclosure that’s at home in stage monitor or main PA deployment. It incorporates QSC’s DMT (Directivity Matched Transition) design with a wide 85° coverage. When used as a stage monitor, the E10 is angled up at a 55° angle allowing it to be placed near the performer when used on a crowded stage.

E Series loudspeakers will perform very well with any quality, professional power amplifier – but by taking advantage of the complete QSC entertainment system, more performance and options are available. Today’s powered loudspeakers rely on finely tuned digital signal processing (DSP) to achieve a higher level of performance. When used with QSC GXD or PLD amplifiers or with a QSC TouchMix digital mixer, E Series loudspeakers can also take advantage of advanced DSP. QSC has developed E Series DSP settings for all three platforms. These settings support a variety of applications including live sound reinforcement (with and without subwoofers), stage monitoring, dance music and karaoke.

QSC E10 Features:

  • High output, professional quality sound with 300 Wcontinuous power
  • E Series Entertainment System – Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers orTouchMix digital mixers.
  • Rugged tour-grade textured paint
  • Foam-lined perforated steel grill
  • Suitable for main PA and stage monitor
  • Available U-Style Yoke and M8 rigging kit for permanent installation
  • Dual angle pole socket

QSC E10 specifications:

  • Configuration: 1 x 10-inch, 2-way, non-powered
  • Frequency Range (-10 dB): 65 Hz – 20 kHz
  • Coverage Angle: 85° conical
  • Sensitivity: 95dB, 1W @ 1 m
  • Power capacity:
  • continuous/peak: 300 W / 1200 W
  • Output (Peak SPL @ 1m): 126 dB
  • Drivers
    • LF: 254 mm (10-inch) driver with 65 mm (2.5-inch) voice coil
    • HF: 25 mm (1-inch) exit, 45 mm (1.75-inch) voice coil, compression driver
  • Nominal Impedance: 8 Ohms
  • Cross-over: Full-range only, 1.8kHz
  • Input Connections: 2x NL4, 1x barrier strip
  • Enclosure: Multi-angle plywood, black texture paint finish. One top-mounted handle. Perforated, powder-coated steel grille with foam lining.
  • Mounting and suspension: 6x M8 suspension points, dual angle, 35 mm pole-socket
  • Net weight: 20 kg / 44 lbs
  • Shipping weight: 23 kg / 50 lbs
  • Dimensions: 329 x 560 x 330 mm (13 x 22 x 13 in)
Yoke For QSC E10
QSC E10-YOKE Yoke For QSC E10
The QSC E10-YOKE is a U-Style yoke for permanent installation of the QSC E10 speaker. Note: QSC E10 Speaker is not included. For more information, please call your Full Compass Sales Pro.
