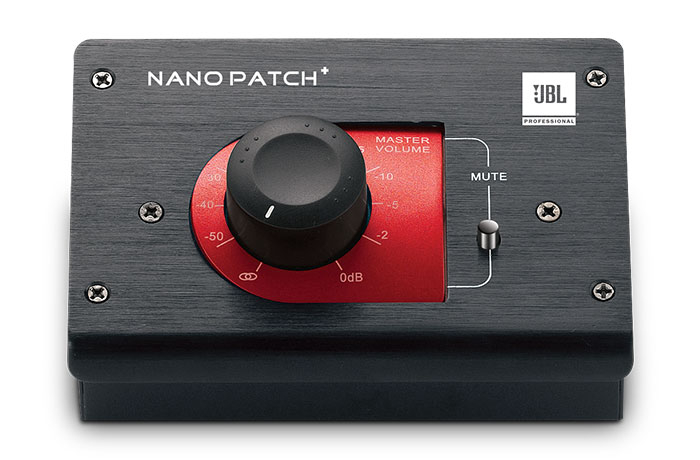

JBL NPATCH+
Compact 2-Channel Passive Volume Controller

OUR PART #:  NPATCH+

The Nano Patch+ is a compact 2-channel passive volume controller.
Learn More
Our Price: $59.00
List Price: $69.00
You save 14%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

JBL NPATCH+
Qty:
In Stock

Similar Products

The Nano Patch+ is a compact 2-channel passive volume controller. One of the benefits of passive volume attenuation is that you no longer have to control volumes with your software’s master volume fader. Reducing levels from your software only reduces the audio bit depth. The Nano Patch+ allows the user to keep their software masters at unity and attenuate the audio to your active monitors with a passive controller. This results in maximum audio resolution.

JBL NPATCH+ Features:

  • Super compact 2 channel analog passive volume control
  • Rotary volume attenuation control
  • Mute button
  • Completely transparent operation
  • No power required
  • (2) combo inputs (balanced and unbalanced)
  • (2) TRS outputs (balanced and unbalanced)
  • (1) Mini jack I/O
  • Available in black and silver
  • No signal conversion from unbalanced to balanced

JBL NPATCH+ Specifications:

  • Audio Inputs
    • Input Connectors 1: 2 x Combination XLR/TRS 1/4-inch (6.5 mm) balanced/unbalanced
    • Input Connectors 2: 1 x 1/8 inch (3.5 mm) Mini Jack
    • Maximum Input Level: +26 dB
    • Input Impedance: 5K ohms
  • Audio Outputs
    • Output Connectors 1: (2) TRS 1/4 inch (6.5 mm) balanced/unbalanced
    • Max Output Level: > +26 dB
    • Output Connectors 2: 1 1/8 inch (3.5 mm) Mini Jack
    • Impedance: 0-5K ohms
  • Performance:
    • Frequency Response: 0/0.15 dB (10 Hz - 40 KHz)
    • Signal-To-Noise: better than -120 dB
    • Channel Cross Talk: > -80 dB
    • Distortion: < 0.0004%
  • Physical
    • Dimensions (W x D x H): 5.1 x 3.75 x 2.0 inches (130 mm x 95 mm x 51 mm)
    • Weight: 0.8 lbs (.34 kg)
