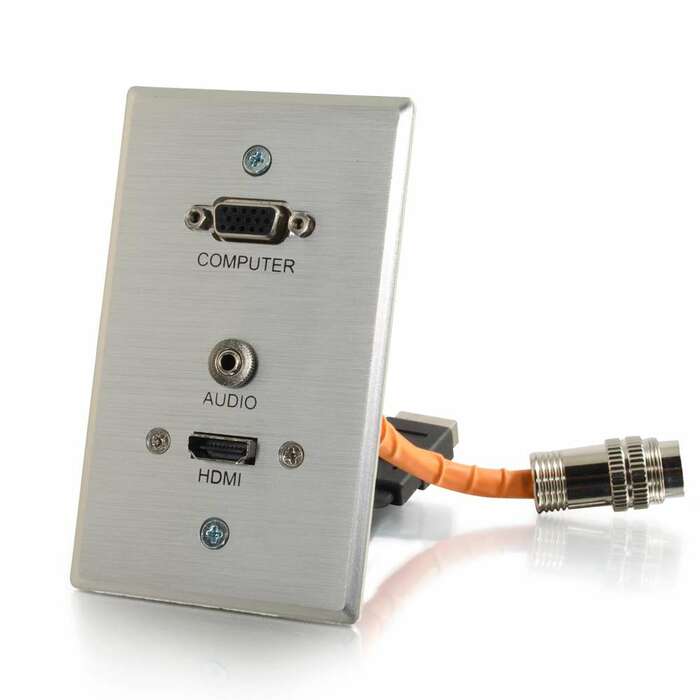

Cables To Go 60145 RapidRun VGA + 3.5mm Single Gang Wall Plate with HDMI Pass Thru

C2G's RapidRun® VGA + 3.5mm single gang aluminium wall plate features an HDMI pass through and can be used with a RapidRun Multi-Format Runner for projectors and any display requiring a VGA, 3.5mm, and HDMI audio/video connection. Well suited for educational and institutional installations, this wall plate allows VGA video and 3.5mm audio to be run over one runner cable, while the HDMI pass through allows for a seamless transition to an in-wall HDMI cable.

RapidRun is designed to be the standard for in-wall audio/video installations. Using pre-terminated Break-away flying leads and wall plates with an in-wall runner ensures flexible, efficient, high quality connections for all types of equipment, with no field terminations.

C2G RapidRun VGA + 3.5mm Single Gang Wall Plate Features:

• Supports VGA video and Stereo Audio signals over a RapidRun Multi-format runner
• Flexible HDMI pigtail for easy installation in a wall box
• Compatible with standard single gang wall boxes
• Aluminum construction for durability and long life

C2G RapidRun VGA + 3.5mm Single Gang Wall Plate Specifications:

• Model Number: 60145
• Color: Aluminum
• Connector 1: (1) VGA Female, (1) 3.5mm Stereo Female, (1) HDMI Female
• Connector 2: (1) RapidRun 15-pin Male, (1) HDMI Female
• Warranty: 3 Years
• Weight: 0.426 lb

NOTE:

For full technical specifications, please view the spec sheet located on the Documentation tab

Each complete RapidRun Multi-Format solution requires a break-away flying lead or wall plate to terminate each end of the runner cable. Each runner requires (2) break-away flying leads, (2) wall plates, OR (1) break-away flying lead and (1) wall plate. Due to constraints of available conductors for signal transmission, EDID signals are not supported with this product.
