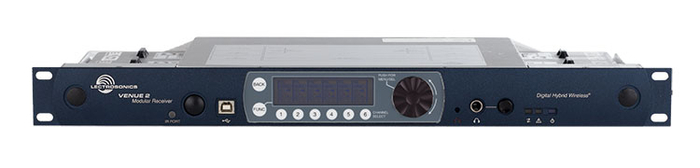

Lectrosonics VRM2WBL
Modular Receiver System, Wide Band Venue 2

OUR PART #:  VRM2WBL

Our Price: $2,459.00
List Price: $3,435.00
You save 28%!
Write the first review.
Lectrosonics VRM2WBL
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Venue 2 Receiver is a modular solution that deals with a congested RF spectrum with a variety of options that allows a system configuration to be idealized for a particular installation or application.

Flexibility is the core concept of the design. The receiver modules can be operated separately, each with switched diversity reception for a total of six audio channels, or operated in pairs for more robust diversity reception with one audio channel per module pair. Combinations can also be used for special applications where some modules operate independently and others are paired.

The receiver modules are easy to change with no tools required. The wideband multicoupler allows the use of any frequency module in any position, except when modules are paired for ratio diversity reception.

Lectrosonics VRM2WBL Features:

  • Six-channel modular configuration
  • Ratio or Antenna Phase diversity reception
  • 3-block tuning for up to 76 MHz and 3072 synthesizedUHF frequencies per receiver module
  • IR port for quick transmitter setup
  • DSP emulation modes for compatibility with analogwireless systems in addition to the Digital Hybrid mode
  • iQ™ dynamic tracking filters for enhanced RFperformance
  • Wireless Designer™ setup and control softwareincluded
  • Talkback function with select transmitters
  • Ethernet, USB and RS-232 computer interface ports

Lectrosonics VRM2WBL Specifications:

  • VRM2WBL tunes bands A1, B1, C1 - 470.100 to 691.175MHz
  • Band A1: 470.100 - 537.575 MHz (blocks 470, 19, 20)
  • Band B1: 537.600 - 614.375 MHz* (blocks 21, 22, 23) (*North Americantransmitter models exclude the radio astronomy band
    from 608 to 614 MHz.)
  • Band C1: 614.400 - 691.175 MHz (blocks 24, 25, 26)
  • Frequency selection: Up to 3072 frequencies
  • Frequency selection steps: Selectable; 100 kHz or 25kHz
  • Wideband Multicoupler: Built in antenna mulitcouplercovers a 230 MHz Pilot tone: 25 to 32 kHz; 5kHz deviation; unique pilot tonefrequency for each selected carrier frequency (Hybrid mode) range.
  • Deviation: +/- 75 kHz (max) (Hybrid mode)
  • Receiver Type: Triple conversion superheterodyne
  • Frequency Stability: +/- 0.001
  • Multicoupler Bandwidth: 470 - 691 MHz or 537 - 768MHz
  • Sensitivity (20 dB Sinad): 0.9 uV
  • Rejection: 85 dB
  • Frequency Response: 32 Hz to 20 kHz (+/-1dB), overallsystem (400 Series mode)
  • THD: 0.2% (typical) (400 Series mode)
  • Input Dynamic Range: 125 dB (with full transmitterlimiting)
  • Audio Output Level: -15 dBu to +8 dBu, in 1 dBincrements
  • LCD: High resolution graphical display
  • Power Requirements: 10 VDC/2A to 18 VDC/1.2A
  • Weight: 4.4 lbs. (1984 grams) with six modules
  • Dimensions: 19”W x 1.75”H x 7.75”D (panel to rear jacks) (48.26 cm x 4.45cm x 19.67 cm)

Consumer Alert

This particular wireless microphone device operates in portions of the 617-652 MHz or 663-698 MHz frequencies. Beginning in 2017, these frequencies are being transitioned by the Federal Communications Commission (FCC) to the 600 MHz service to meet increasing demand for wireless broadband services. Users of this device must cease operating on these frequencies no later than July 13, 2020. In addition, users of this device may be required to cease operations earlier than that date if their operations could cause harmful interference to a 600 MHz service licensee’s wireless operations on these frequencies. For more information, visit the FCC’s wireless microphone website at www.fcc.gov/wireless-microphones-guide or call the FCC at 1- 888-CALL-FCC (TTY: 1-888-TELL-FCC).
