Teradek Bolt Pro 300 TX/2X Dual 3G-SDI/HDMI Video
Transceiver Set with 1 Transmitter/2 Receivers

OUR PART #  TER-10-0933

Our Price: $4,380.00
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

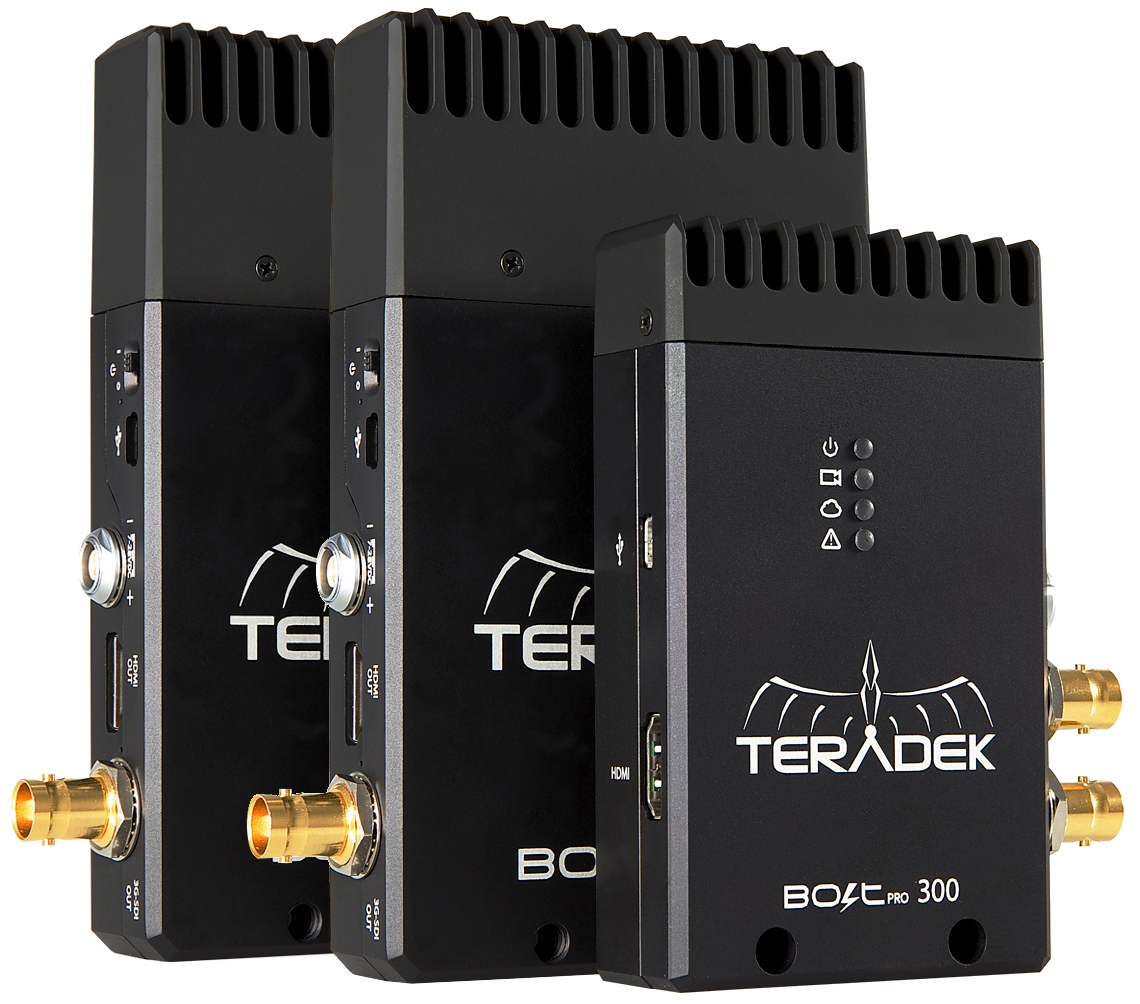

The Teradek Bolt Pro 300 TX/2X with Dual 3G-SDI/HDMI Video, part of the Teradek Bolt Pro series, is a zero delay (< 1ms) wireless video system capable of transmitting uncompressed 1080p60, 4:2:2 video up to 300ft over the unlicensed 5GHz band, can multicast to up to 4 receivers, features the USB 3.0 GRAB Engine, supports timecode as well as metadata pass-through, and comes with 1 transmitter plus 2 receivers.

USB 3.0 GRAB Engine
Capture cards are a thing of the past with Teradek's GRAB Engine. This feature lets you ingest Bolt's uncompressed video feed directly into a computer or DIT cart with no added delay.

3D LUT Integration
The Bolt Pro 300 HDMI provides integrated 3D LUTs that output custom graded video, great for producers and directors who want to monitor footage with a color palette that's closer to final grade as opposed to flat RAW images. Custom LUTs can be loaded via the Bolt Manager.

Real-Time Cross Conversion
Supports real-time cross conversion from TX to RX, to let you automatically cross convert from HDMI to 3G-SDI, or vice versa, without any additional hardware, delivering added convenience.

Teradek Bolt Pro 300 TX/2X 3G-SDI/HDMI Includes:

  • (1) Bolt Pro 300 3G-SDI/HDMI Transmitter
  • (2) Bolt 300 3G-SDI/HDMI Receivers
  • (2) 1/4 20" Thumb Screw
  • (2) 1/2 20" Lightstand Adapter
  • (2) PSU 2-Pin Lemo 18W
  • Hot Shoe Adapter
  • Bit 118 P-tap to 2-pin Lemo
  • (3) SDI Cables
  • (3) HDMI Cables
  • Hard Case
  • 1-Year Warranty

Teradek Bolt Pro 300 TX/2X 3G-SDI/HDMI Features:

  • 3G-SDI
  • HDMI
  • 5GHz
  • 1080p60
  • Multicast
  • Fanless RX
  • Metadata/Timecode

Teradek Bolt Pro 300 TX/2X 3G-SDI/HDMI Specifications:


  • Video resolution:
    • 1080p60/59.94/50/30/29.97/25/24/23.98
    • 1080psf30/29.97/25/24/23.98
    • 1080i60/59.94/50
    • 720p60/59.94/50
    • 480p59.94/576p50 (via HDMI ports only)
    • 480i(NTSC)/576i(PAL)
  • Color sampling: Y:Cb:Cr = 4:2:2, 8-bit for SDI (10-bit with no format conversion and FPGA v.1.1.0 or later); RGB 4:4:4 (HDMI out, 8-bit color)
  • Inputs (Transmitter only):
    • 1 x 75 Ohm BNC
    • 1 x Type A receptacle HDMI
  • Outputs:
    • Transmitter: 1 x 75 Ohm BNC(Loop-out)
    • Receiver:
      • 1 x USB 3.0 micro B receptacle
      • 1 x 75 Ohm BNC
      • 1 x Type A receptacle HDMI
  • Delay (TX to RX): <0.001sec when="" no="" video="" format="" conversion="" is="" enabled="" td="">


  • Format support: 48kHz 24-bit PCM


  • Frequency:
    • Non-DFS Frequencies:
      • US: 5.19 ~ 5.23 GHz and 5.755 ~ 5.795 GHz
      • EU & JP: 5.19 ~ 5.23 GHz
    • DFS Frequencies:
      • US: 5.27 ~ 5.55 GHz and 5.67 GHz
      • EU & JP: 5.27 ~ 5.67 GHz
  • RF power: 17dBm EIRP  15dBm EIRP
  • Range: Up to 300ft line of sight
  • Unicast/Multicast: Yes (both Transmitter and Reciever)
  • Noise rejection: Can coexist with WiFi® and 5GHz cordless phones


  • Input: 2-Pin Lemo 7-28 VDC (both Transmitter and Receiver)
  • Internal battery: No
  • Consumption (1080p60):
    • Transmitter: 6.5 Watts
    • Reciever: 8.2 Watts


  • Manufacturer Part#: 10-0933
  • LCD screen: No
  • Menu joystick:
    • Transmitter: No
    • Receiver: Yes
  • Dimensions:
    • Transmitter: 1.06" x 2.61" x 4.42" (27.0 x 66.1 x 112.3mm)
    • Receiver: 1.0" x 3.5" x 5.8" (25.2 x 88.9 x 146.5mm)
  • Weight:
    • Transmitter: 9.2 oz (262 g)
    • Receiver: 12.2 oz (346 g)
  • Firmware: Upgradeable via Mini-USB
  • Operating temperature: 0° ~ 50° C
  • Chassis material (both Transmitter and Receiver):
    • Cap: Plastic
    • Body: Milled aluminum
    • Hot-shoe mount
  • Mountability: Multiple mounting options with 1/4" holes (both Transmitter and Receiver):

NOTE/WARNING: To avoid power failure with third party cables, power the device on without a video source connected. If the unit boots up, then the system is ready for use. If it doesn't boot up, the power cable doesn't have the correct polarity and will need to be replaced before a video source is connected.
