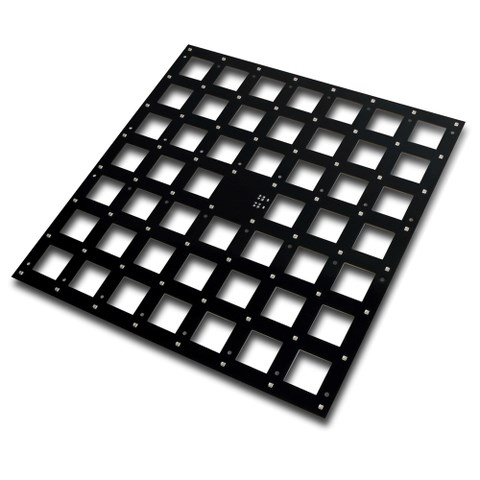

Martin Professional VC-Grid 60
8x8 Grid

OUR PART #:  90357560

The VC-Grid 60 is an ultra-light-weight LED video module with a 60 mm pixel pitch.
Learn More
Our Price: $330.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Martin Professional VC-Grid 60
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The VC-Grid 60 is an ultra-light-weight LED video module with a 60 mm pixel pitch. Useful in creating customized LED video solutions with maximum artistic flexibility and a minimum of effort, the VC-Grid’s compact size makes it extremely suitable for integration into stage designs, set elements, creative ceilings, lobbies and much more. Used with or without a front diffuser, multiple VC-Grids can be combined in a countless variety of ways for ultimate design freedom. A combined power/data cable allows VC-Grids to be daisy-chained for easy setup and less cabling.

Martin Professional VC-Grid 60 Features:

  • Wide range of pixel pitches to suit every application
  • Easy cabling, mapping and configuration
  • Bright and fully calibrated for optimal consistency
  • 64/16 individually controllable pixels
  • 750 nits of brightness
  • High-quality 16-bit per color image processing technology
  • Pixel-level brightness and color calibration for optimal image quality
  • P3/DMX controllable (automatic protocol detection)
  • Intuitive mapping and addressing via P3 System Controller
  • Combined power/data input (single cable for power and data input)
  • Combined power/data thru (to daisy-chain multiple VC-Grids)
  • Supported by integrated power and data processor (P3 PowerPort 1500) and simple cabling system
  • Custom designs available on request (pixel pitch and module dimensions)

Martin Professional VC-Grid 60 Specifications:

  • Physical:
    • VC-Grid 8x8 60™ (LxWxH): 18.9"x 18.9"x 0.6" (480 mm x 480 mm x 15 mm)
    • Weight: 1.1 lbs (500 g)
  • Control and Programming:
    • DMX channels, 8x8 model: 192 (pixel mode) or 3 (module mode)
    • Setting and addressing: P3 System Controller or RDM-compliant controller
    • Control resolution: 16-bit (P3) or 8-bit (DMX) control of each color
    • Color and intensity calibration: Pixel-level
    • DMX compliance: USITT DMX512-A
    • RDM compliance: ANSI/ESTA E1.20
    • Firmware update: Via P3 System Controller
    • Control options: Martin P3 System Controller™ via Martin P3
    • PowerPort 1500™ and/or DMX
    • Protocol detection: Automatic
    • Control modes: pixel and module
  • Control/User Interface:
    • Device status: Multi-color visual indication
    • Device test and reset: Pushbutton to call up local test patterns and reset device
  • Optics:
    • Minimum LED lifetime: 50 000 hours (to >70% luminous output)* *Figure obtained under manufacturer's test conditions
  • Photometric Data:
    • Luminous intensity, calibrated mode: 750 nit
    • Viewing angle: 120° x 120°
    • Preliminary data, figures are approximate
    • VC-Grid 8x8 60™ Pixels per module: 64
  • Video Processing:
    • Brightness control
    • Gamma correction and control
    • Color temperature control
    • Color gamut control
    • Calibration processing
    • Synchronization
  • Construction:
    • Base: Black FR4 circuit board
    • Transparency through module (unmasked area): 8x8 models 49%
    • Protection rating: IP20
    • RoHS compliant
  • Installation:
    • Orientation: Any
    • Maximum number of VC-Grid™ 8x8 60 modules per daisy-chain: 12
    • Mounting: Mounting holes in module
  • Connections:
    • Power & data input: 4-pin Molex connector
    • Power & data thru: 4-pin Molex connector
  • Electrical:
    • Nominal input voltage: 48 VDC from Martin P3 PowerPort 1500™ or external PSU
    • Peak power consumption (at full intensity, full white): 30 W
    • Typical power consumption (with typical video content): 10 W
    • Figures for typical video content are indicative only and will vary
  • Thermal:
    • Cooling: Convection
    • Maximum ambient temperature (Ta max.): 45° C
    • Minimum ambient temperature (Ta min.): -20° C
    • Peak heat dissipation (calculated, at full intensity, full white): 105 BTU/hr.
    • Typical heat dissipation (calculated, with typical video content): 35 BTU/hr.
    • Figures for typical video content are indicative only and will vary
  • Approvals:
    • EU safety: EN 60950
    • EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3
    • US safety: ANSI/UL 60950-1
    • Canadian safety: CSA C22.2 No. 60950-1
