ETC/Elec Theatre Controls Response 0-10V Gateway
Low Voltage Gateway


The Response 0-10V Gateway accepts sACN or DMX control input and provides 24 channel's of 0-10V control output...
Learn More
Our Price: $650.00
Write the first review.
ETC/Elec Theatre Controls Response 0-10V Gateway
In Stock

Related Products

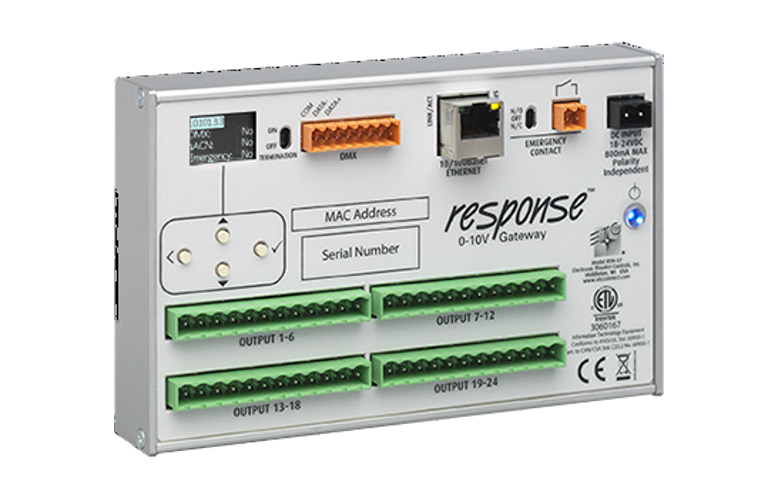

The Response 0-10V Gateway accepts sACN or DMX control input and provides 24 channel's of 0-10V control output, making it ideal for both retrofit and new power-control system installations that use four-wire LED drivers and fluorescent ballasts. The Gateway also accepts a UL924-listed contact closure to set each channels output to a predetermined level for use in emergency systems.

Configuration of the 0-10V Gateway is simple using the onboard four-button user interface. The Gateway can be mounted anywhere standard DIN-rail is installed. An optional DIN-rail mounting enclosure is also available.

ETC Response 0-10V Gateway Features:

  • Supports 24, 0-10V control outputs up to 50mA per output
  • 12-24VDC power input
  • Supports sACN or DMX control input
  • UL924 listed for use in emergency systems
  • Can be powered from a POE switch, or the optional PS435 power supply from ETC

ETC Response 0-10V Gateway Specifications:

  • The lighting control gateway shall be a microprocessor-based unit specifically designed to provide 0-10V control for lighting systems. The gateway shall permit DMX-512 and Ethernet Data to be received and converted to 0-10V control outputs. The unit shall be a Response 0-10V Gateway as provided by ETC, Inc.
  • Gateways shall communicate over DMX and Ethernet directly with at least ETC, Inc.’s entertainment and architectural lighting control products and other compatible Ethernet interfaces.
  • Connections shall be made between gateways, consoles, architectural systems, and PCs over standard DMX512A and Ethernet distribution systems using 10/100BaseT.
  • The gateway shall support an input for use in Emergency Systems
