Product Overview

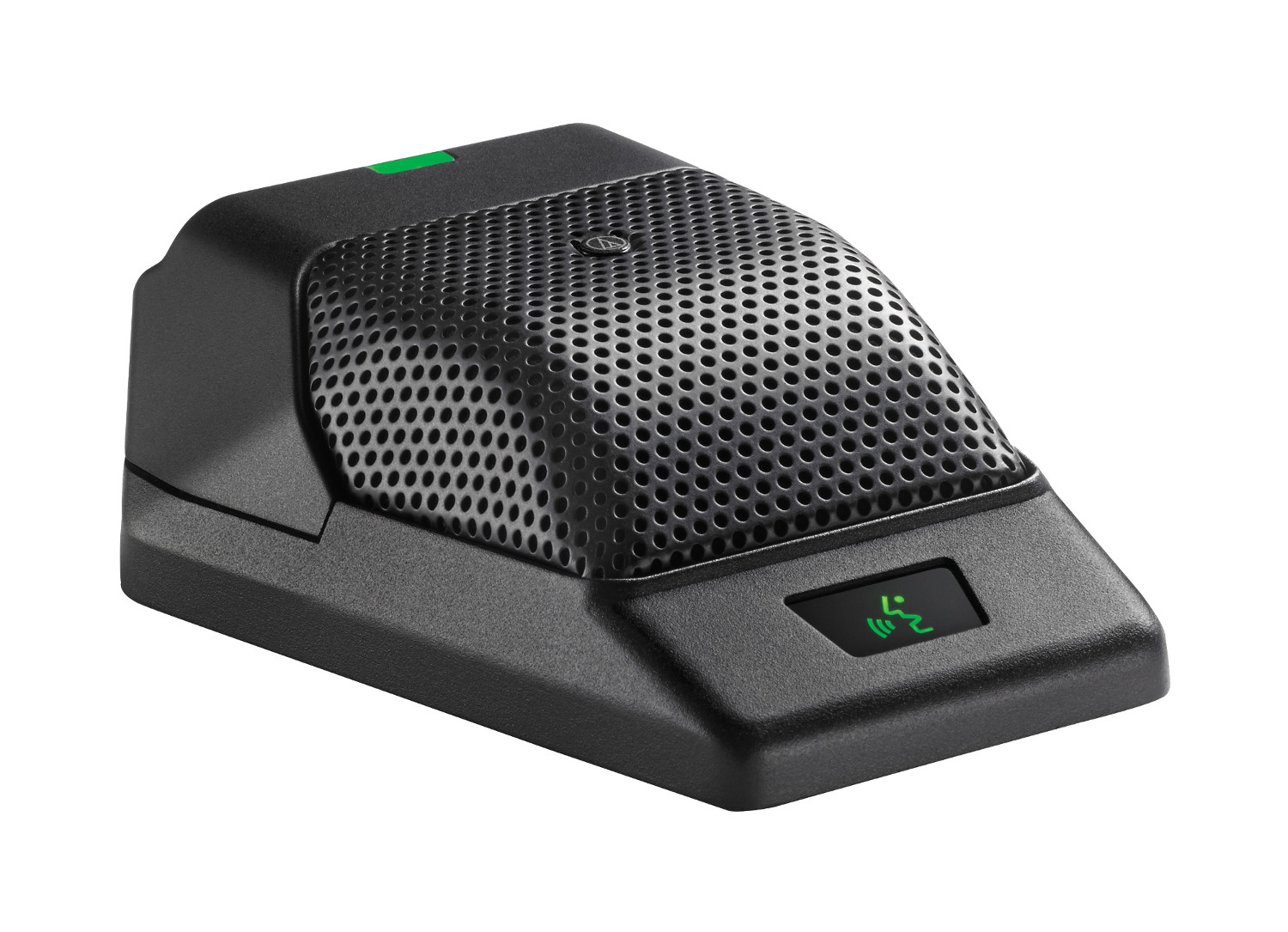

The ATW-T1006 is a System 10 Boundary Microphone/Transmitter from Audio-technica that will pair with any of their System 10 or System 10 PRO digital wireless receivers (sold separately) to deliver rock-solid, 2.4GHz wireless performance, offering clear, natural sound quality. This cardioid condenser boundary mic features a touch-sensitive user switch that toggles between talk and mute modes, or can alternatively function as a press-to-talk or press-to-mute button. It includes 2 red/green LEDs that indicate toggle/talk/mute mode, battery level, and charging status — with one visible from the front of the unit and the other one visible from the rear.
Additionally, it offers 3 input gain levels (-6dB, 0dB and +6dB), selectable via a switch on the bottom of the unit. Another switch engages/disengages its onboard low-cut filter. The onboard 3.7V rechargeable lithium-ion battery provides 9 hours of use on a full charge, and is easily recharged with the included USB charging cable.
Includes
- ATW-T1006 unit
- AC Adapter (USB-type)
- USB charging cable
Features
- Cardioid condenser boundary microphone/transmitter pairs with any System 10 or System 10 PRO digital wireless receiver (sold separately)
- Digital 24-bit / 48kHz wireless operation for ultimate sound quality and dependable performance
- Operates in the 2.4GHz range – completely free from TV interference
- User switch can be set to toggle between talk and mute modes, or function as a press-to-talk or press-to-mute button
- Gain Control switch allows selection of 3 input gain levels: -6dB (for loudest voices), 0dB, and +6dB (for softest voices)
- (2) red/green LEDs – one visible from the front of the unit, the other from the rear – indicate toggle/talk/mute mode, battery level, and charging status
- Switchable low-cut filter
- System ID Display located on bottom of unit
- Automatic frequency selection for seamless, interference-free operation
Specifications
- Maximum Input Sound Level: 139dB SPL
- RF Power Output: 10mW
- Spurious Emissions: Compliant with federal and national regulations
- Power Supply: 100 - 240VAC (50 / 60Hz) to 5VDC, 0.5A, switched mode external USB-type power supply
- Battery: 3.7V rechargeable lithium-ion battery
- Battery Life: 9 hours
- Charging Time: Approx. 4.5 hours (for 0-100% charge)
- Switches: Touch-sensitive, capacitive-type user switch function: toggle (talk on power up), momentary on, momentary off; Low-cut filter: flat, roll-off; Gain: -6dB, 0dB, +6dB
- Dimensions (W x H x D): 3.81" x 1.50" x 4.83" (96.8 × 38.0 × 122.8mm)
- Net Weight: 14.6oz. (415g)
- Note: further information can be found within the items located under the "Documentation" tab above.
