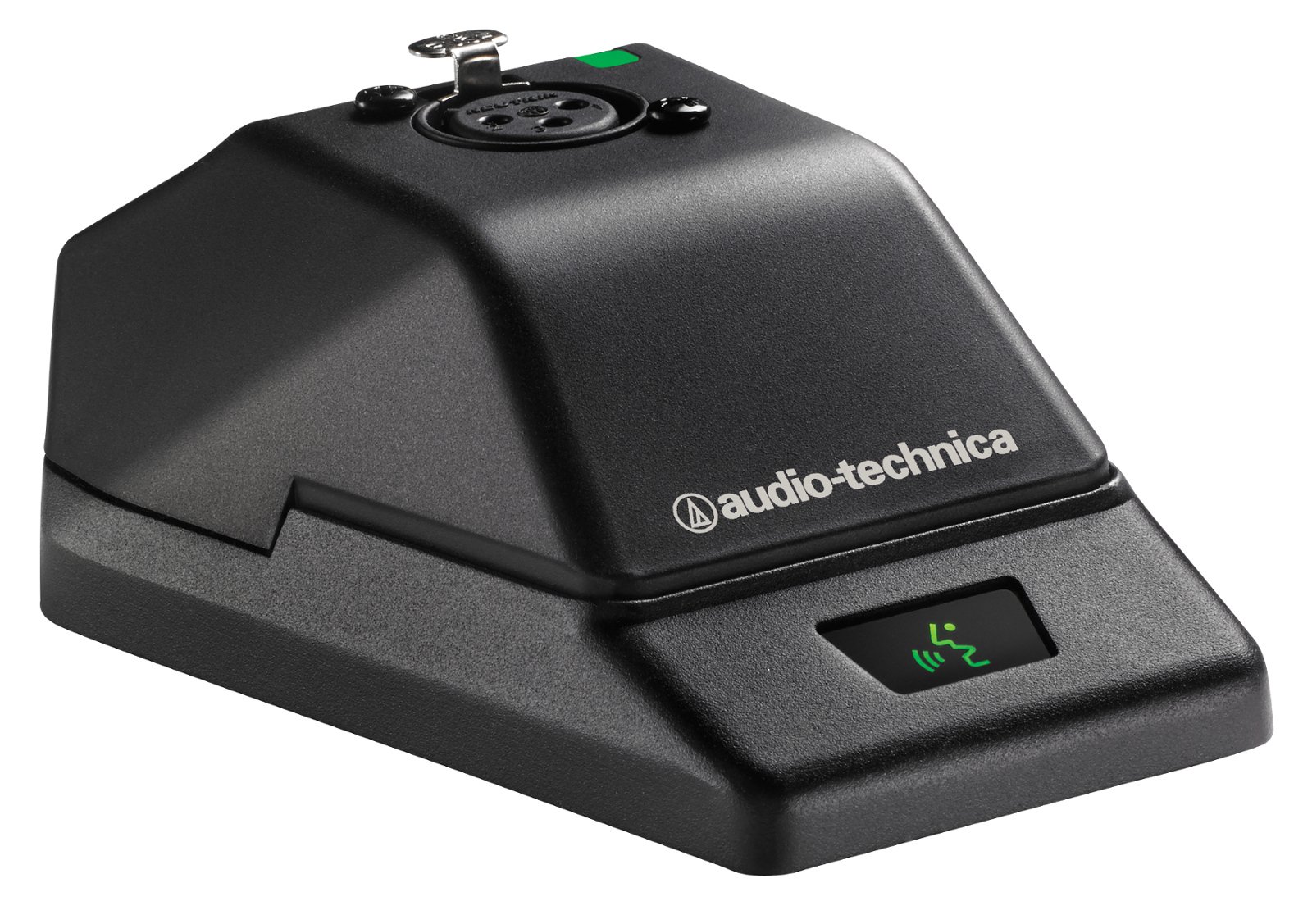

Audio-Technica ATW-T1007 System 10 2.4 GHz Wireless Desk Stand Transmitter

The Audio-technica ATW-T1007 System 10 Microphone Desk Stand Transmitter is designed to work with phantom-powered, condenser gooseneck microphones that include a 3-pin XLRM-type output, and will pair with the A-T System 10 or System 10 PRO digital wireless receiver of your choice (receivers sold separately) to deliver rock-solid, 2.4GHz wireless performance. It features a 3-pin XLRF-type input located right on top of the unit, and includes a multi-functional touch-sensitive user switch that can toggle between talk and mute modes, or alternatively function as a press-to-talk or press-to-mute button. Its 2 onboard red/green LEDs indicate toggle/talk/mute mode as well as battery level and charging status – one visible from the front of the unit, the other from the rear.

The ATW-T1007 provides 3 levels of input gain (-6dB, 0dB, and +6dB) which are selectable via a switch located on the bottom of the unit. It also has another switch that engages the low-cut filter. The 3.7V rechargeable lithium-ion battery provides 9 hours of use on a full charge and is easily recharged using the included USB charging cable.

Includes

• ATW-T1007 unit
• AC Adapter (USB-type)
• USB charging cable

Features

• Pairs with any System 10 or System 10 PRO digital wireless receiver (sold separately)
• 3-pin XLRF-type in for quick mounting of gooseneck microphone
• Digital 24-bit / 48kHz wireless operation for ultimate sound quality and dependable performance
• Operates in the 2.4GHz range – completely free from TV interference
• User switch can be set to toggle between talk and mute modes, or function as a press-to-talk or press-to-mute button
• Gain Control switch allows selection of 3 input gain levels: -6dB (for loudest voices), 0dB, and +6dB (for softest voices)
• (2) red/green LEDs – one visible from the front of the unit, the other from the rear – indicate toggle/talk/mute mode, battery level, and charging status
• Switchable low-cut filter
• System ID Display located on bottom of unit
• Automatic frequency selection for seamless, interference-free operation

Specifications

• RF Power Output: 10mW
• Spurious Emissions: Compliant with federal and national regulations
• Power Supply: 100-240VAC (50 / 60Hz) to 5VDC, 0.5A, switched-mode external USB-type power supply
• Battery: 3.7V rechargeable lithium-ion battery
• Battery Life: 9 hours
• Charging Time: Approx. 4.5 hours (for 0-100% charge)
• Switches: Touch-sensitive, capacitive-type user switch function: toggle (talk on power up), momentary on, momentary off; Low-cut filter: flat, roll-off; Gain: -6dB, 0dB, +6dB
• Dimensions (W x H x D): 3.81" x 1.74" x 4.83" (96.8 × 44.2 ×122.8mm)
• Net Weight: 14.8oz. (420g)
• Note: further information can be found within the items located under the "Documentation" tab above.
