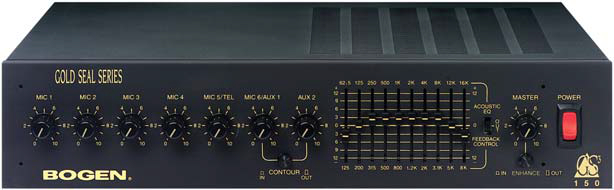

Bogen Communications GS100
100 Watt Mixer/Amp


The Bogen Communications Gold Seal Series amplifiers are designed to meet the rigorous requirements of today's sophisticated sound systems.
Learn More
Our Price: $491.88
List Price: $578.07
You save 15%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Bogen Communications GS100
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Bogen Communications Gold Seal Series amplifiers are designed to meet the rigorous requirements of today's sophisticated sound systems. They combine unique and useable features with ultra high reliability and professional performance.

Designed with the sound contractor in mind, they provide unparalleled flexibility and versatility, without the need for add-on modules.

In addition to its extensive flexibility, the Gold Seal Series amplifiers offer a combination of features not found in other commercial amplifiers.

Bogen communications GS100 Features:

  • (4) dedicated MIC inputs
  • (1) selectable MIC/TEL input
  • (1) selectable MIC/AUX input
  • (1) dedicated AUX input
  • 4-ohm direct coupled output
  • 8-ohm, 25V, 25 VCT, and 70 V transformer-coupled outputs
  • Rack mountable - 2RU package
  • Dual-function, 10-band graphic equalizer
  • True loudness contour function
  • Audio enhancement circuit for improved intelligibility
  • Switchable phantom power supply
  • Variable AUX input muting
  • Remote master volume control capability
  • Automatic level control
  • Input muting via contact on all inputs
  • AUX fade back after TEL page
  • Pre-amp Out/Power amp in (insert) connections
  • Booster amp output connection
  • Tape output connection
  • Balanced line driver output
  • Low-cut filter for MIC channels

Bogen Communications GS100 Specifications:

  • Power Rating (RMS): 100 Watts
  • Frequency Response:
    • Transformer Output: 65 Hz to 20 kHz, +0/-2 dB @ -2 dB
    • Direct Output: 20 Hz to 20 kHz, +0/-1 dB @ rated power
  • Distortion:
    • Transformer Output: 0.5% (max.), 0.3% (typ.), 65 Hz to 20 kHz @ -2 dB
    • Direct Output: 0.5% (max.), 0.3% (typ.), 20 Hz to 20 kHz
  • Signal-to-Noise Ratio: Fundamental: -94 dB or better; AUX 1 and 2: -70 dB; Tel: -70 dB or better @ 600 ohms; MIC 1 thorugh
  • MIC 6: -60 dB or better @ ohms
  • Inputs/Outputs:
    • MIC: 6 Lo-Z balanced via 4 XLR connectors and 2 screw terminals; Sensitivity: 0.35 mV (200 ohms)
    • AUX: 2 Hi-Z RCA jacks; Sensitivity: 0.085V (10k ohms)
    • Telephone: Screw terminals; Sensitivity: 0.07V (600ohms)
    • Output to Power Amp: 5V @ Rated Output via RCA jack
    • Power In/Pre Out: In 1V/Out 1V via RCA jacks
    • WMT1A Output: 25V @ Rated Output via RCA jack
    • Tape Output: 687 mV @ Rated Output via RCA jack
  • Output Impedance: All models: balanced or unbalanced 8-ohms, 25 V, 25 VCT, 70 V, 4-ohm direct
  • Output Regulation: Better than 2 dB from no load to full load
  • AC Input voltage: 120 V AC
  • AC Current: 2.2 A
  • Thermal Emissions (Full Power): 365.4 BTU/hr
  • Variable Mute Range: 0 dB to -30 dB (AUX 1 and 2)
  • Dimensions (W x H x D): 16.5" x 3.5" x 12"
  • Product Weight: 23 lbs
