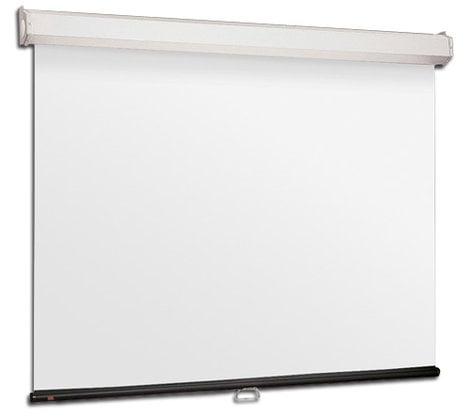

Draper 206210EG Luma2109DiagonalScreen with AutoReturn and Contrast White XH1100E Surface

The Draper 206210EG is part of their Luma 2 series of screens, and comes with the Contrast White XH1100E screen surface. It has a 16:10 video format and 109" diagonal measurement.

Luma 2 Screen: Draper's Luma 2 heavy-duty manual projection screen can be wall or ceiling mounted, includes the AutoReturn Roller, and makes an attractive, practical choice wherever a large spring-roller screen is needed. It's simple in design and rugged in construction, made entirely of heavy gauge components for years of reliable operation.

A built-in inertia reduction mechanism highlights the AutoReturn Spring Roller, so that the screen unrolls in the conventional manner, then after a simple tug on the handle, it slowly and gently retracts closed on its own. Intermediate stop positions let you lower or raise the screen completely, or stop at any point in between to suit your needs. This system avoids potential damage to the dowel or screen surface by preventing repeated impact with case. Not recommended for use with the Ceiling Trim Kit.

Viewing Surface Information: Contrast White XH1100E

Part of Draper's OptiView Family of screen surfaces, consists of a diffuse white coating over a grey base material, yielding a surface with the best qualities of both matt white and contrast grey screen fabrics. It's recommended for use with low to moderate light output digital projectors, and environments where some light control provision exists. Improves the quality of blacks with no effect on whites, and it's mildew and flame resistant.

OptiView Family OptiView surfaces are generally installed on operable roller screens with a dowel, these front projection surfaces are self-supporting and do not require tensioning to lay flat. Most surfaces in this family have a tearproof fiberglass base textile. OptiView surfaces are extremely tough and are suitable for use in a host of situations.

Draper 206210EG Luma 2 Screen Specifications:

• Part number: 206210EG
• Surface material: Contrast White XH1100E
• Image Format: 16:10
• Diagonal size: 109"
• Image/Viewable area: 57-1/2" x 92" (146 x 234cm)
• Overall size: 69 1/2" x 96" (177 x 244cm)
• Case length: 99" (251cm)
• Product weight: 35 lbs (16 kg)
• Shipping weight: 46 lbs (21 kg)
• Contrast White XH1100E Surface characteristics and reflective performance:
  • Maximum Height Without Seams: 96"
  • Weight (g/sm): 532
  • Weight (oz/yd2): 15.69
  • Thickness (mm): 0.37
  • Cleaning: Mild soap and water
  • Flame Retardant: NFPA-701
  • Composition: Fiberglass base laminated with PVC and coated
  • Gain On Axis/0° Gain: 1.1
  • Half Gain Angle: Material does not reach half gain.
