FSR, Inc IT-AS411
4 x 1 Audio Switcher with Voice Lift Mixing

OUR PART #:  IT-AS411

With an extra mic/line level input for a voice lift system or direct microphone input...
Learn More
Our Price: $363.09
List Price: $399.00
You save 9%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

FSR, Inc IT-AS411
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

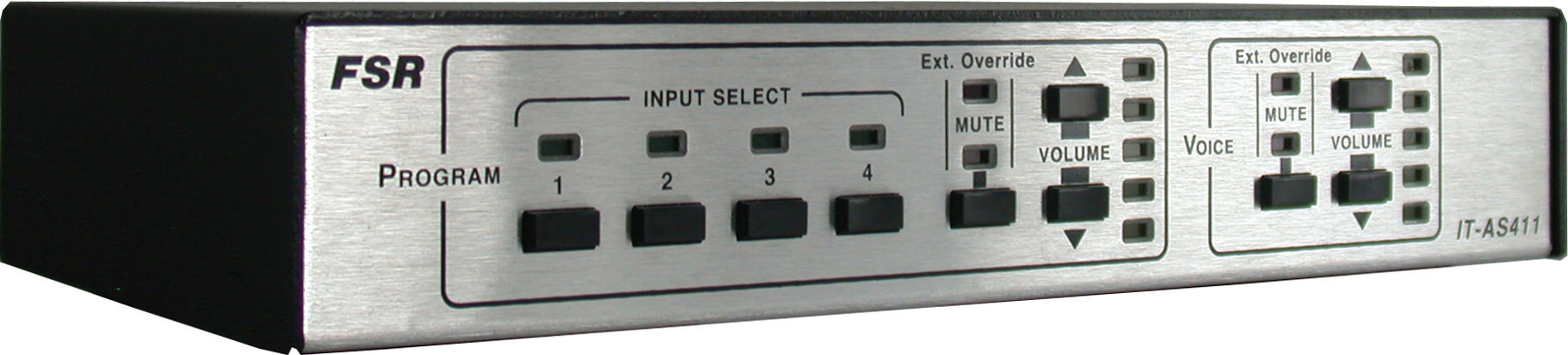

With an extra mic/line level input for a voice lift system or direct microphone input, the FSR IT-AS411 Audio Switcher is a 4x1 audio switcher that has (4) switched program audio inputs, and features an independent mic or line level input summed (mixed) with the selected active program audio.

It comes with balanced or unbalanced I/O capability. DIP switches let you set the voice input level to mic or line, adjust microphone sensitivity, select mono or stereo operation, and set phantom power. Adjustable volume control buttons and mute are also available for both program audio and voice inputs.

FSR IT-AS411 Features:

  • Mic / line level voice lift input
  • Program audio / voice lift mixing
  • Program audio inputs and outputs
  • Serial control with serial pass-through
  • Terminals for remote muting of voice and/or program audio via dry contact closure
  • On board LED's monitor; input select, volume level and muting status
  • Current limited remote LED output terminal for program audio and voice (mute) status
  • Integrated audio amplifiers on A25-M70 and A25-S8 models
  • Program audio trim (gain)
  • Preamplifier output

FSR IT-AS411 Specifications:

  • Program Audio Input:
    • Program Inputs: 4, Stereo balanced/unbalanced
    • Microphone Inputs: 1
    • Connector Type: Pluggable screw terminal
    • Maximum Input Level: 7.5dBV
    • Input Impedance: 20 kOhm balanced/unbalanced
  • "Voice-in type" Input:
    • Connector Type: Pluggable screw terminal
    • 'Voice in' Type: Microphone/Line
    • Maximum input level: 1dBV
    • Microphone Sensitivity: -43dB/-35dB
    • Low cutoff: 200Hz
    • Phantom power: 24V
  • Preamp Audio Output:
    • Number of outputs: 1 Stereo or 2 Mono (L + R program audio input summed)
    • Signal output: Balanced/unbalanced
    • Frequency response: 20Hz – 20kHz (+/- 0.5dB)
    • THD + N: <0.09% @ 11dBV with 600 Ohm load (balanced)
    • Signal to Noise ratio: 80dB
    • Output impedance: 50 Ohms
  • Power: 24 VDC 0.5A
  • Dimensions: Half Rack x 1U
  • Shipping Weight: 3.5 lbs.
