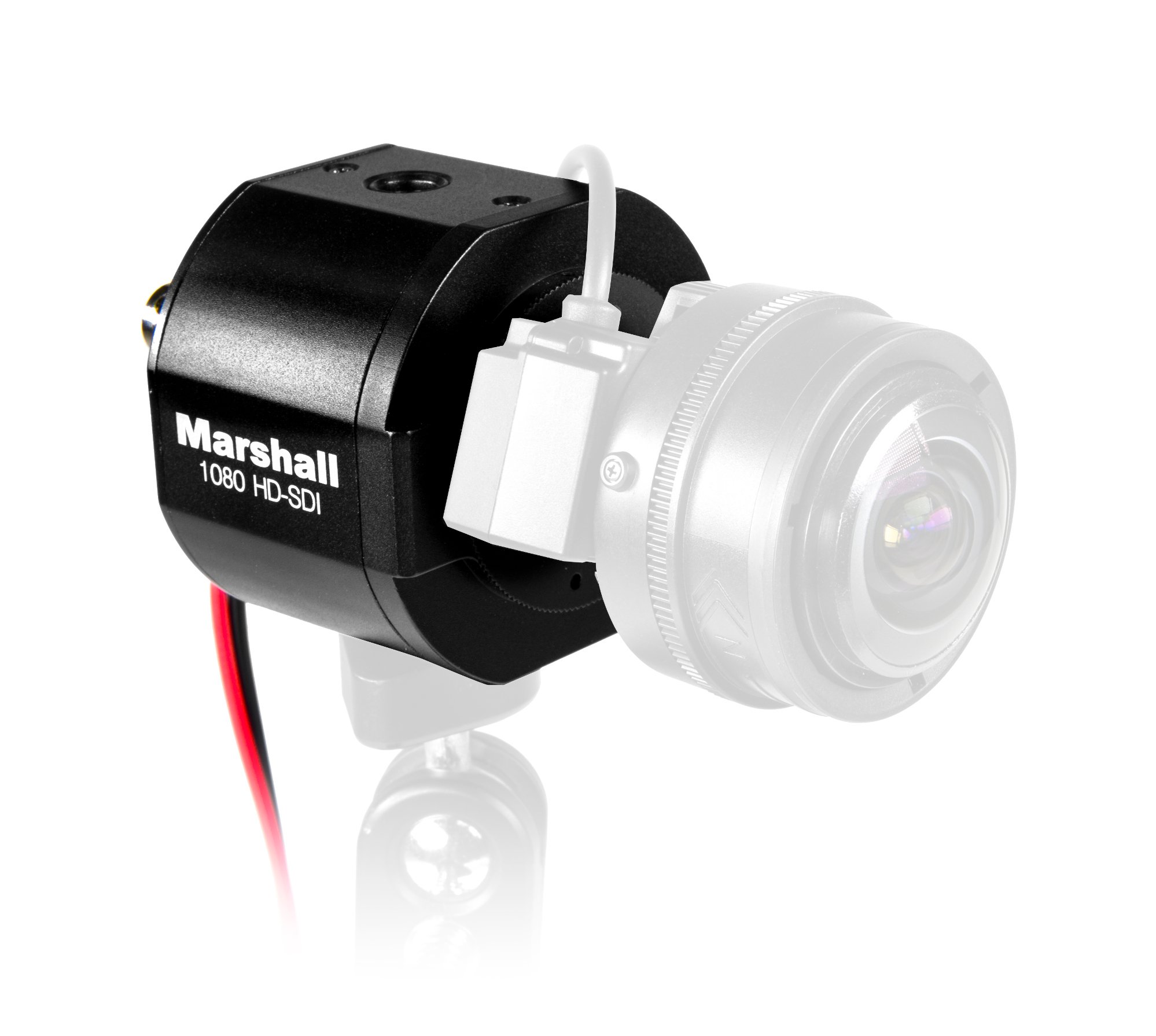

Marshall Electronics CV343-CS Compact POV Progressive Video Camera With CS, C Lens Mount Image 1
Marshall Electronics CV343-CS Compact POV Progressive Video Camera With CS, C Lens Mount Image 2
Marshall Electronics CV343-CS Compact POV Progressive Video Camera With CS, C Lens Mount
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The 3rd Generation CV343-CS Compact POV Video Camera from Marshall Electronics improves on all aspects of video performance. It utilizes a state of the art 1/3-inch high-speed sensor packing 2,476,296 pixels (2.5 Megapixels) of clear, crisp video capture through full-sized 3G/HD-SDI (BNC) outputs at resolutions of 1920x1080i, 1920x1080p, 1280x720p with frame-rates of 60/50/30/25 fps. It's equipped with proprietary pixel technology that offers the lowest noise ratio on the market today capturing sharp, vivid, color images in very low light conditions—as low as 0.05 lux. Industry-leading low power consumption draws very low power in full 1920x1080p60/50fps modes. The CV343-CS Pro-Series POV Cameras continue to provide Field-of-View flexibility with interchangeable CS/C-mount Varifocal lenses (lenses sold separately) and convenience of HD-SDI outputs maintaining a broadcast standard for POV camera applications. Its RS485 connectivity gives remote camera control communication via SONY VISCA or PELCO protocols.

Marshall Electronics CV343-CS Camera Features:

  • 2.5 Megapixel 1/3-inch CMOS Sensor
  • CS/C Mount with DC-Auto Iris (lenses
  • Resolution: 1920x1080p60/50/30/25, 1920x1080i60/50, 1280x720p60/50/30/25fps
  • 3G/HD-SDI (BNC) & CVBS (BNC) built into rear panel
  • Captures sharp, vivid color images as 0.2 lux (low light sensitive)
  • New WDR function supports high speed and high sensitivity to various light sources
  • OSD Menu Joystick & RS-485 connectable (Pelco/Visca Protocols)
  • Stepped (Red/Blue) Gain Control, Gamma, and Shutter adjust
  • 12V Power Supply Included

Marshall Electronics CV343-CS Camera Specifications:

  • Sensor:
    • Image Sensor: 1/3" Progressive CMOS (Approx. 2.1 mega)
    • Scanning System: 16:9 Progressive
    • Sync. System: Internal
    • Effective Pixel: 1920 (H) x 1080 (V)
    • Min. Illumination: 0.2 Lux (Color), 0.1 Lux (Black/White), 0.005 Lux (DSS on)
    • Horizontal Resolution: 1000TVL
  • Optics:
    • Lens: Variable lens options
  • Functions:
    • Back Light Compensation: WDR (Wide Dynamic Range)/BLC (Back Light Compensation), HLC (High Light Compensation)
    • Exposure: Auto / Manual
    • White Balance: Auto (3,000°K~8,000°K) / ATW (1,900°K~11,000°K) / Manual
    • Day & Night System: AGC (Automatic Gain Control) / True Day/Night auto switch based on light environment (auto/manual)(ICR)
    • Electronic Shutter: NTSC: 1/30~1/30000
    • PAL: 1/25~1/30000, DSS( ~X64)
    • Functions: Privacy Mask, Image Mirror, 3DNR, Flicker-less, Sharpness, Defog, DIS (Digital Image stabilizer), NegArt, Freeze, B&W
  • Video Outputs:
    • 3G-SDI (+optional Audio) HD-SDI (+optional Audio):
      • SMPTE 424M (2.97Gbps):
        • 1920x1080p @ 50/60fps
      • SMPTE 292M (1.485Gbps):
        • 1920x1080p @ 25/30
        • 1920x1080i @ 50/60fps
        • 1280x720p @ 50/60fps
      • CVBS (BNC): Composite-CVBS (BNC): 700TVL NTSC/PAL
    • MIC Input:
      • Mic Level (1Vrms): 2.5V Mic bias
      • 16-, 20-, 24-, 32-bits audio format. 48KHz sample rates
      • Gain: -12dB ~ 59.5dB
    • General:
      • Operation Temperature: -10°C ~ 50°C
      • Power Input: 12VDC (7V to 15VDC). power supply included
      • Power consumption: Max 6W
      • Dimensions (WxHxD): 60 x 57 X 45mm
      • Weight (Net): Approx. 160g
    • Control Interface:
    • RS-485:
    • PELCO-P/D, SONY-VISCA protocol
    • 8-bits data, 1 stop bit, no parity, 2400~115200bps

Note:

Lens & support apparatus shown above are sold separately.
