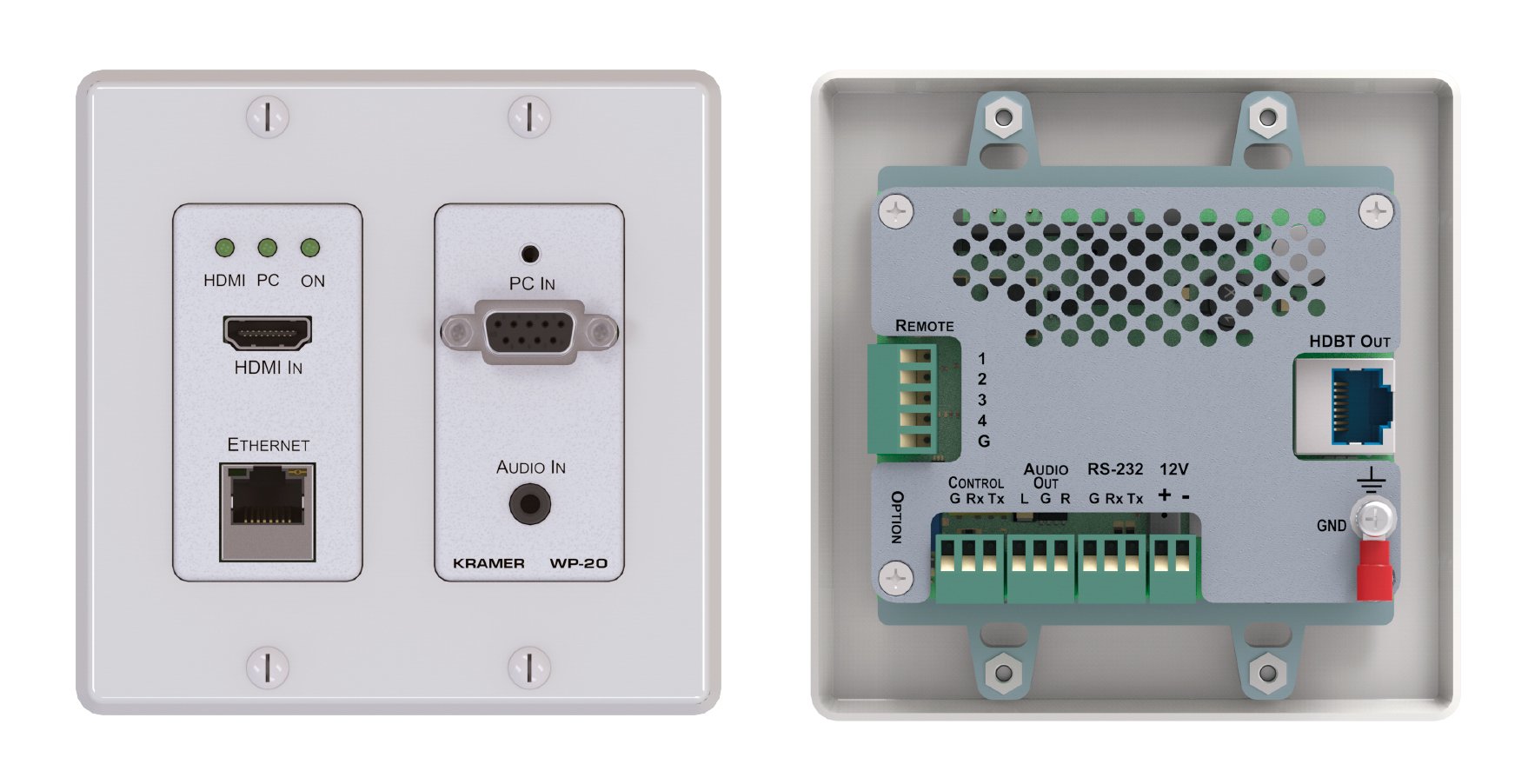

Kramer WP-20
Active 2-Gang Wall Plate with Audio, Ethernet, HDMI, RS-232 Connectors

OUR PART #:  WP-20

The WP-20 from Kramer is a 4K UHD HDBaseT active wall plate auto switcher for HDMI, VGA and analog audio signals that supports 4K UHD resolution.
Learn More
Selected Model Price: $796.00
List Price: $995.00
Save up to 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Kramer WP-20
Select model: (shipping times are approximate)
Qty:

Similar Products

The WP-20 from Kramer is a 4K UHD HDBaseT active wall plate auto switcher for HDMI, VGA and analog audio signals that supports 4K UHD resolution. The device has EDID management, various control options and audio embedding. The unit is a fully-featured auto-switcher with the convenience and simplicity of a wall plate. The WP-20 is easy to configure, can be powered remotely over Ethernet (PoE) and is designed for any size room.

Kramer WP-20 Active 2-Gang Wall Plate Features:

  • Max. Data Rate: 10.2 Gbps (3.4 Gbps per graphic channel)
  • Max. Resolution: Up to 4K UHD and WUXGA, including 4K @ 60 Hz (4:2:0)
  • HDTV Compatible
  • HDCP Compliant: Works with sources that support HDCP repeater mode
  • HDMI Support: Deep Color, x.v.Color™ and 3D
  • Automatic Live Input Detection: Based on video clock presence
  • Automatic Input Selection: Based on manual selection or last connected input
  • Automatic Analog Audio Detection & Embedding
  • I-EDIDPro™ Kramer Intelligent EDID Processing™: Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems
  • Kramer Equalization & re-Klocking™ Technology: Rebuilds the digital signal to travel longer distances
  • Range: Up to 130m (430 ft) at normal mode (2K), up to 100m at normal mode (4K); up to 180m (590 ft) at ultra mode (1080p @ 60 Hz @ 24 bpp) when using BC-HDKat6a cables
  • Lockable EDID
  • Flexible Control Options: Via Kramer Protocol 3000, Ethernet and embedded Web pages over RS-232
  • Digital Audio Format Support
  • Applications:
    • Display systems requiring simple input selection
    • Remote monitoring of computer activity in schools and businesses
    • Rental/staging applications
    • Multimedia and presentation source selection

Kramer WP-20 Active 2-Gang Wall Plate Specifications:

  • Inputs: (1) HDMI on an HDMI connector, (1) VGA on a 15-pin HD (F) connector, (1) unbalanced stereo audio on a 3.5 mm mini jack
  • Outputs: (1) HDBaseT on an RJ-45 connector, (1) unbalanced stereo audio on a 3.5 mm mini jack
  • Ports: (1) RS-232 3-pin terminal block, (1) Ethernet on an RJ-45 connector
  • Controls: Remote switches for input switching and volume control, reset switch
  • Standards: HDMI with Deep Color, x.v.Color™ and 3D; HDCP-works with sources that support HDCP repeater mode; HDBT certified
  • Maximum Analog Audio Level: 3.1 Vpp
  • THD: 0.013%
  • SNR: –70dB
  • Supported Web Browsers: Windows 7 and higher - Internet Explorer (32/64 bit) version 11, Firefox version 30, Chrome version 35; MAC - Chrome version 35, Firefox version 27, Safari version 7
  • Maximum Transmission Distance: 180m (590 ft) up to 1080p @ 60 Hz @ 24 bpp in extended mode, 130m (430 ft) up to 1080p @ 60 Hz @ 36 bpp in normal mode
  • Power Consumption: 12V DC, 850 mA
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: –40° to +70°C (–40° to 158°F)
  • Humidity: 10% to 90%, RHL non-condensing
  • Cooling: Convection
  • Enclosure Type: Aluminium
  • Dimensions: 4.57" W x 2.01" D x 4.49" H (11.6 x 5.1 x 11.4 cm)
  • Environmental Regulatory Compliance: RoHS and WEEE
  • Vibration: ISTA 1A in carton (International Safe Transit Association)
  • Compliance Standards: CE
  • Included Accessories: Power adapter
  • Warranty: 7 years parts and labor
