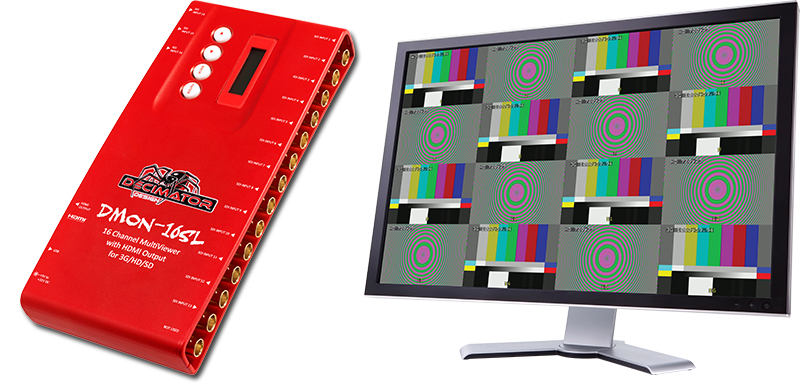

Decimator Design DMON-16SL 16 Channel Multiviewer
3G/HD/SD SDI to HDMI

OUR PART #:  DEC-DMON-16SL

Our Price: $795.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Decimator Design DMON-16SL 16 Channel Multiviewer
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

1 to 16 Channel MultiViewer with HDMI output for 3G/HD/SD and Custom Layouts

Decimator Design DMON-16SL Includes:

  • USB port for control and firmware updates
  • Heavy duty metal box
  • Metal Thread Locking DC Power Socket
  • Power Supply, HDMI Cable and USB Cable

Decimator Design DMON-16SL Features:

  • Support for both 3G level A and B on the inputs.
  • Low cost miniature (3G/HD/SD)-SDI 1 to 16 channel Multi-Viewer
  • Custom Layouts with various standard layouts
  • 16 Character UMD overlay per window with individual enables, custom positioning and size
  • Audio ID overlay
  • Load and restore Custom Layouts
  • Fast switching between inputs using Full-Screen scaling
  • Selectable output format in both Full-Screen and Multi-Viewer mode
  • Low latency buffering for each input allowing non-synchronous inputs
  • 16 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
  • Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
  • Variable aspect ratios per window
  • Pass-Through mode allowing any of the 16 inputs to be selected and routed to the the HDMI output
  • In Pass-Through mode the selected input is passed through to the HDMI output
  • The DMON-16SL is a truly portable converter, that incorporates our new easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.
