Kramer C-GM/GF-35 Molded 15-pin HD (Male-Female) Cable (35')

OUR PART #: C-GM/GF-35 MFR #: 92-6101035

Copied to clipboard

Kramer’s C-GM/GF computer graphics video cable is a high-performance VGA cable with molded 15-pin HD connectors on both ends... ...Read more

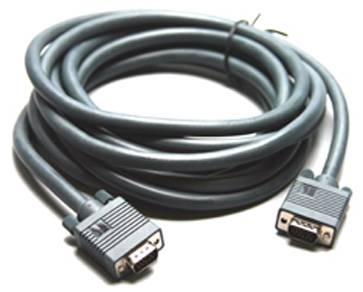

Kramer C-GM/GF-35 Molded 15-pin HD (Male-Female) Cable (35') Image 1
Kramer C-GM/GF-35 Molded 15-pin HD (Male-Female) Cable (35')
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Kramer’s C-GM/GF computer graphics video cable is a high-performance VGA cable with molded 15-pin HD connectors on both ends, and is designed for connecting computer graphics video signals between computers or video scalers and plasma, LCD or other popular display technologies.

Features

  • Quality Construction: High-resolution 26 gauge mini coax for video.
  • Easy Installation: Pre-terminated with molded 15-pin HD connectors, gold plated pins and thumbscrews for easy connection.

Specifications

  • Conductors: 26 AWG 7/34 tinned copper.
  • Dielectric: Foam polyethylene with red, green, and blue color coding
  • Shield:
    • (A) 90% spiral 38 AWG tinned copper
    • (B) aluminum-foil/Mylar 25% overlap rate
  • Inner Jacket: PVC
  • Center Conductor: 0.019" (0.48 mm)
  • Dielectric: 0.076" (1.95 mm)
  • Individual Coax: 0.102" (2.6 mm)
  • Impedance: 75 Ohms
  • DC resistance: 45 Ohms/1000 ft (148 Ohms/km)
  • Capacitance: 17.3 pF/ft (57 pF/m)
  • Temperature: 68°F to 167°F (-20°C to 75°C)
  • Jacket: HD polyethylene
  • Diameter: 0.34" (0.88 mm)
  • Jacket Colors: Red, orange, brown, yellow, black, red/black
  • Outer Jacket: PVC
  • Outer Jacket Color: Dark gray w/white lettering
  • Outer Diameter: 0.393" (10.0 mm)
  • UL: CL2
  • CSA: C(UL) CL2
