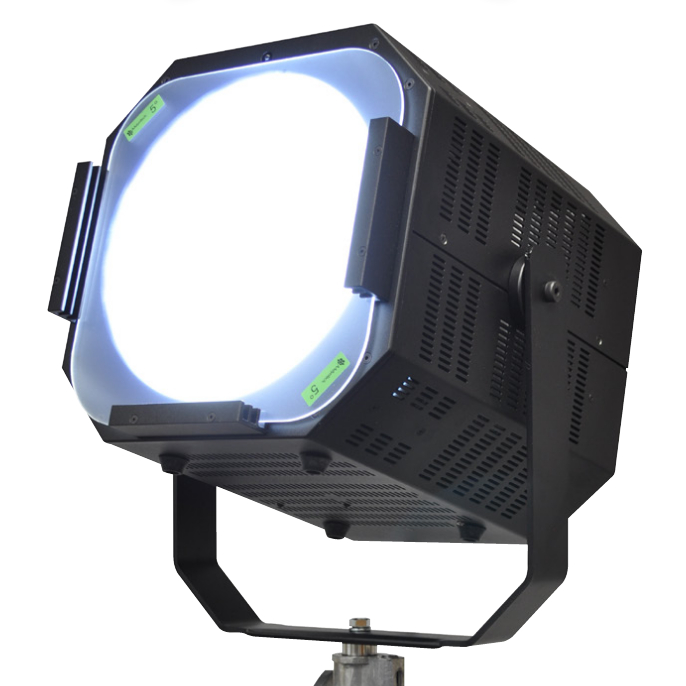

AADYN TECHNOLOGY, LLC Punch Plus
5600K LED Fixture

OUR PART #:  PCH-RDM-004

The AAdynTech Punch Plus is the most powerful daylight-balanced white light professional LED fixture available today.
Learn More
Similar Products

The AAdynTech Punch Plus is the most powerful daylight-balanced white light professional LED fixture available today. The fixture delivers an output of 6,000 fc at 10 feet, comparable to a 2,500 watt HMI, while consuming less than 5 amps of power. The Punch Plus is self-contained with a universal power supply and, unlike traditional HMI’s, the need for heavy and expensive head cables, ballasts or spare lamps is eliminated, dramatically reducing transport weight. Crew and talent safety is always a concern and the Punch Plus generates so little heat and can be held with bare hands, and harmful UV or IR emissions are virtually eliminated. Instant ‘ON’ ensures no warm-up wait time on set. The Punch Plus Daylight is also available as the Punch Plus RDM with a built-in Wireless DMX/RDM Receiver.

Optical efficiency allows for a single light source eliminating multiple shadows. Quick change lenses are included to adjust the beam angle for very narrow, narrow, medium or flood while maintaining a flat even field. The UIM Digital Remote provides precise control over dimming with user selectable variable dimming curves, a smart lamp hour counter, multiple memory recordings and a host of other features including strobe and lighting effects. A heavy-duty yoke is provided. Accessory options are available; barn doors, ATA Mil-spec weather-proof road cases, speed rings, light banks, filters and more.

AAdynTech Punch Plus Features:

  • Brighter than a 2,500 watt HMI
  • 6,000 foot candle output at 10 feet
  • 5600K CCT
  • Draws only 4.8 amps at full output
  • Auto range voltage – 100/277 VAC – 50/60Hz
  • Up to 90% energy savings
  • Precise brightness control with variable dimming curve
  • Single light source eliminates multiple shadows
  • Flicker-free up to 12,000 fps
  • No heat generation – operates cool to the touch
  • Douse button (momentary off)
  • Included 5°, 15°, 30°, 55° lenses to vary beam angle
  • No head cables, ballast or spare lamps
  • Built-in digital User Interface Module (UIM) control
  • Recalibration countdown hour ‘smart’ meter
  • Full DMX control with DMX loop-thru
  • 5-pin XLR DMX In/Out & PowerCon AC Cable
  • Programmable multiple lightning and strobe effects
  • Multiple user memory storage with recall
  • 2 year warranty on fixture
  • Operating temperature at  -4° F to 122° F / -20cto +50c
  • Certified UL, ETL, CSA, CE & RoHS compliant
  • Wireless DMX/RDM control

AAdynTech The Punch Plus Specifications:

  • Control: UIM, Wired and Wireless DMX/RDM
  • Source: LED, 5600°K
  • Life Expectancy: 60,000 Hours
  • Cooling: Passive/Active
  • Mounting: Junior Pin/28mm Spigot
  • Certifications: ETL, UL, CSA, CE and RoHS Compliant
  • Dimensions (LxWxH): 17"x 18.5"x 20.3" (431.4 x 468,.9x 515.5 mm)
  • Weight: 48.4 lbs (22 kg)
  • Power:
    • Input Voltage: 100-277 Vac
    • Input Freq: 50/60 Hz
    • Input Current:
      • 4.87 Amp at 120V
      • 584.4 W at full
    • Connection: PowerCon Twist Lock connector
Digital User Interface Remote Control for Punch Plus
AADYN TECHNOLOGY, LLC HUR-UIM-002 Digital User Interface Remote Control for Punch Plus
This extends the Punch Plus built in user interface with a 12 foot cable so the fixture can be controlled from a distance. It performs exactly the same as the built in User Interface Module with DMX assignments, special lightning effects ...
360.00 400.00 10
Usually ships in 7-14 business days.
Need it sooner? Call us!
Free Shipping Available
Narrow 15° Hard Gel Lens for Punch Plus
AADYN TECHNOLOGY, LLC PCH-LEN-015 Narrow 15° Hard Gel Lens for Punch Plus
Four unbreakable, holographic lenses come with every new AAdynTech fixture to vary the beam spread: very narrow-5°, narrow-15°, medium-30°, wide-55°. This version, the 15° lens is specifically designed for each size fixture to create ...
90.00 100.00 10
Usually ships in 7-14 business days.
Need it sooner? Call us!
Very Narrow 5° Hard Gel Lens for Punch Plus
AADYN TECHNOLOGY, LLC PCH-LEN-005 Very Narrow 5° Hard Gel Lens for Punch Plus
Four unbreakable, holographic lenses come with every AAdynTech fixture to vary the beam spread: very narrow-5°, narrow-15°, medium-30°, wide-55°. This version, the 5° lens is specifically designed for each size fixture to create a ...
90.00 100.00 10
Usually ships in 7-14 business days.
Need it sooner? Call us!
Medium, 30° Hard Gel Lens for Punch Plus
AADYN TECHNOLOGY, LLC PCH-LEN-030 Medium, 30° Hard Gel Lens for Punch Plus
The medium 30° hard gel lenses are specifically designed for AAdynTech's LED fixtures. This version, the 30° lens is intended to create a medium looking light with a softer look for close up shots. Other lenses in this series ...
90.00 100.00 10
Usually ships in 7-14 business days.
Need it sooner? Call us!
Wide 55° Hard Gel Lens for Punch Plus
AADYN TECHNOLOGY, LLC PCH-LEN-055 Wide 55° Hard Gel Lens for Punch Plus
This wide 55° lens is specifically designed for AAdynTech's LED fixtures. The 55° lens is intended to create a very soft beam of light for close up shots; and a Chimera light box can also be used on every fixture to soften the ...
90.00 100.00 10
Usually ships in 7-14 business days.
Need it sooner? Call us!
1/4 CTO Hard Gel Filter for Punch Plus
AADYN TECHNOLOGY, LLC PCH-14-CTO 1/4 CTO Hard Gel Filter for Punch Plus
The 1/4 CTO hard gel filter for Punch Plus has been developed for the low heat output of LED fixtures and will last a long time. It is designed to facilitate a better color match between LED technology and HMI’s.
63.00 70.00 10
Usually ships in 7-14 business days.
Need it sooner? Call us!
1/4 Minus Green Hard Gel Filter for Punch Plus
AADYN TECHNOLOGY, LLC PCH-14-MG 1/4 Minus Green Hard Gel Filter for Punch Plus
The 1/4 Minus Green hard gel filter from AAdynTech has been developed for the low heat output of LED fixtures and will last a long time. It is designed to facilitate a better color match between LED technology and ...
63.00 70.00 10
Usually ships in 7-14 business days.
Need it sooner? Call us!
Carry Bag for Lenses and Filters
AADYN TECHNOLOGY, LLC Punch Plus Scrim Bag Carry Bag for Lenses and Filters
This high quality scrim bag from AAdynTech protects and transports all lenses and filters for the AAdynTech Punch Plus LED fixture.
54.00 60.00 10
Usually ships in 7-14 business days.
Need it sooner? Call us!
