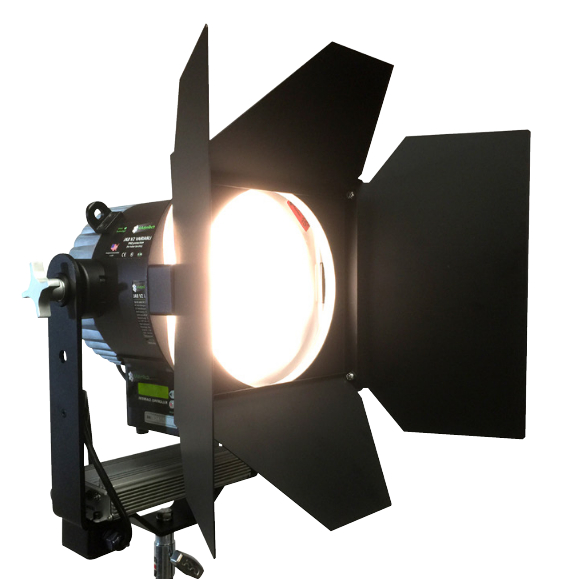

AAdynTech JAB V2 Variable 3000K to 6000K Adjustable Light Fixture

OUR PART #: JAB-VAR-004 MFR #: JAB-VAR-004

Copied to clipboard

The JAB V2 Variable from AAdynTech has an adjustable color temperature range of 3,000°K to 6,000°K and develops an output of 2,100 fc at 10 feet. ...Read more

AAdynTech JAB V2 Variable 3000K To 6000K Adjustable Light Fixture Image 1
4oYLIFFV5Fc?rel=0
1 Video
AAdynTech JAB V2 Variable 3000K To 6000K Adjustable Light Fixture
Our Price: $4,500.00
List Price: $5,000.00
You save 10%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The JAB V2 Variable from AAdynTech has an adjustable color temperature range of 3,000°K to 6,000°K and develops an output of 2,100 fc at 10 feet. Most remarkable is the Variable draws only 1.78 amp of power at full output, and can be operated at 28.8v DC battery power all day long. Like all AAdynTech fixtures, the Variable generates no heat or harmful UV or IR emissions, is self-contained with an auto-ranging universal power supply requiring no ballast, head cables or lamps, and instant ON ensures no warm-up wait time on set.

Optical efficiency provides a single light source eliminating multiple shadows. The Variable comes equipped with four quick change lenses to vary the beam angle for spot, medium or flood while maintaining a flat, even field of light. There are several control possibilities with the Variable; built in User Interface Module (UIM) with Kelvin temperature display, DMX with DMX loop-thru, or via the optional corded UIM Controller with Kelvin temperature display. A heavy-duty yoke is provided and a full set of accessory options are available; barn doors, ATA Mil-spec road cases, speed rings, light banks, filters and more. Several Kit versions coupled with various accessories and housed in a rugged Mil-Spec waterproof molded rolling case are also available. When your production requires precise color temperature control and reliable even lighting; the JAB V2 Variable by AAdynTech has no peer.

AadynTech The JAB V2 Variable Features:

  • 2,100 foot candle output at 10 feet
  • Adjustable 3000°K to 6000°K color temperature
  • Accurate color temperature readout on UIM
  • Draws only 1.78 amp at full output
  • Auto range voltage – 100/277 VAC – 50/60Hz
  • Up to 90% energy savings
  • Precise brightness control with no color shift
  • Single light source eliminates multiple shadows
  • No heat generation – operates cool to the touch
  • Douse button (momentary off)
  • Included 5°, 15°, 30°, 55° lenses to vary beam angle
  • No head cables, ballast or spare lamps
  • Optional corded digital User Interface Module (UIM) control
  • Recalibration countdown hour ‘smart’ meter
  • Full DMX control with DMX loop-thru
  • 5-pin XLR DMX In/Out
  • Programmable multiple lightning and strobe effects
  • Multiple user memory storage with recall
  • 2 year warranty on fixture
  • Operating temperature at -4° F to 122° F (-20°c to +50°c)
  • Certified UL, ETL, CSA, CE & RoHS compliant
  • USA & International Patent Pending

AadynTech The JAB V2 Variable Specifications:

  • Control: UIM, DMX, Optional corded UIM
  • Source: LED, 3,000K to 6,000°K
  • Cooling: Passive
  • Mounting: Baby Pin or Junior
  • Certifications: ETL, UL, CSA, CE and RoHS Compliant
  • Dimensions (LxWxH): 13.3"x 12.9"x 21.8" (339x 326.5x 554.9mm)
  • Weight: 19.5 lbs (8.9 kg)
  • Power:
    • Input Voltage:
      • 100-277v AC
      • Battery (30v DC)
    • Input Freq: 50/60 Hz
    • Input Current:
      • 1.78 Amp at 120V
      • 120 watts at full
    • Connection: US NEMA 5-15
