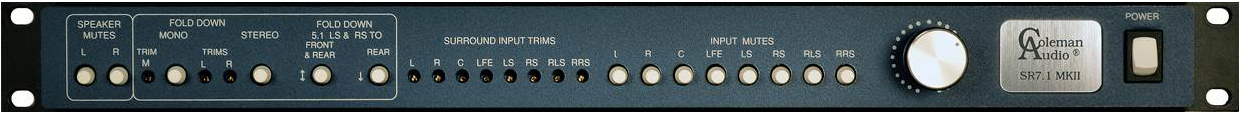

Coleman Audio SR7.1MKII
Surround Level Control

OUR PART #:  SR7.1MKII

The Coleman Audio SR7.1MKII gives  precise level control for eight balanced audio signals. Fold down capabilites for stereo and mono and two 5.1 formats.
Learn More
Our Price: $1,891.50
List Price: $1,940.00
Write the first review.
Coleman Audio SR7.1MKII
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Coleman Audio SR7.1MKII gives  precise level control for eight balanced audio signals. Fold down capabilites for stereo and mono and two 5.1 formats. Indiviual input mutes isolate surround speakers, L and R speaker mutes isolate the stereo fold down speakers. There are two internal switches, one for the mono fold down to be routed to either L and R or the center speaker and one which allows the LFE signal to be included in the stereo fold down so the SR7.1MKII could be used as a summing box too.

Coleman Audio SR7.1MKII Features:

  • 47 position stepped attenuator
  • One input DB25 wired for 8 audio channels
  • One output DB25 wired for 8 audio channels
  • Fold down for two 5.1 formats
  • Fold down for stereo and mono
  • Individual input mutes and level trims
  • L and R speaker mutes for stereo fold down
  • All inputs and outputs are balanced
