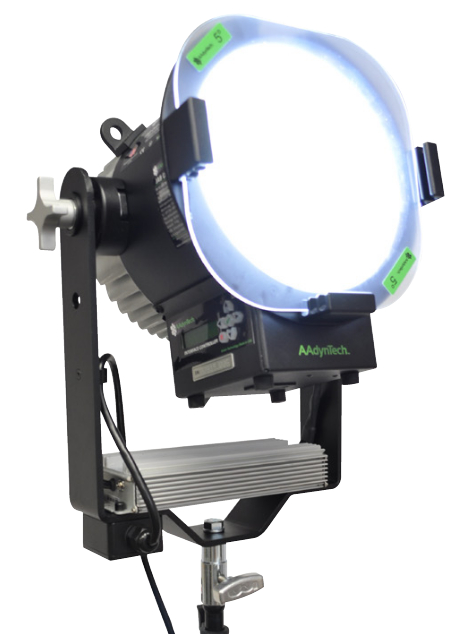

AADYN TECHNOLOGY, LLC JAB Daylight
5600K Light Fixture

OUR PART #:  JAB-DAY-004

The JAB Daylight LED fixture in AAdynTech’s JAB Series lineup is one of the most sought after lighting fixtures on  the market for good reason.
Learn More
Our Price: $4,275.00
List Price: $4,750.00
You save 10%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

AADYN TECHNOLOGY, LLC JAB Daylight
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The JAB Daylight LED fixture in AAdynTech’s JAB Series lineup is one of the most sought after lighting fixtures on  the market for good reason. Whether for Broadcast ENG remote field production, fixed studio installation, live sports  coverage, video shoots or film, the JAB Daylight provides a wealth of practical benefits and features ideally suited  to a wide range of lighting applications. Weighing in at only 19 lbs., its small compact footprint allows for an ease  of transport for on-the-go lighting assignments. An unmatched output of better than 1,850 foot-candles at 10 ft. combined with a maximum current draw of a mere 1.77 amps at full brightness means savings up to 90% A/C energy usage. If that weren’t enough; the fixture can be operated on 28.8v DC battery power for instances where conventional A/C supply is problematic or non-existent.

AadynTech The JAB Daylight 5600K Light Fixture Features:

  • 2,500 foot candle output at 10 feet
  • 5600°K color temperature
  • Draws only 1.77 amp at full output
  • Auto range voltage – 100/277 VAC – 50/60Hz
  • Up to 90% energy savings
  • Precise brightness control with no color shift
  • Single light source eliminates multiple shadows
  • No heat generation – operates cool to the touch
  • Douse button (momentary off)
  • Included 5°, 15°, 30°, 55° lenses to vary beam angle
  • No head cables, ballast or spare lamps
  • Optional digital User Interface Module (UIM) control
  • Recalibration countdown hour ‘smart’ meter (with UIM)
  • Full DMX control w/ DMX loop-thru
  • 5-pin XLR DMX In/Out
  • Programmable multiple lightning and strobe effects (with UIM)
  • Multiple user memory storage with recall (with UIM)
  • 2-year warranty on fixture
  • Operating temperature at -4° F to 122° F (-20c to +50c)
  • Certified UL, ETL, CSA, CE & RoHS compliant
  • USA & International Patent Pending

AadynTech The JAB Daylight 5600K Light Fixture Specifications:

  • Control: Local, UIM, DMX, Optional corded UIM
  • Source: LED, 5600°K
  • Life Expectancy: 60,000 Hours
  • Cooling: Passive
  • Mounting: Baby Pin or Junior
  • Certifications: ETL, UL, CSA, CE and RoHS Compliant
  • Dimensions (LxWxH): 13.3"x 12.9"x 21.8" (339 x 326.5 x 554.9 mm)
  • Weight: 19.5 lbs (8.9 kg)
  • Power:
    • Input Voltage:
      • 100-277v AC
      • Battery (30v DC)
    • Input Freq: 50/60 Hz
    • Input Current:
      • 1.77 Amp @120V
      • 212 Watts @ full
    • Connection: US NEMA 5-15
