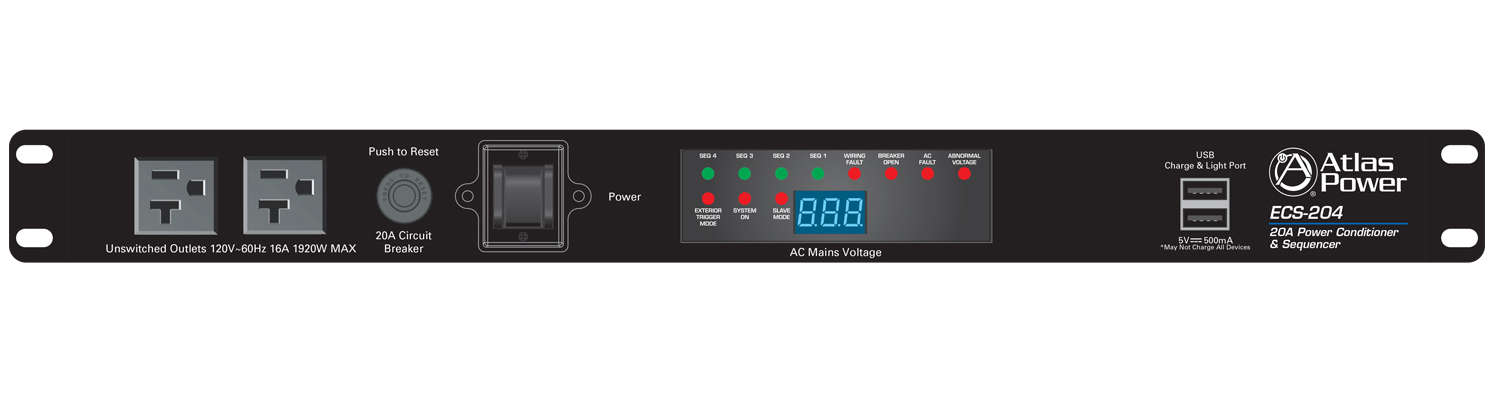

Atlas IED ECS-204 20A Power Conditioner & Sequencer

The Atlas Sound ECS-204 is a 20 amp AC Power Sequencer and Conditioner. The ECS-204 has been designed to meet most installation requirements for AC power distribution and equipment power protection. The 20A compact 1 RU unit features four internal sequential timing sections, three on the unit and one to trigger an external device. All can be activated via the unit locally or remotely. Front panel activation is via a momentary switch, while rear activation can be accomplished via a remote momentary switch, latching switch, or by 5-24VDC. AC Mains Voltage can be monitored via the front panel from the precision Digital Volt Meter. The ECS-204 has incorporated dual front panel USB charge ports that can be used to charge devices such as cell phones or music players or the charge port also supports an optional USB gooseneck lamp. The rear of the rack can be illuminated by the optional Atlas Power 16" gooseneck LED lamp (AP-GNL18) connected via an XLR style socket.

Atlas Sound Power Sequencer Features:

• Nine Total 20A Outlets
• Six Rear Panel Outlets Sequenced in 3 Stages
• One Rear Panel Unswitched Outlet
• Two Front Panel Unswitched Outlets
• Sequenced Output Trigger
• Radio Frequency (RFI) and Electromagnetic Interference (EMI) Filters
• Dual Clamping Spike & Surge Suppression, DCS Circuitry
• Front Panel Digital AC Mains Voltmeter
• Emergency Power Down (EPD)
• Extreme Voltage Shutdown (EVS)
• External Switch Sequence Trigger Activation, Momentary or Latching Switch
• External DCV Sequence Trigger Activation 5-24VDC
• Circuit Breaker Protection @ 20 Amps Indicated by “Breaker Open” Indicator
• AC Fault, Wiring Fault, and Abnormal Voltage Indicators
• Dual Front Panel USB Charge Ports for Charging USB Devices or Gooseneck Style Lamps
• Rear Panel XLR Receptacle for the Optional AP-GNL Gooseneck Lamp
• Front Panel Mains Power Switch Security Cover
• AC Power Cord Retainer

Atlas Sound Power Sequencer Specifications:

• Load Rating: 20A
• Power Consumption: 12 Watts
• Operating Voltage: 102 - 132VAC
• Minimum Spike Clamping Voltage: 460 VRMS at 3000A
• Maximum Spike Clamping Voltage: 6000V
• Spike Clamping Voltage at 100A: 1250Vp for 20µs
• Maximum Surge Current: 6500A
• Energy Rating: 2000 Joules
• Temperature Range: 5° to 35°C
• Humidity Range: 5% to 95% R.H.
• Height: 1.75" (44.45mm)
• Width: 19" (482.6mm)
• Depth: 8.5" (215.9mm)
• Weight: 10 lbs. (4.53kg)
