Product Overview

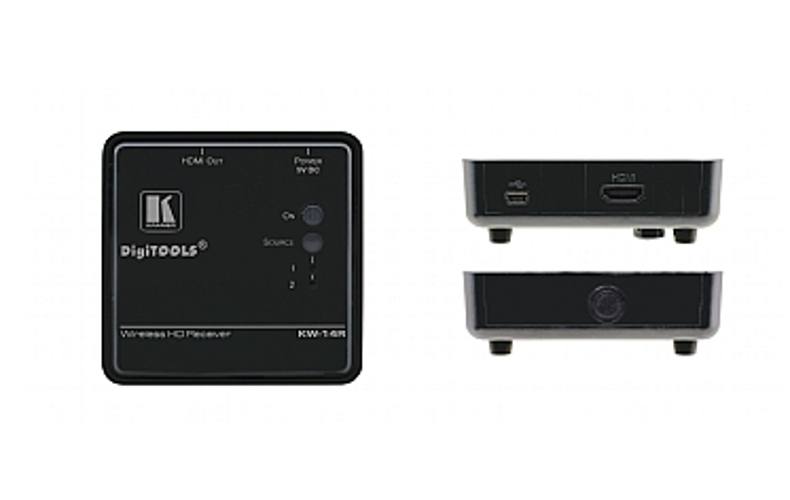

The KW-14T and KW-14R are a high-definition, wireless, HDMI transmitter/receiver pair for indoor use. Up to four KW-14R receivers can receive from one KW-14T transmitter and up to three KW-14T transmitters can be paired with one KW-14R receiver. The KW-14T and KW-14R pair comes pre-associated.
Features
- Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel), Deep Color up to 12-bit
- Secure Link - Uses AES-128 bit encryption
- Connection Capacity - Up to four receivers can receive from one transmitter simultaneously; up to three transmitters associated with one receiver at any given time
- Transmission Range - Up to 30m (100ft) including through walls and furniture
- Automatic Frequency Selection - Selects the most suitable frequencies to prevent RF interference
- Auto EDID Adjustment - To allow multi-screen support
- IR Remote Control - Enables the OSD menu to be displayed on the output display
- OSD (On Screen Display) - For simplified setup and configuration
- HDCP Compliant - HDCP sources are supported only when all connected displays support HDCP
- Zero Latency
- Automatic Sleep Mode - After three minutes when no input or link is detected
- CEC Support
Specifications
- Input: 1 HDMI connector (KW-14T), internal antenna (KW-14R)
- Output: 1 IR on a 3.5mm mini jack, internal antenna (KW-14T), 1 HDMI connector (KW-14R)
- Video Resolution: Up to 1080p @60Hz; 8, 10, or 12-bit color depth and VESA up to 1920 x 1080 @60Hz
- Formats: RGB and YCbCr digital video
- Maximum Data Rate: 6.75Gbps (2.25Gbps per channel)
- Maximum Pixel Clock: 148.5MHz
- Audio Formats: PCM, Dolby Digital 2/0, Dolby Digital 2/0 Surround, Dolby Digital 5.1, Dolby Digital Surround EX, DTS 2-channel, DTS Digital Surround 5.1, DTS 96/24
- Audio Rate: Digital audio from the HDMI input up to 6Mbps
- RF Communication Frequency: 5.19 to 5.795GHz (In Japan operation is limited to the lower bands 5.15 to 5.25GHz, in Israel operation is limited to 5.15 to 5.35GHz)
- Transmission Power:
- Standards: HDMI with Deep Color, x.v.Color™, 3D, CEC; HDCP 2.0—works with sources that support HDCP repeater mode, DVI 1.0
- RF Communication Frequency: 5.19 to 5.795GHz (In Japan and Israel operation is limited to the lower bands; 5.15 to 5.25GHz)
- Unobstructed Transmission Range: 100ft (30m) (KW-14T), 100ft (30m) (KW-14R)
- Power Consumption: 5V DC 1A (KW-14T), 5V DC 1.2A (KW-14R)
- Operating Temperature: 32° to 104°F (0° to +40°C)
- Storage Temperature: –40° to 158°F (–40° to +70°C)
- Humidity: 10% to 90%, RHL non-condensing
- Cooling: Convection, vented
- Enclosure Type: Plastic
- Dimensions (WxDxH): 3.15" x 4.02" x 1.42" (8.0cm x 10.2cm x 3.6cm) (KW-14T), 3.74" x 3.747" x 1.34" (9.5cm x 9.5cm x 3.4cm ) (KW-14R)
- Environmental Regulatory Compliance: Complies with appropriate requirements of RoHS and WEEE
- Vibration: ISTA 1A in carton (International Safe Transit Association)
- Complicance Standards: CE, c-UL, UL
- Emmission Standards: CE, C-tick, FCC Class B, ICES, VCCI, KC
- Included Accessories: Power supply 5V, 2 HDMI cables 0.9m (2.95ft) PN 2518-0101003, 1 IR Emitter cable PN 3300-500135
